Beneteau Oceanis 48 UNbelievable

GENERAL SPECIFICATIONS

ARCHITECT / DESIGNERS

• Naval Architect: Berret Racoupeau Yacht Design

• Interior design: Nauta Design

EC CERTIFICATE

• Category A - 12 persons

• Category B - 14 persons

• Category C - 14 persons

STANDARD SAIL LAYOUT AND AREA

• L.O.A 47’11’’

• Hull length 46’11’’

• L.W.L. 45’7’’

• Beam 15’7’’

• Shallow draft 5’11’’

• Shallow ballast weight 8,948 lbs

• Air draft (max) 69’11’’

• Light displacement 29,313 lbs

• Fuel capacity 53 US Gal

• Freshwater capacity 98 US Gal

• Engine power 75 HP POD 120

• Mainsail (classic) 603 sq ft

• Genoa (105 %) 603 sq ft

• Asymmetric spinnaker 1,400 sq ft

• I 61’6’’

• J 19’11’’

• P 56’8’’

• E 18’3’’

STANDARD EQUIPMENT

CONSTRUCTION

• Design made following European Directive requirements and according to EC certification

• Monolithic hull design in polyester

• Monolithic structural hull liner bonded to the hull

• Injection moulded deck in glass fibre/balsa sandwich, covered with diamond-point non-slip coating

• Deck hull joint bonded and screwed with 1 solid wood toerail

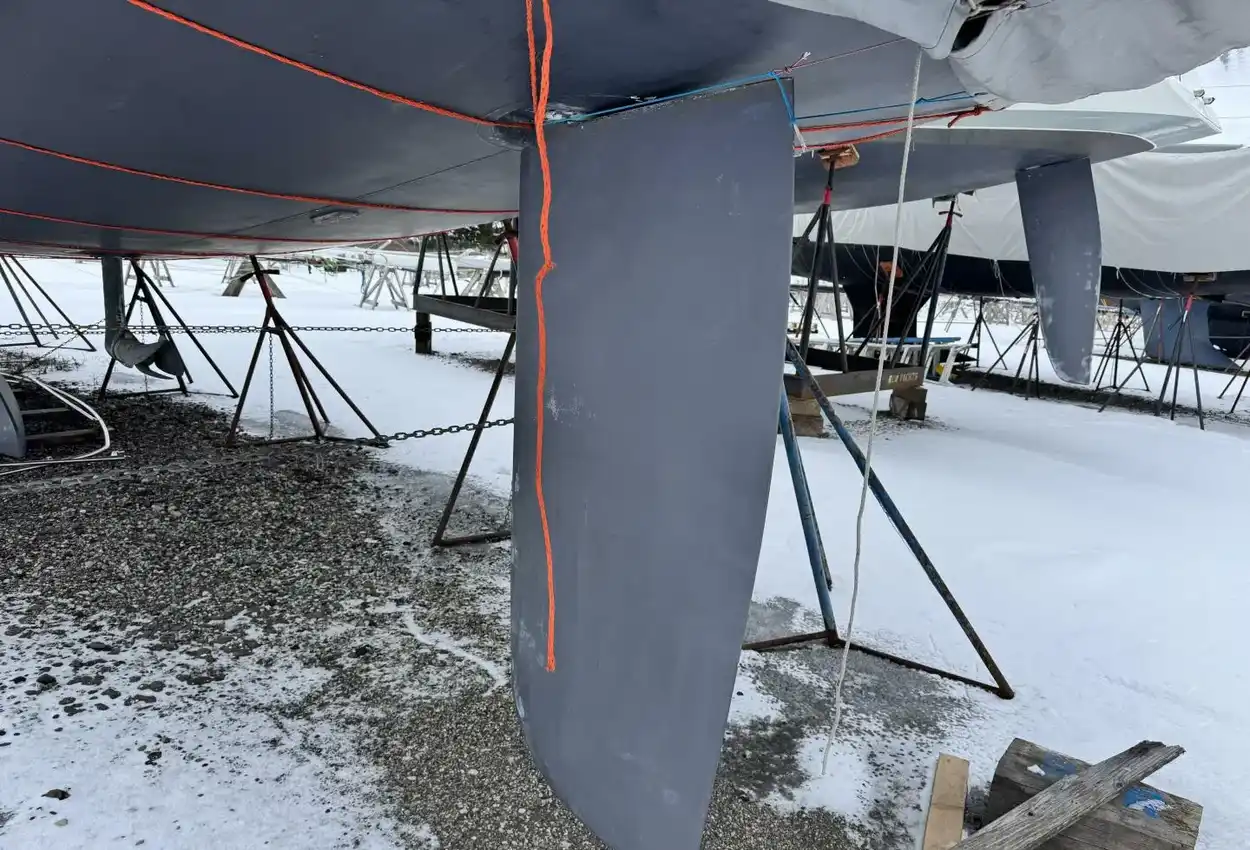

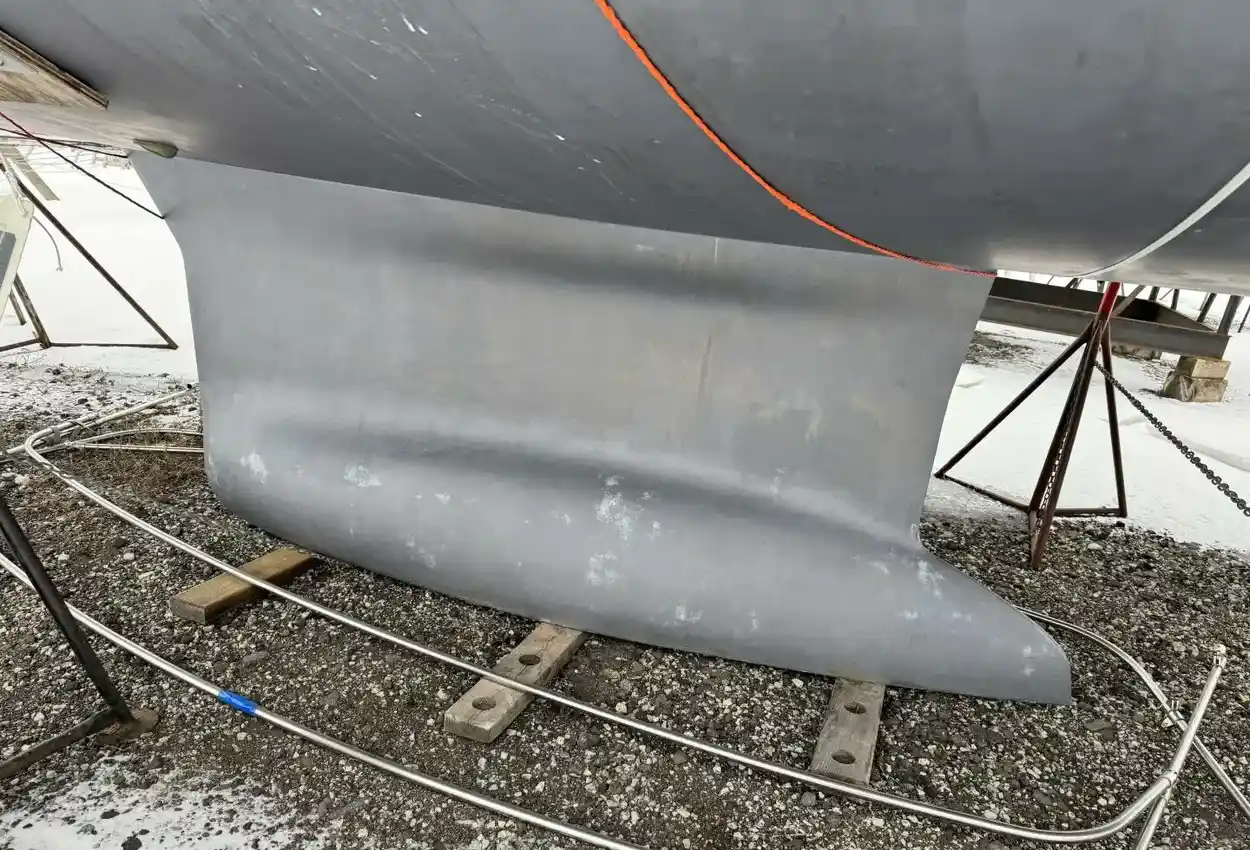

• Cast iron keel fixed with bolts and stainless steel backing plates

• Rudder hung with glass compound stock

• White colored hull - Grey metal hull decoration

RIGGING

• Standard mast 9/10 anodized aluminum installed on the deck, 2 sets of spreaders

• Anodized aluminum boom

• Discontinuous stainless steel standing rigging

• 2 Backstays with turnbuckles

• Rigid boom vang with tackle

• Genoa furling system with drum on the deck

• 2 Blocks fixed on mainsheet arch

• 2 genoa tracks with piston adjusted traveller cars

• 2 Genoa sheet return blocks

• Rigging run back to cockpit (except boom topping lift)

• Complete running rigging: Main halyard, genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Genoa sheets, 2 reefing lines, 1 manual reef

• 8 Line stoppers

• 2 halyard bags

WINCHES

• 2 Self-tailing genoa sheet winches (H60.2 STC)

• 2 Self tailing coachroof winches (H46.2 STC)

• 2 Aluminum winch handles Speed Grip

• 2 Winch handle holders

SAILS

• Furling genoa with UV protective strip

• Semi full batten written sail with slider and roller slider

• System: Lazy Jack and Lazy Bag in Neutral color

MOORING - ANCHORING

• Self-draining chain locker - Clench bolt - Hatch cover

• Stainless steel bow fitting 2 rollers

• 12 V - 1500 W Vertical electrical windlass - Remote control

• 6 Aluminum mooring cleats - Stainless steel dock line protection

SAIL LOCKER

• Access through deck hatch T60

• Stainless steel ladder

• Cubby hole lockers

SAFETY ON DECK

• 1 Open stainless steel forward pulpit

• 2 Stainless steel aft pushpits

• 1 Lifebuoy bracket

• 1 Outboard engine bracket

• 1 Flag pole socket

• Double lifeline and stainless steel stanchions - Gates to port and to starboard in lifeline

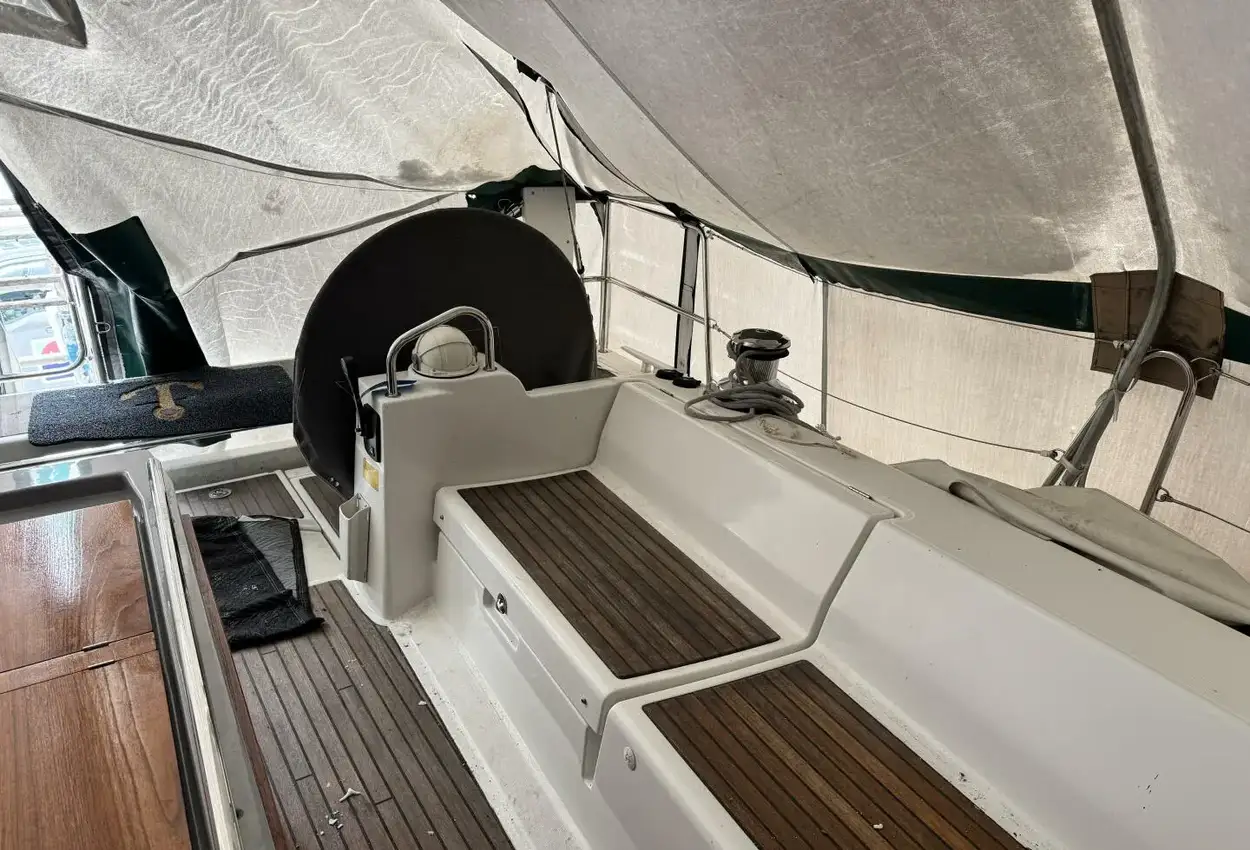

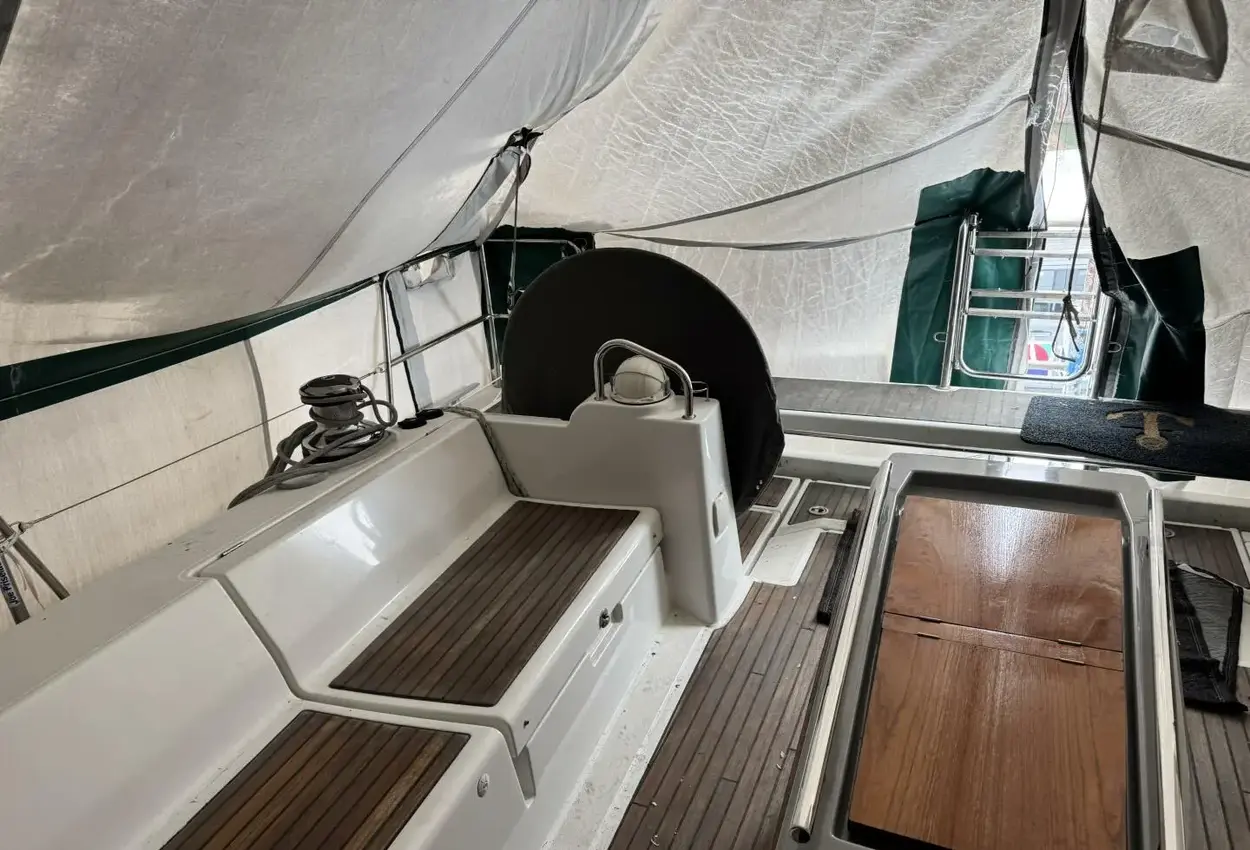

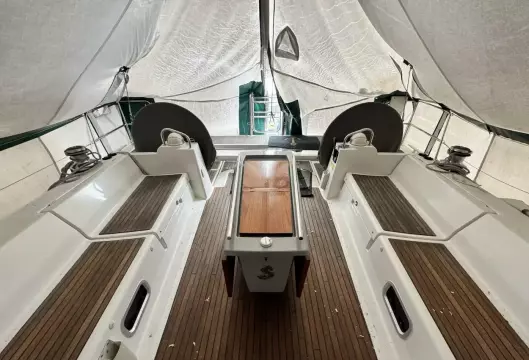

COCKPIT

• Self-draining cockpit

• 2 Cockpit locker

• 2 Lockers in the floor of the cockpit under helm's feet

• 1 Liferaft locker under helm seat (2’7’’ x 1’4’’ x 1’4’’)

• 1 Gas locker for bottle(s) under the port helm seat

• Natural solid wood slatted cockpit benches

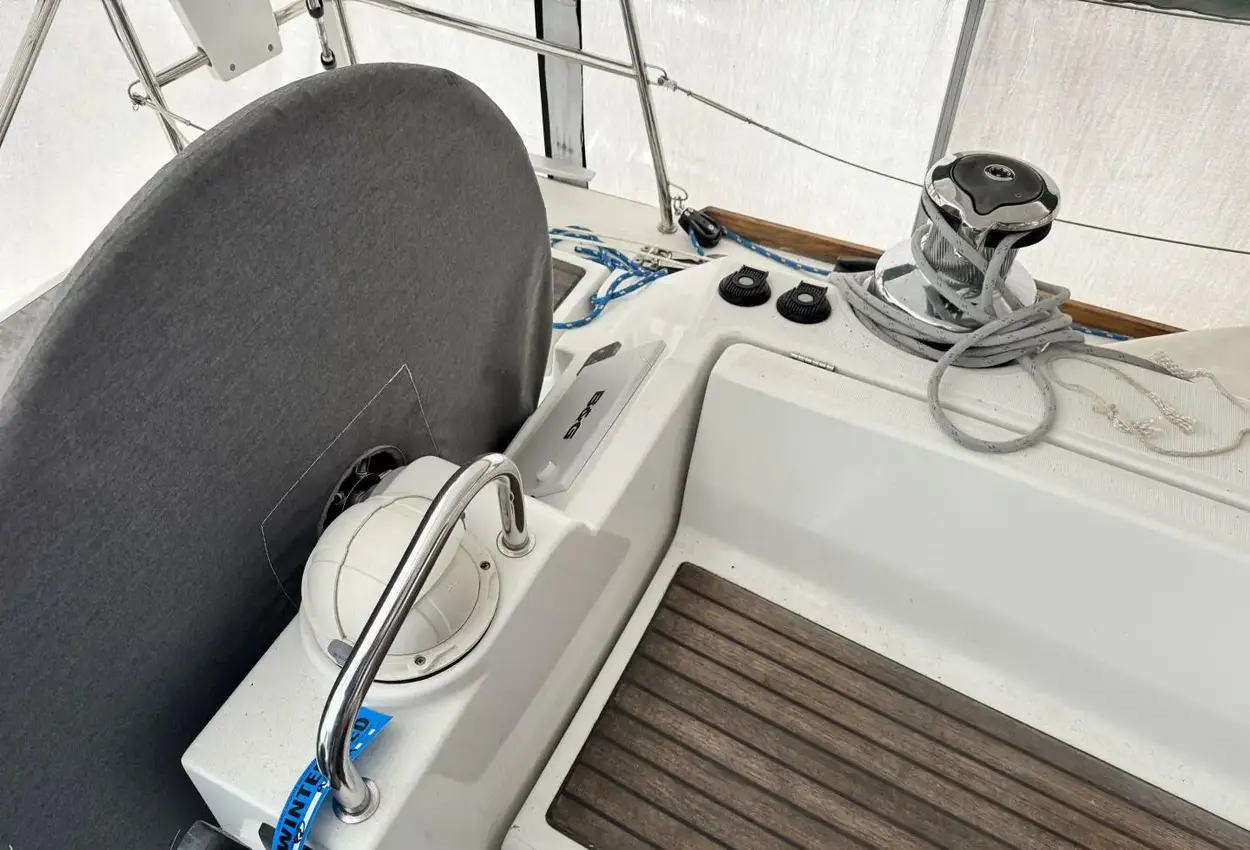

• 2 Steering wheel consoles: Stainless steel steering wheels - 900 mm diameter - leather covered - Steering gear at the helm station - metal cable transmission system - Stainless steel handrail - navigation instrument stand - Glass holder

• 1 Deck hole for access to tiller system + Power supply access hatch

• 1 Emergency Tiller

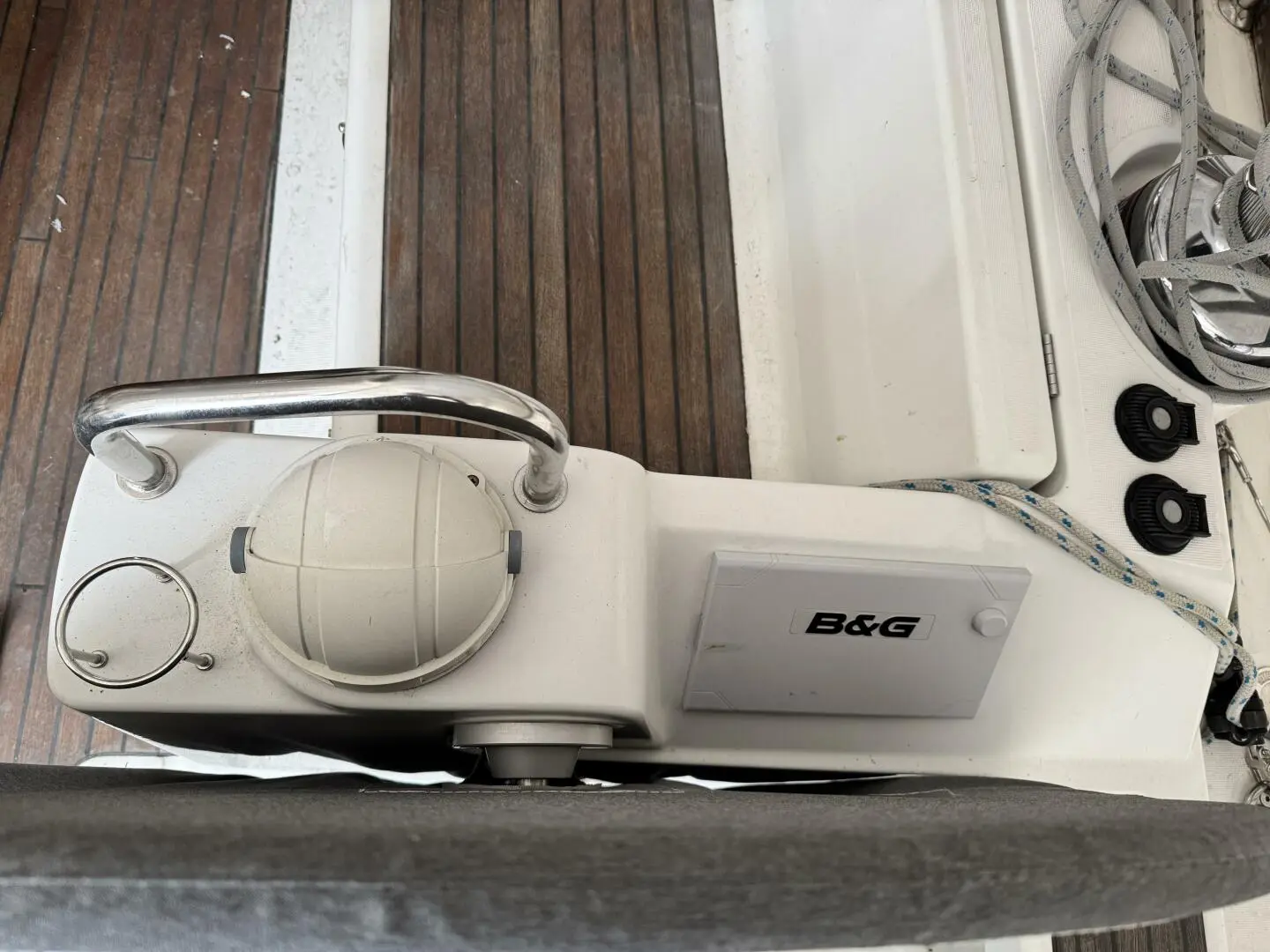

• 2 Steering compass on binaccle

• Portside engine control and control panel

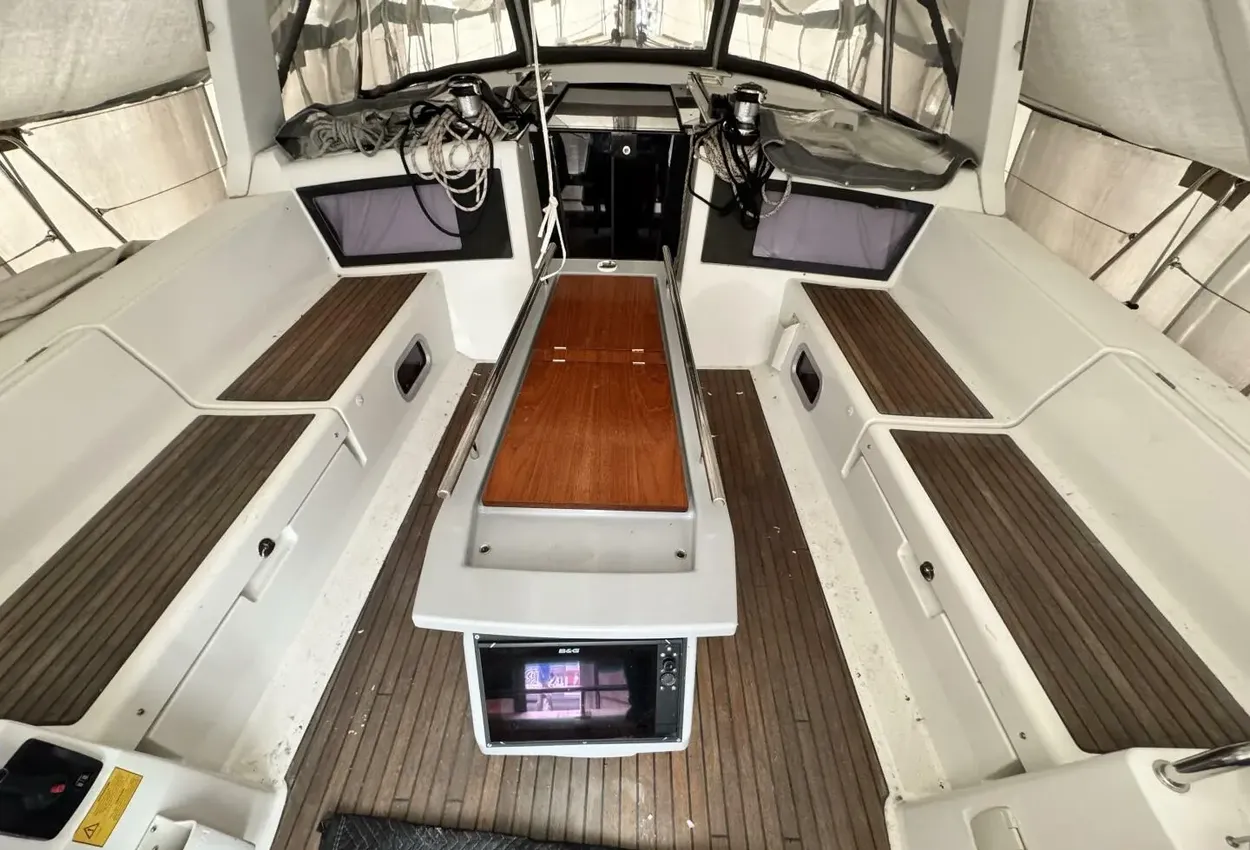

• Polyester cockpit table - 2 flaps - glove boxes - 2 Large storage space - Stainless steel handrail - 12 V socket - lamp with shade

• Cold water cockpit shower hose

• 1 Fixed composite arch - Built-in lighting

• 1 Shore power socket to port

• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA

SWIM DECK / STERN DECK

• Fully opening transom convertible into swim platform (9’4’’ x 2’6’’)

• Electrically controlled opening

• Natural solid wood decking on swim platform

• 1 Stainless steel swim/boarding ladder - solid wood steps - folding

INTERIOR

• Woodwork Alpi Mahogany

• Parquet type laminated floors

• Cloth hull spar ceilings in salon and cabins

• Fabric upholstery

• Marine mattresses in the cabins

COMPANIONWAY

• Headroom: 6’6’’

• Wooden salon companionway with moulded wood hanging steps with nonslip surface

• 2 Stainless steel handrails

SALON

• Headroom: 1,98 m / 6’6’’

• U shaped salon bench - double density foam

• Seating on pantograph - with backrest

• Salon table in only *1 piece - Varnished wood top with inlay – Aluminum legs

• 4 Matching decorative cushions

• Mirror on bulkhead

• Cupboards - Cubby hole lockers and storage along the hull - Storage under bench seats

• Cubbyholes with stainless steel beading

• 2 Panoramic deck house windows with concertina blinds

• 2 Hull portholes with curtain

• 2 Opening portholes on coaming in side windows

• 1 Opening deck hatch with shutter / screen

CHART TABLE - PORT SIDE

• Sliding, can be configured with the armchairs - Placed against the forward bulkhead, against the galley or between the 2 mobile seats

• Table with flap - Moulded wood beading

• Switch panel on bulkhead for access to electrical functions

• Navigation instrument panel (without instruments)

• 1 White reading light / Red

GALLEY - PORT SIDE

• Headroom: 6’3’’

• L-shaped galley with separate sink located below companionway

• Compact grey laminated worktop

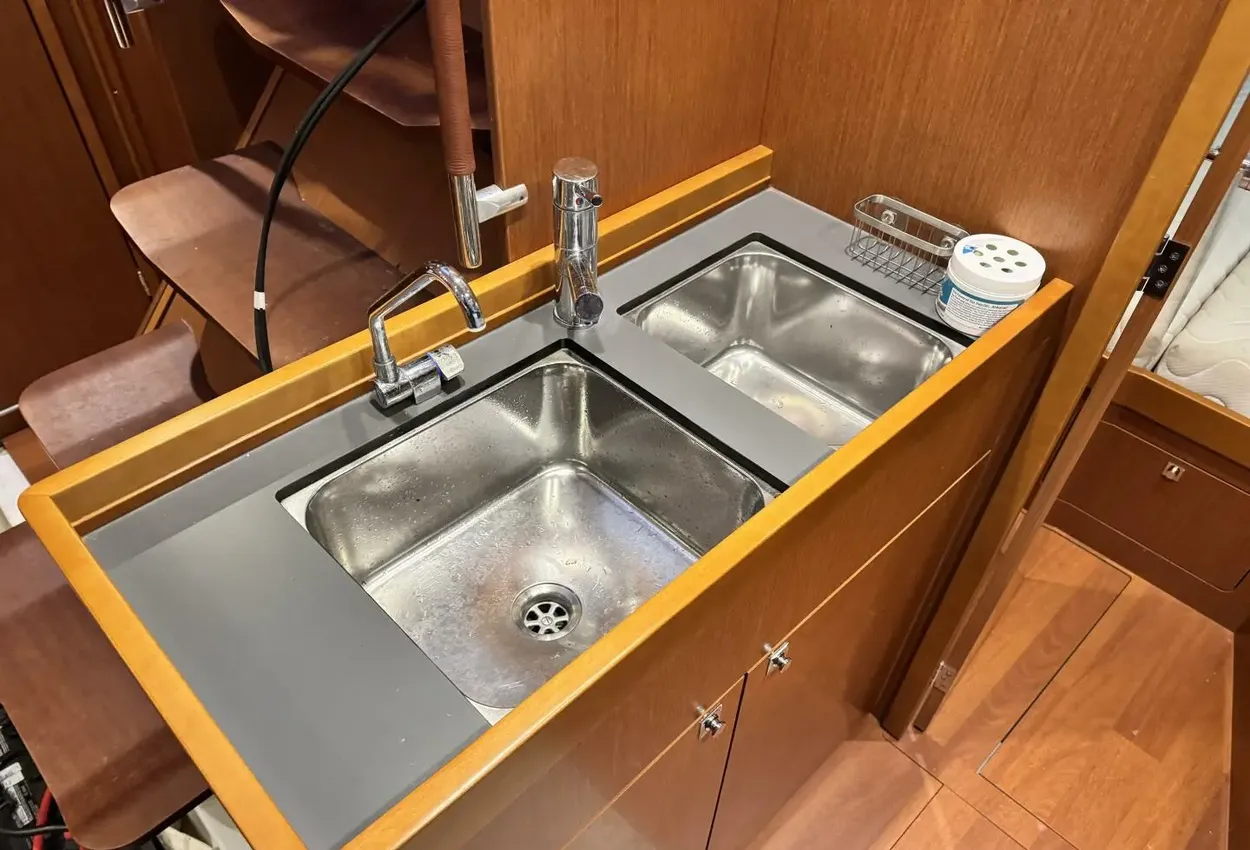

• 1 Stainless steel sink 2 rectangular basins - 1 Mixer tap cold water / hot water, under pressure

• 1 Gas stove 2 burners - Stainless steel oven on mountings - Stainless steel protection handrail

• 1 12 V 26 US Gal, top opening refrigerator

• 1 12 V 34 US Gal, front opening refrigerator

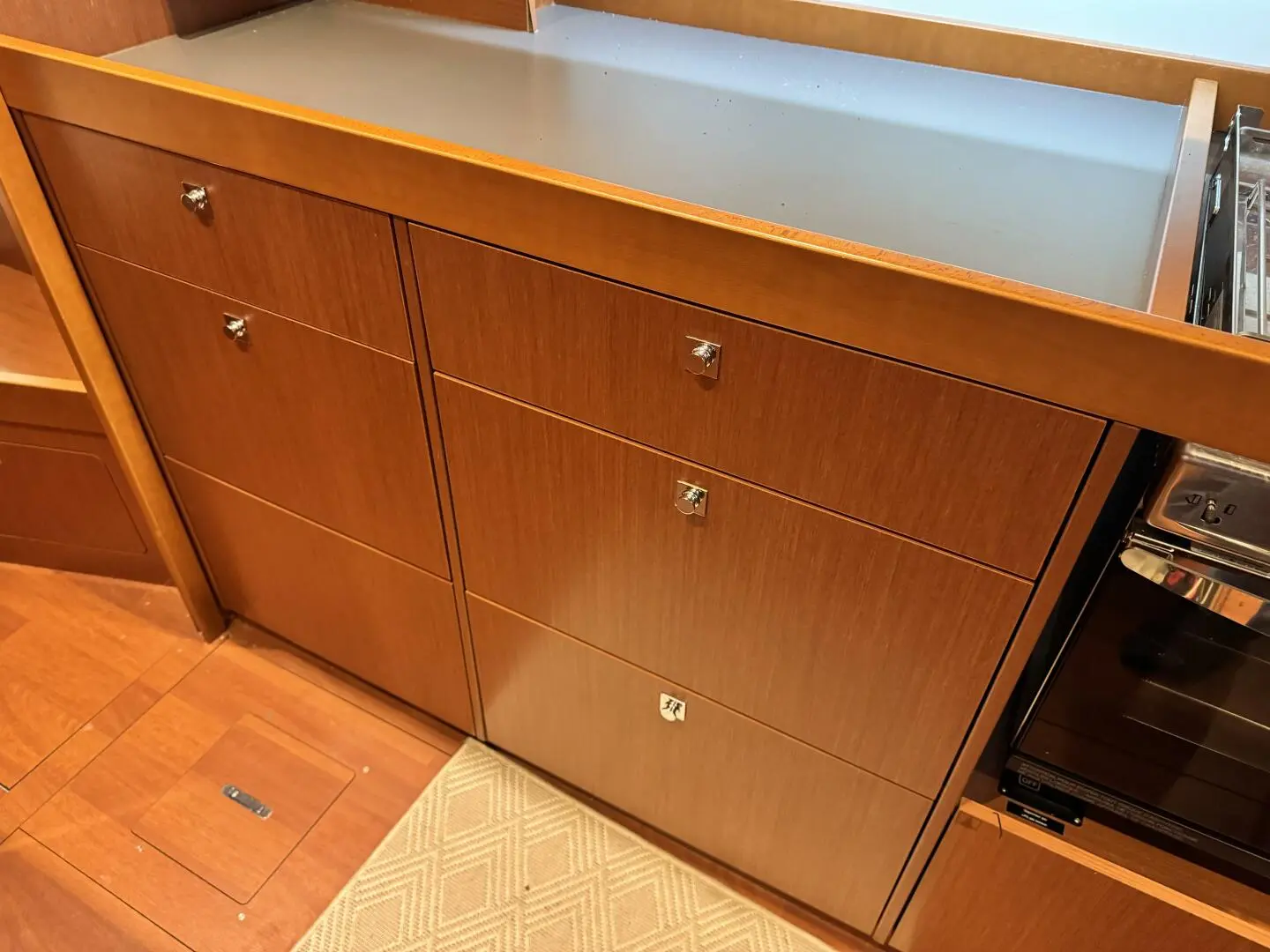

• Fitted cupboards and closed cubbyholes (Shelving, Bin)

• 1 Lower cupboard: 1 Drawer - 2 shelves

• Storage space along the hull

• 2 Opening ports on coaming with curtains on side windows

FORWARD CABIN

• Headroom: 6’4’’

• Central double bed (6’10’’ x 5’1’’ x 3’10’’)

• Hanger closets - Glove box - Cubby hole locker - Lower cupboard – Storage space under bed

• 2 flush deck hatches with blinds / screens

• 2 Hull portholes with curtain

FORE WASHROOM

Completely built in to the cabin with:

TO STARBOARD

• Moulded basin in grey work surface, Mixing tap hot water / cold water

• 1 Washroom storage cabinet

• 1 Mirror

• 1 Glass shower cabin with flush access and stowage on the bulkhead

• 1 flush deck hatch with blind / screen

TO PORT

• Separate WC

• Storage space along the hull

• 1 flush deck hatch with blind / screen

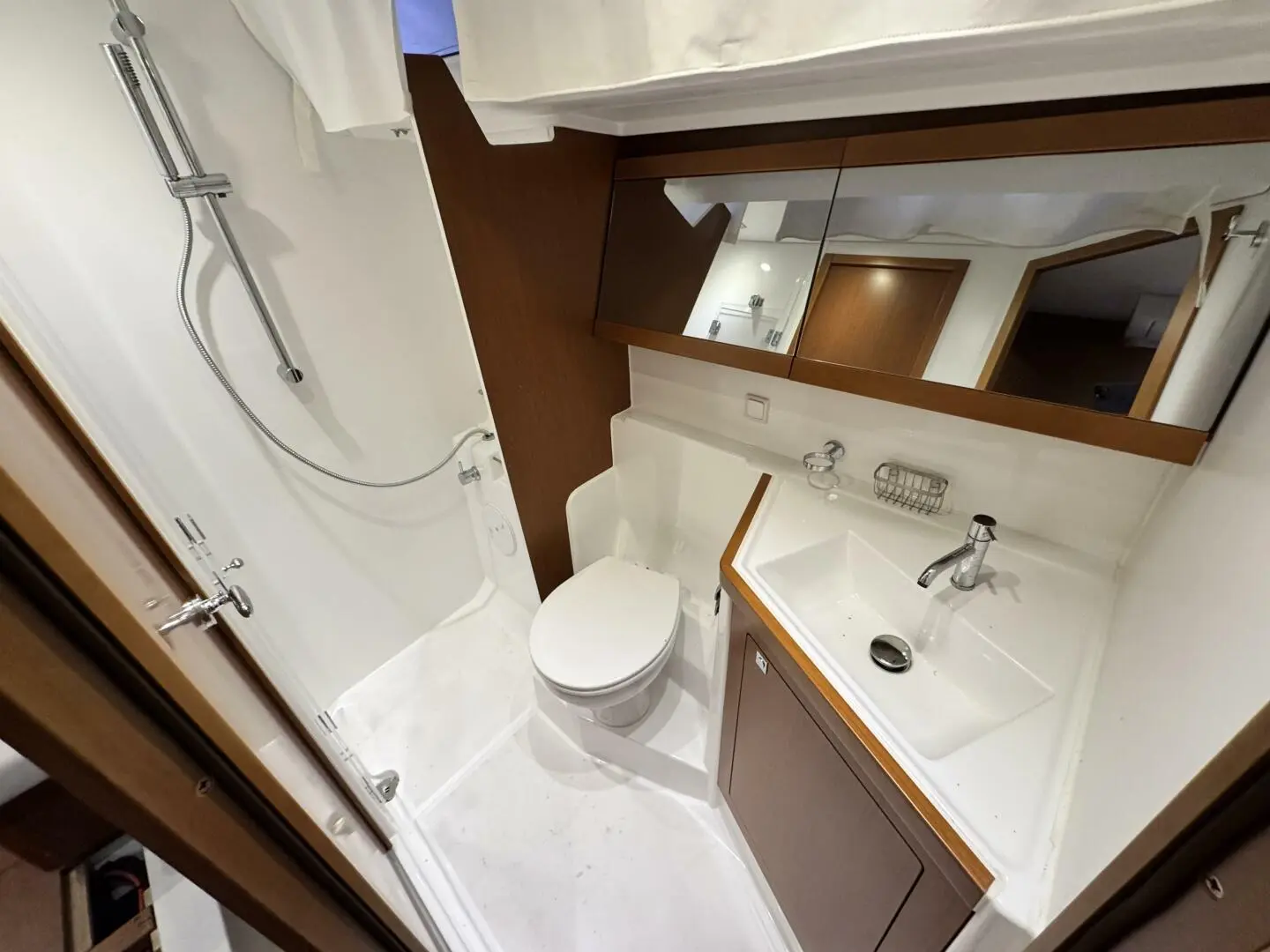

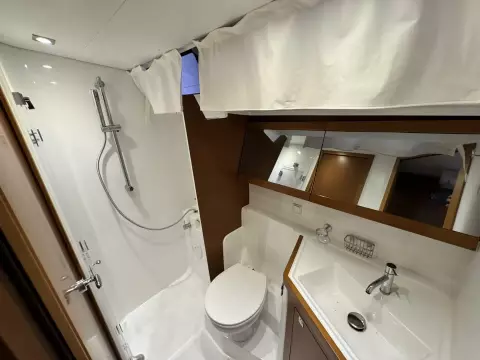

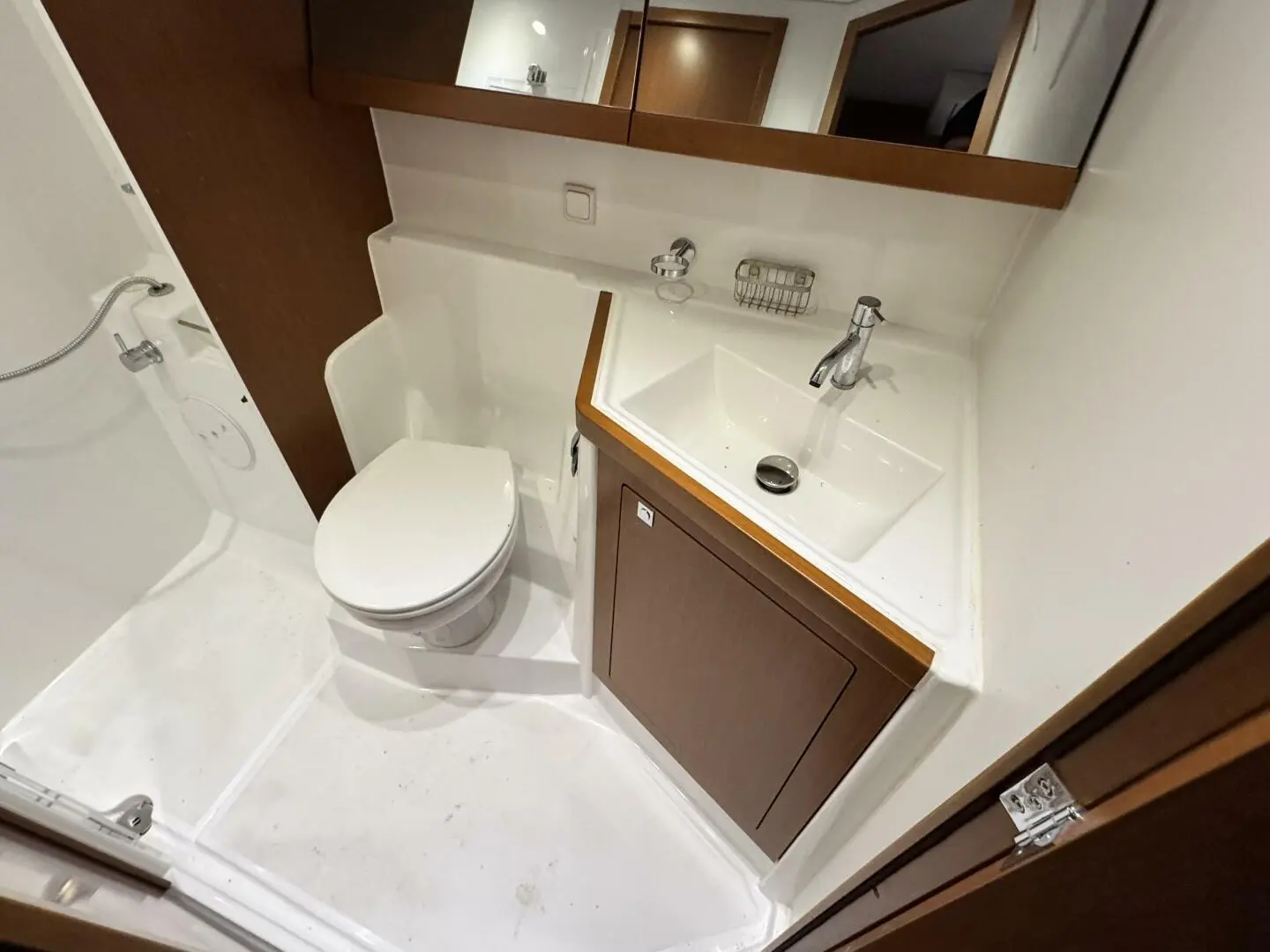

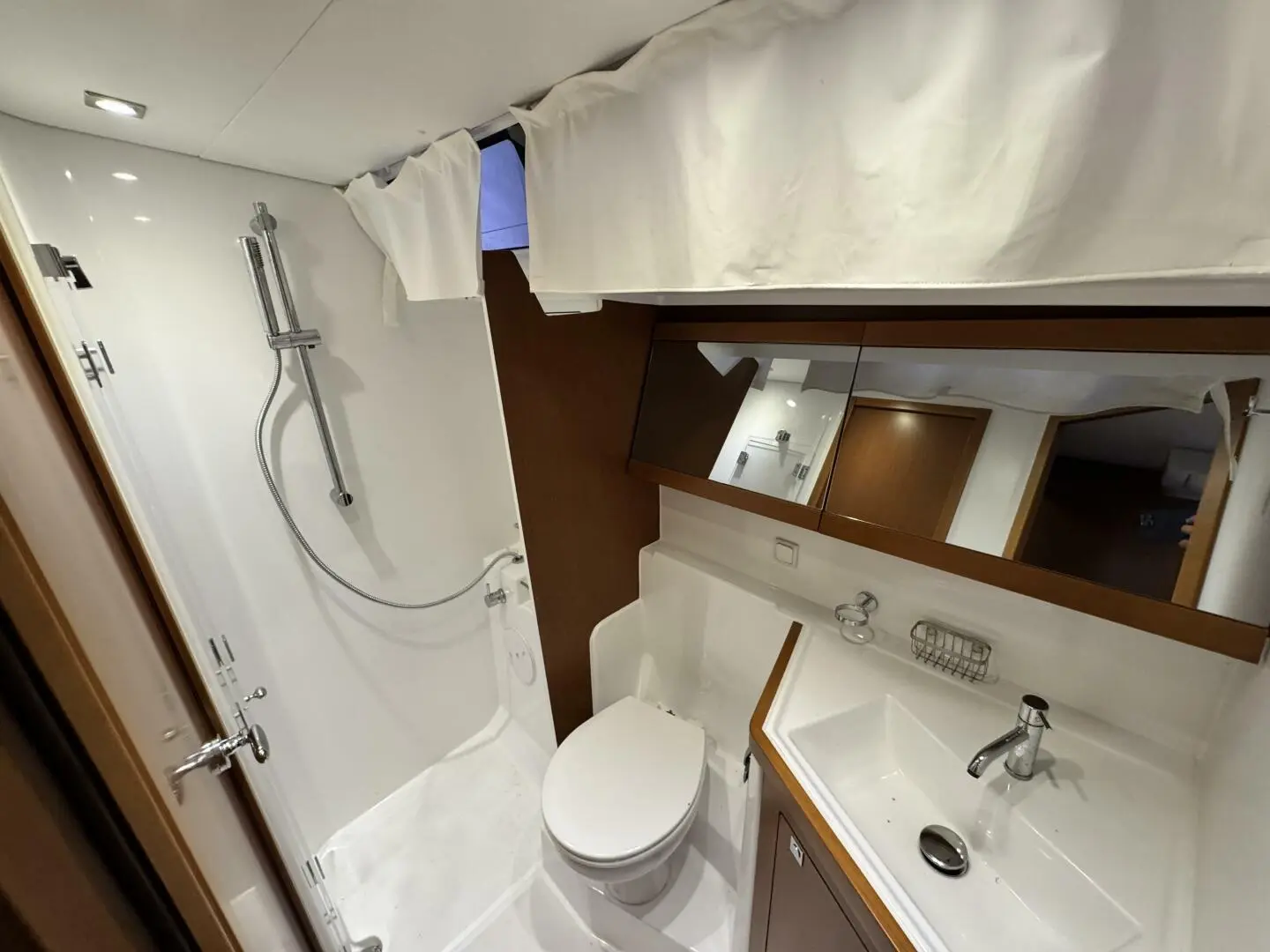

STARBOARD AFT HEAD COMPARTMENT

• Headroom: 6’4’’

• Access through saloon and the starboard aft cabin

• Separate shower - 1 Mixing tap hot water / cold water - Stowage on bulkhead

• 1 Manual marine toilet

• 1 Rigid holding tank 17 US Gal

• Basin - 1 Mixing tap hot water / cold water

• 2 Mirrors

• Toilet accessories

• 1 Opening portlight with curtains in side windows in the coaming

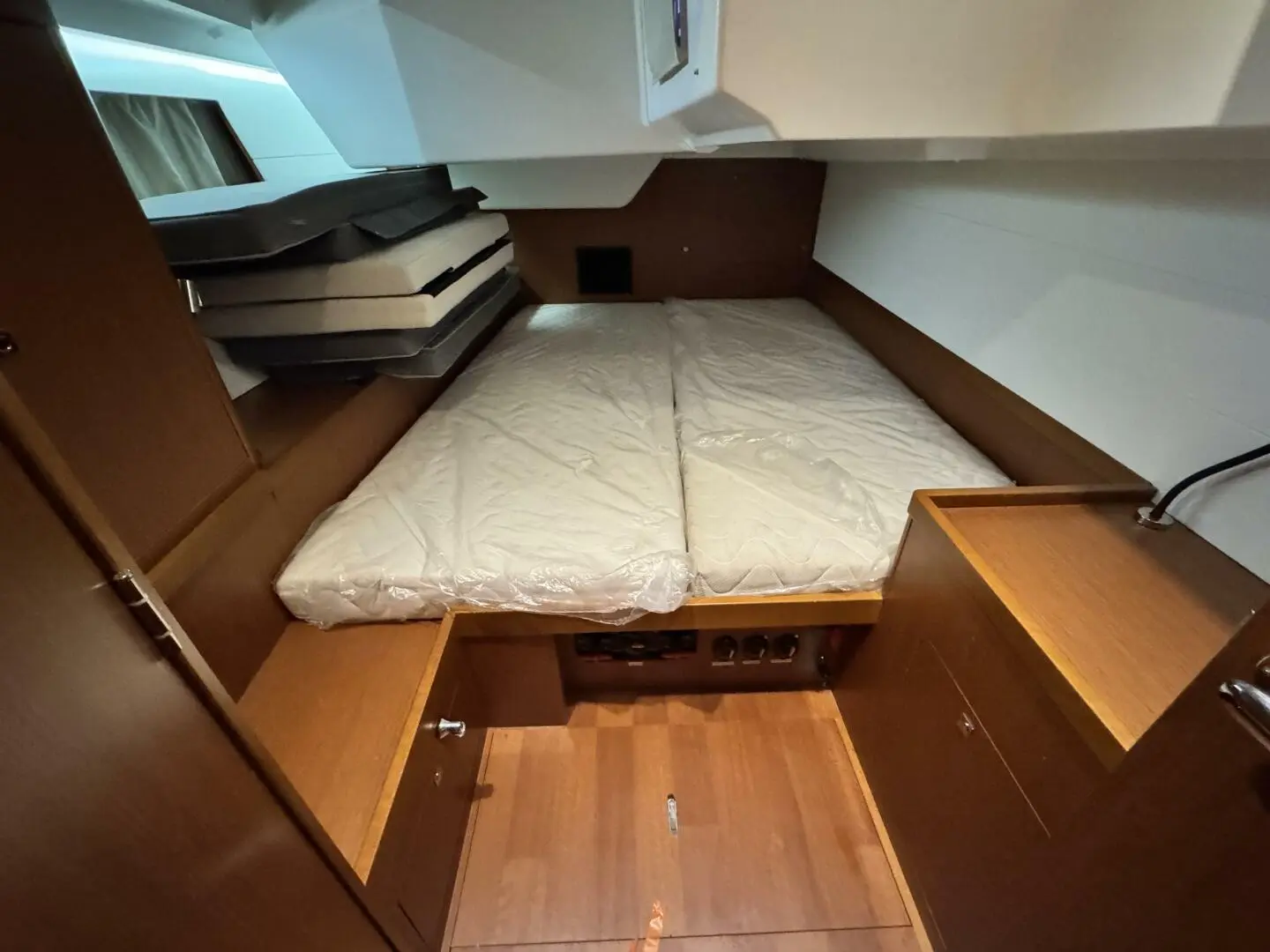

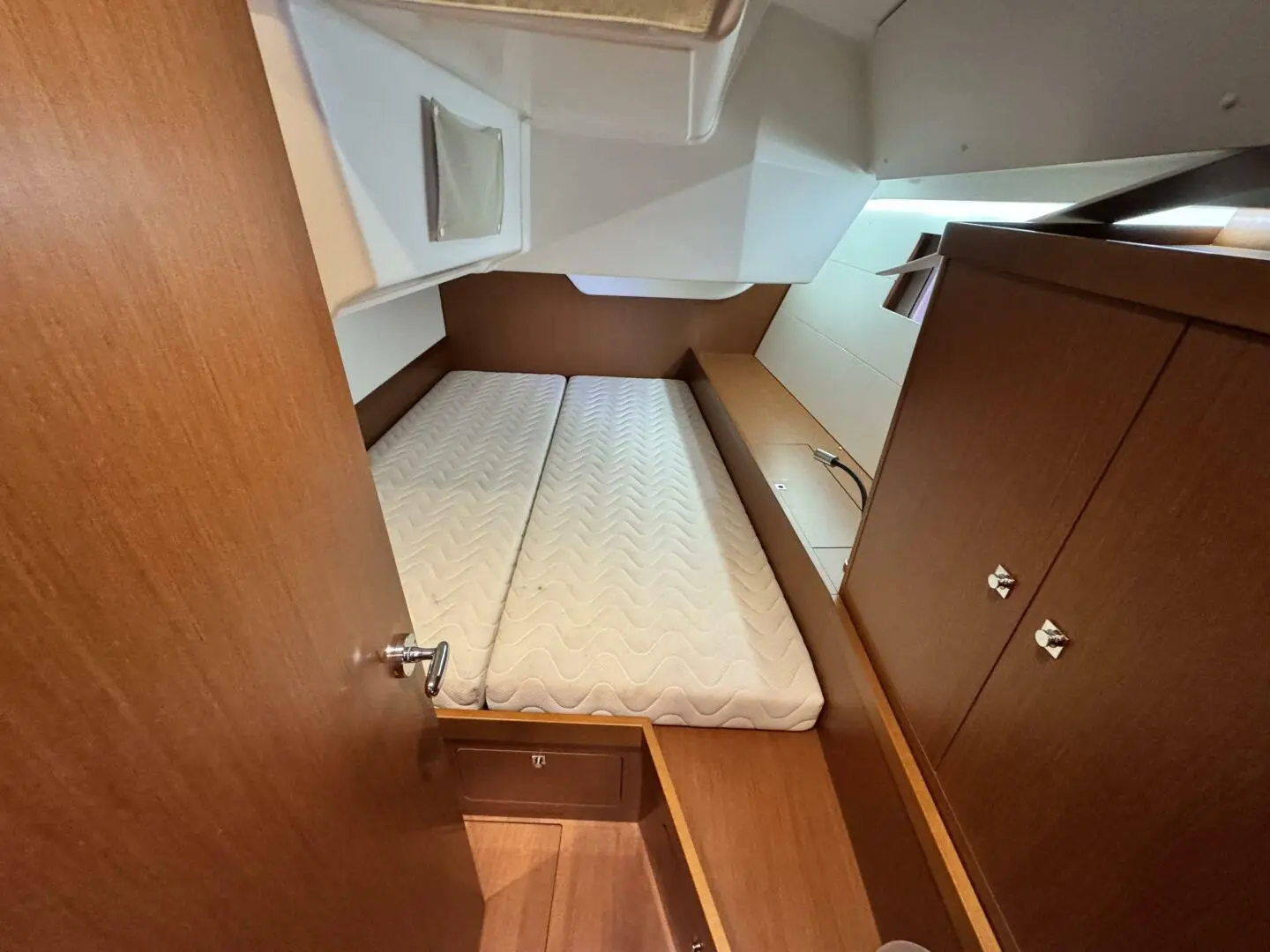

STARBOARD AFT CABIN

• Headroom: 6’1’’

• 1 Double bed (6’10’’ x 3’10’’ x 5’1’’)

• Access door to starboard aft washroom

• Cupboards, Hanging locker, Closed cubbyholes, Stowage on both sides of berth

• 1 Large size hull port with curtain

• 1 Opening deck hatch with shutter / screen

• 1 Opening cockpit port with curtain

• 1 Glazing on companionway bulkhead

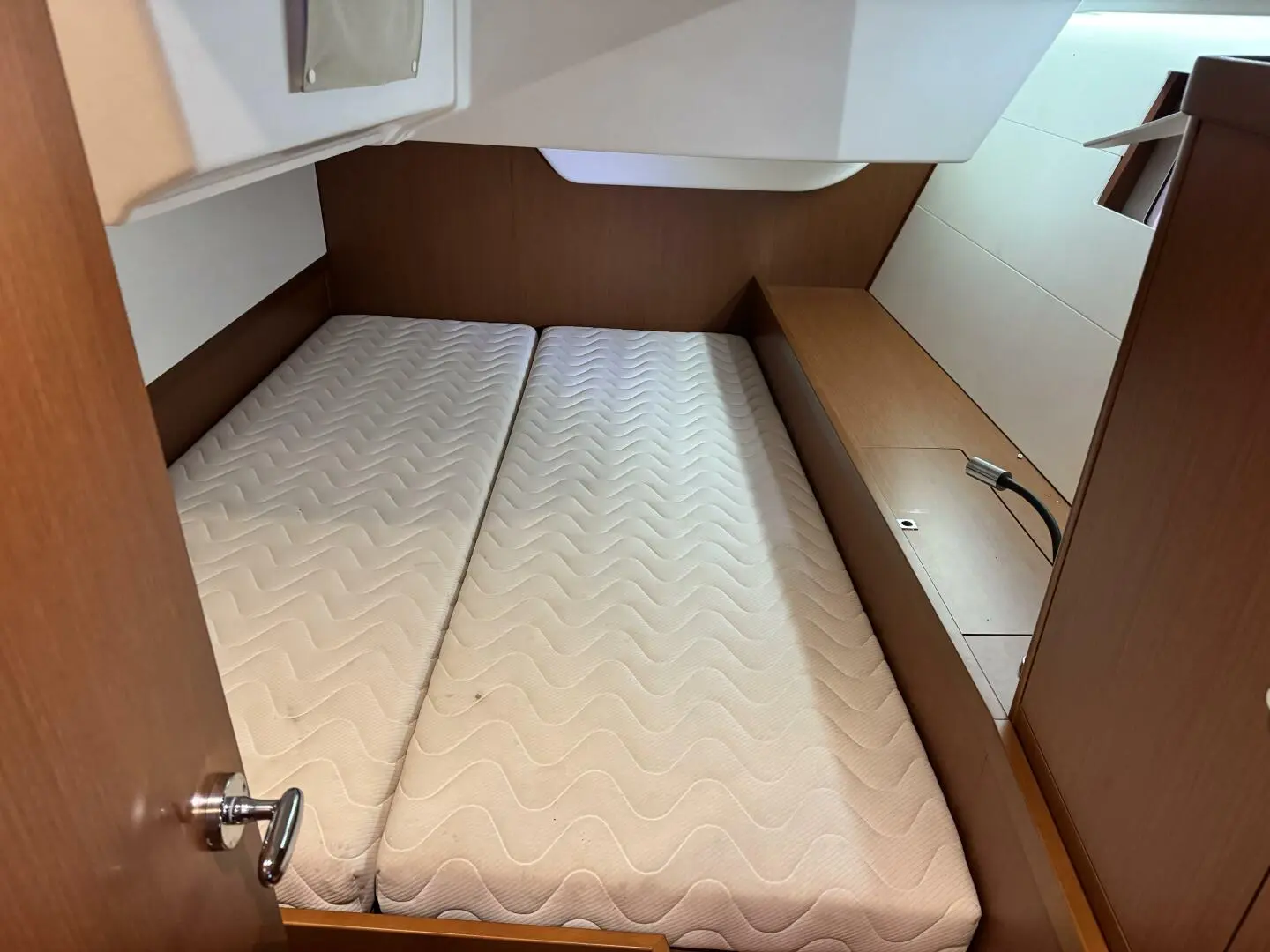

PORT AFT CABIN

• Headroom: 6’1’’

• 1 Double bed (6’9’’ x 4’5’’ x 5’1’’)

• Cupboards, Hanging locker, Closed cubbyholes

• 1 Large size hull port with curtain

• 1 Opening deck hatch with shutter / screen

• 1 Opening cockpit port with curtain

• 1 Glazing on companionway bulkhead

ENGINE

• Engine Yanmar Diesel 75 HP Sail Drive

• Engine control - Control panel in the port cockpit

• Engine compartment: Soundproofing foam - Ventilation: 1 air intake and 1 air outlet

• 1 Alternator 12 V / 80 Ah

• 1 Rotation moulded diesel tank 53 US Gal (under port aft berth) - Electronic gauge - Low level alarm - 1 Deck filler

• Filters: Sea water - Diesel - Decanter

• Fixed three blade propeller

• 1 Engine access through companionway (opening with 2 gas pistons) - 2 Engine access through aft cabins

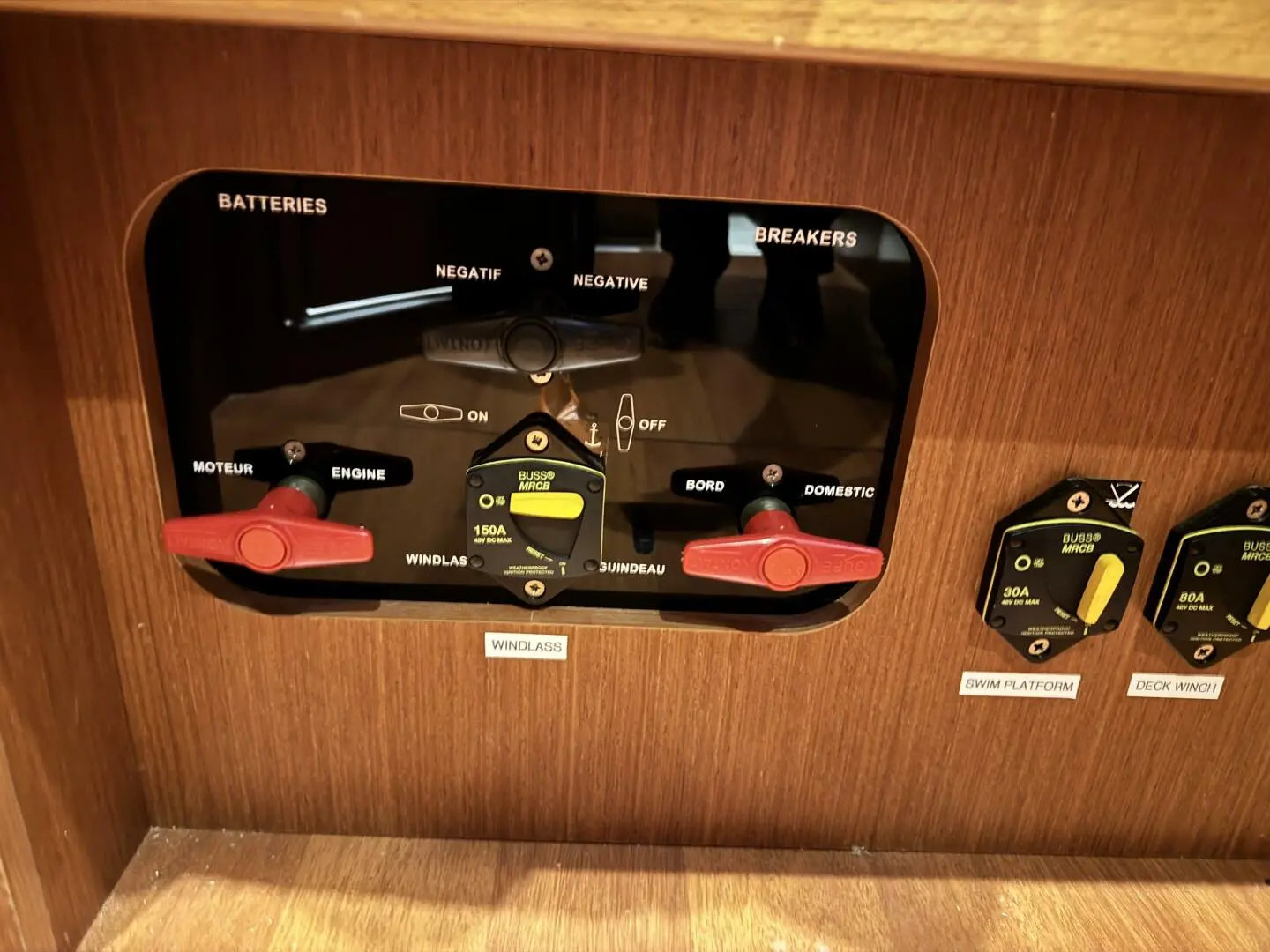

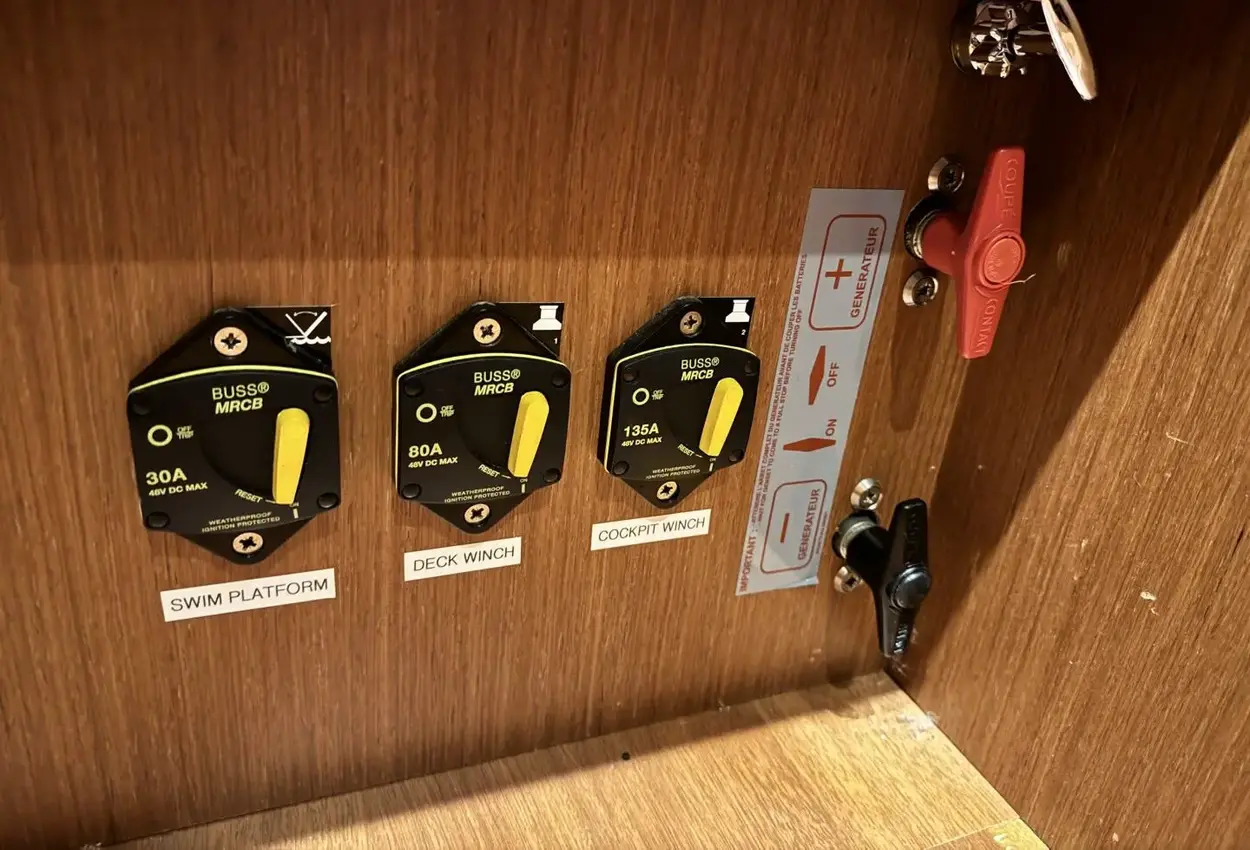

ELECTRICITY

• 1 2 V circuit

• 2 service batteries (140 Ah) - 1 Engine battery (110 Ah)

• 1 Charge divider

• 12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)

• 1 12 V Sockets

• Lighting: Overhead lights - Reading lights - Reading light White/red – White striplighting

• Navigation lights: 1 Forward and aft navigation lights - 1 Engine navigation light / Deck light forward of mast - 1 Mooring light on masthead

• Wire runs for options cables

PLUMBING

• 1 rotation-moulded freshwater tank (87 US Gal Forward cabin) - 2 Deck fillers - Separate tank filling - Tank selection with ¼ by-pass valves

• Water pressure system - Expansion tank - Inline filter

• Electric water heater 11 US Gal (engine run)

• 1 Rigid holding tank 17 US Gal

• Delayed shower draining and electric shower drain pumps

• 1 Electric bilge pump - 1 Manual bilge pump

• 1 Electric ice box drain pump

GAS

• 1 Gas bottle storage in the cockpit (1’1’’ x 1’9’’)

• 1 Regulator and 1 Solenoid

FACTORY OPTIONS & SELECTIONS

ELEGANCE TRIM PACKAGE:

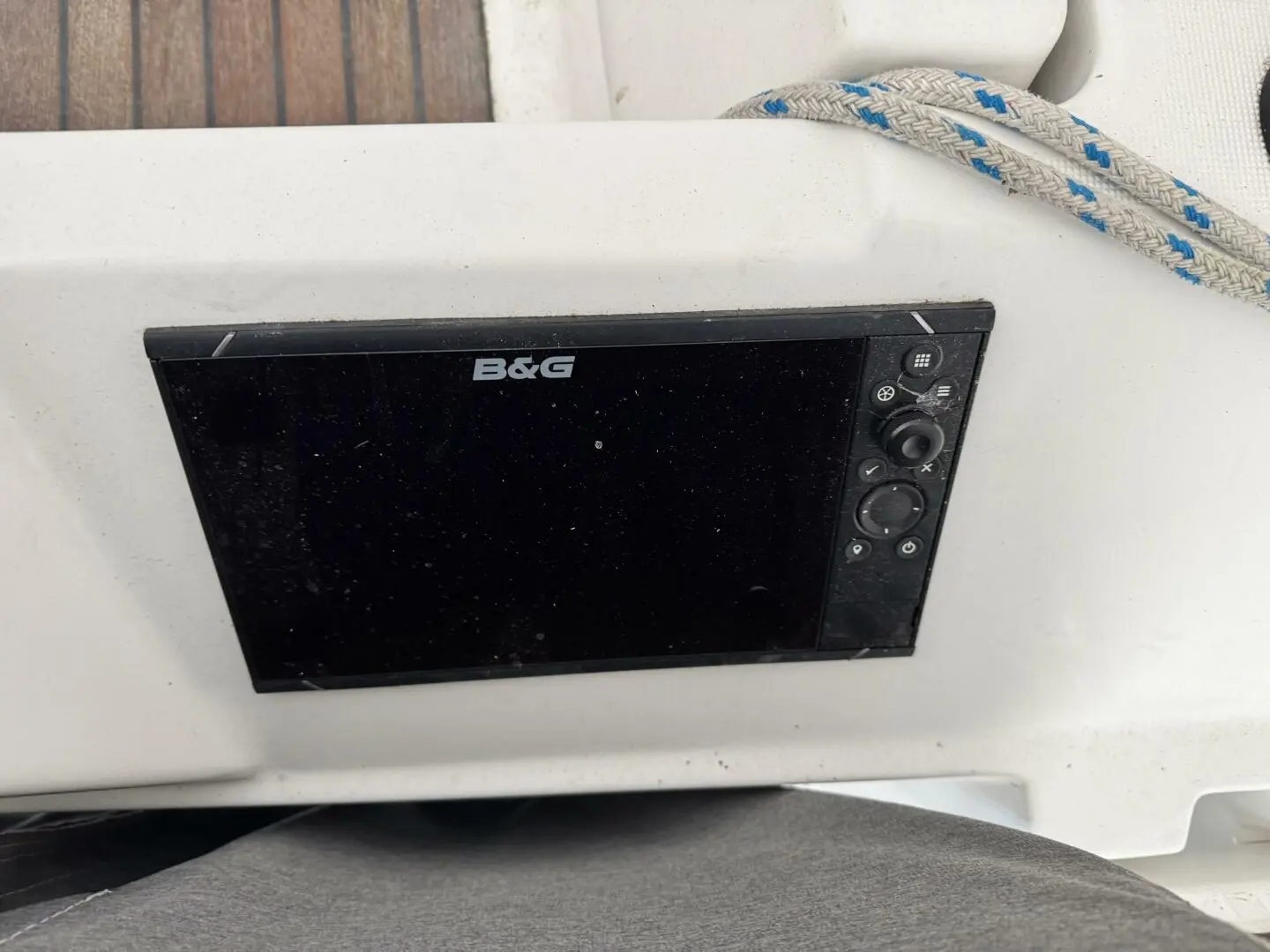

B&G Zeus7 Multifunction Display at Starboard Helm (upgraded to newer Zeus 9)

B&G Zeus7 Multifunction Display at Port Helm (upgraded to newer Zeus 9)

MFDs offer GPS & Color Chartplotter Functions

Navionics Cartography

WiFi Interface

Functions: Distance Log, Boats speed, depth, Wind Speed & Direction, etc.

Cockpit sole natural solid wood

Galley: Sea water foot pump + Fresh water

LED Navigation lights

LED Interior lighting

Salon & Cabins: Indirect lighting LED

Hot & Cold Cockpit Shower

Additional Diesel Fuel Tank 53 US Gal

Stereo SonicHub (Radio, Dock IPHONE®, USB)

SonicHub Remote at helm

Salon & Cockpit Speakers

2 140 Amp additional service batteries

Additional 40 Amp battery charger

Releasable fore-stay chain-plate

Port electric coachroof winch H46.2 STCE UNIPOWER

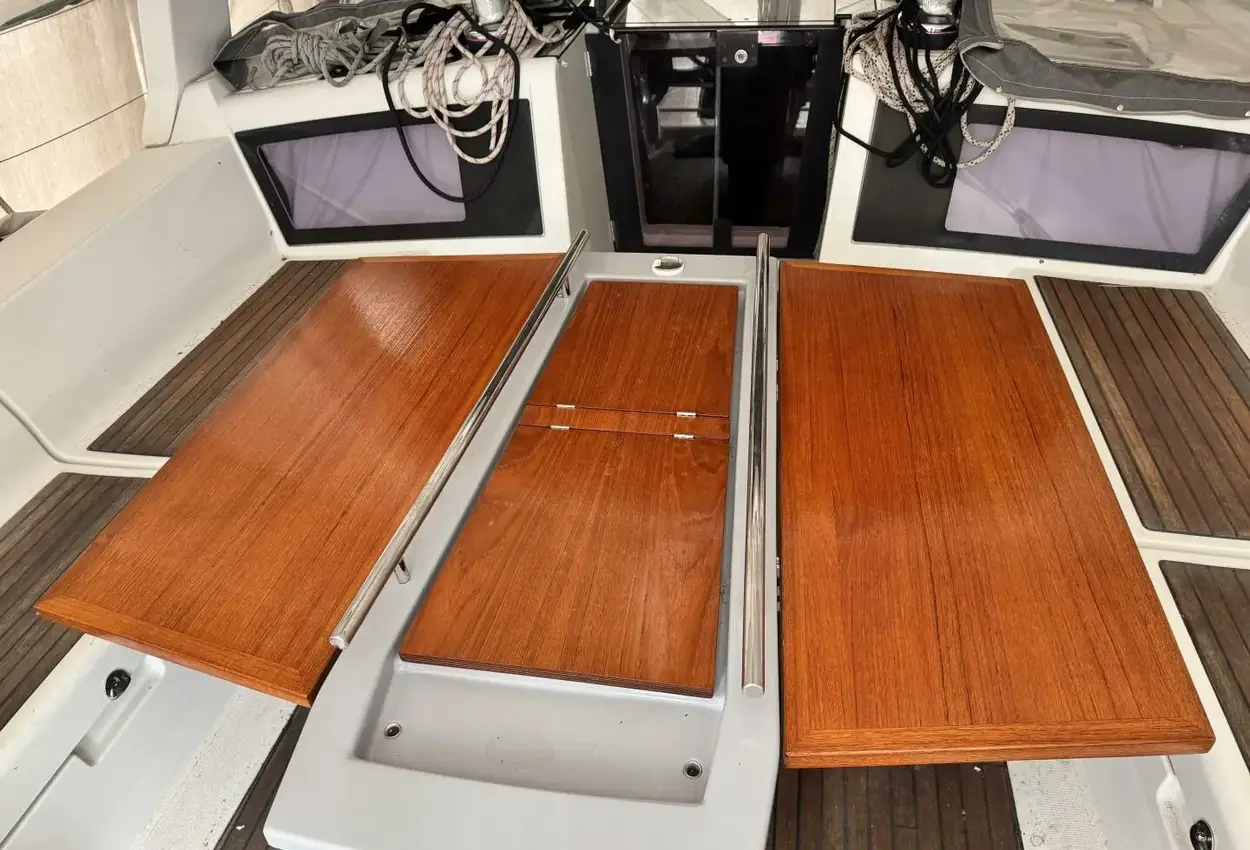

Polyester/wood cockpit table

White PVC protective cover for cockpit table

Top opening 12 V Refrigeration in ice box with Freezer

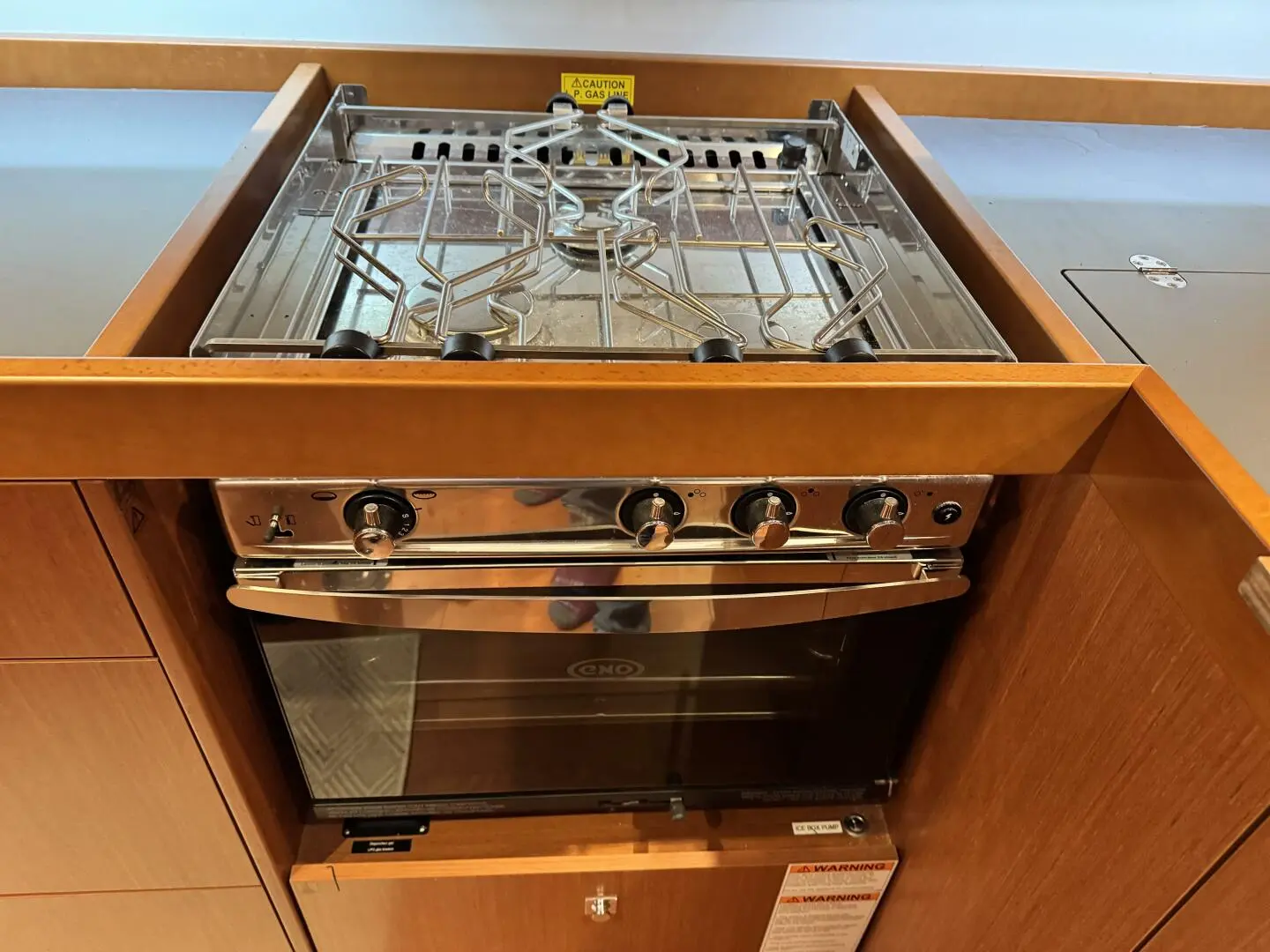

Stainless steel 3 burner oven/grill cooker on deluxe mounting

INDIVIDUAL FACTORY OPTIONS & SELECTIONS

Standard Boat with North American Specifications

Three Cabin, Two Head Layout

Mattresses in Sleeping Cabins

Shoal Draft 5’11” Keel

In-Mast Mainsail Furling with ICW Height Mast

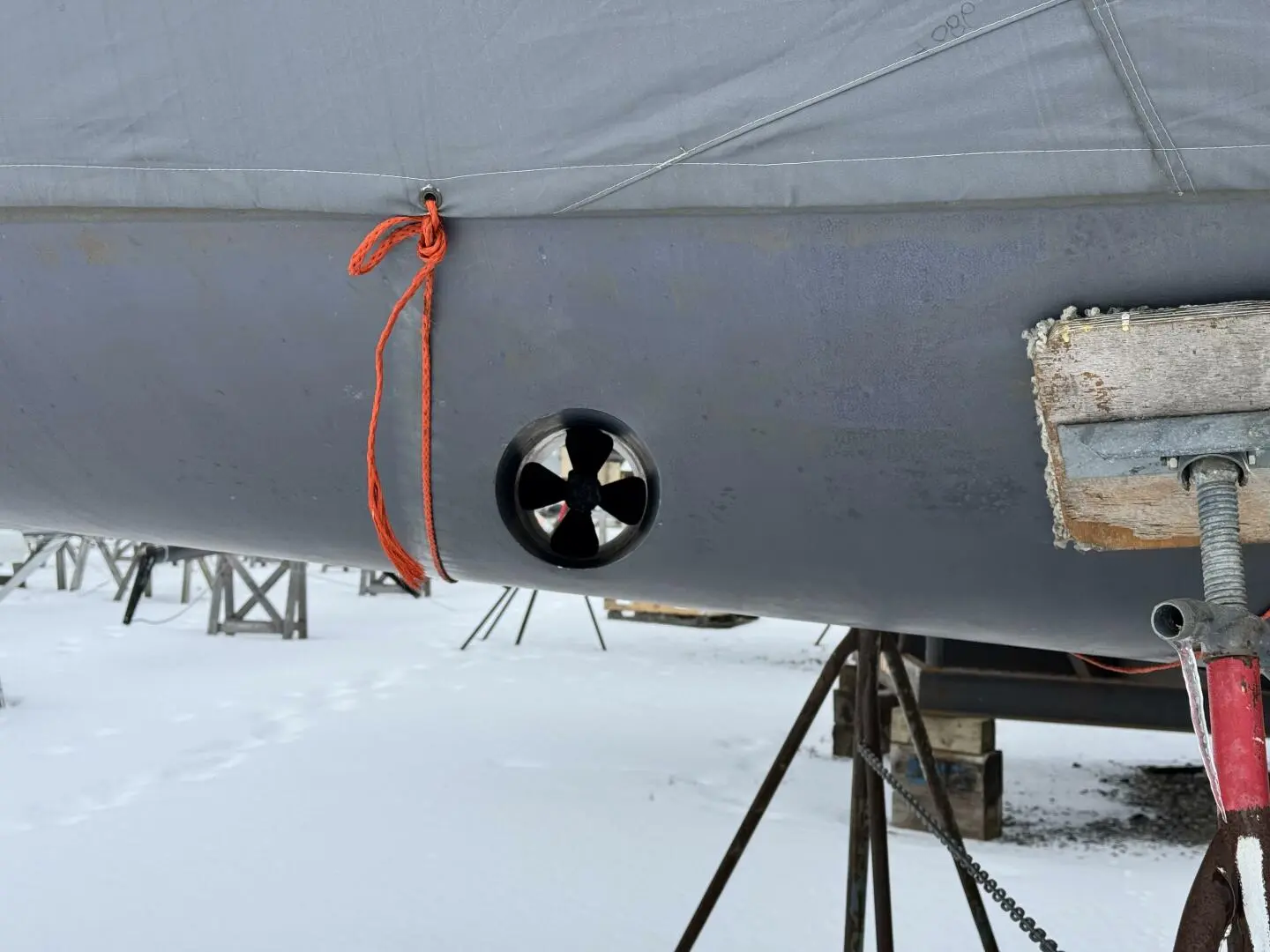

Bow Thruster Maxpower SP 125

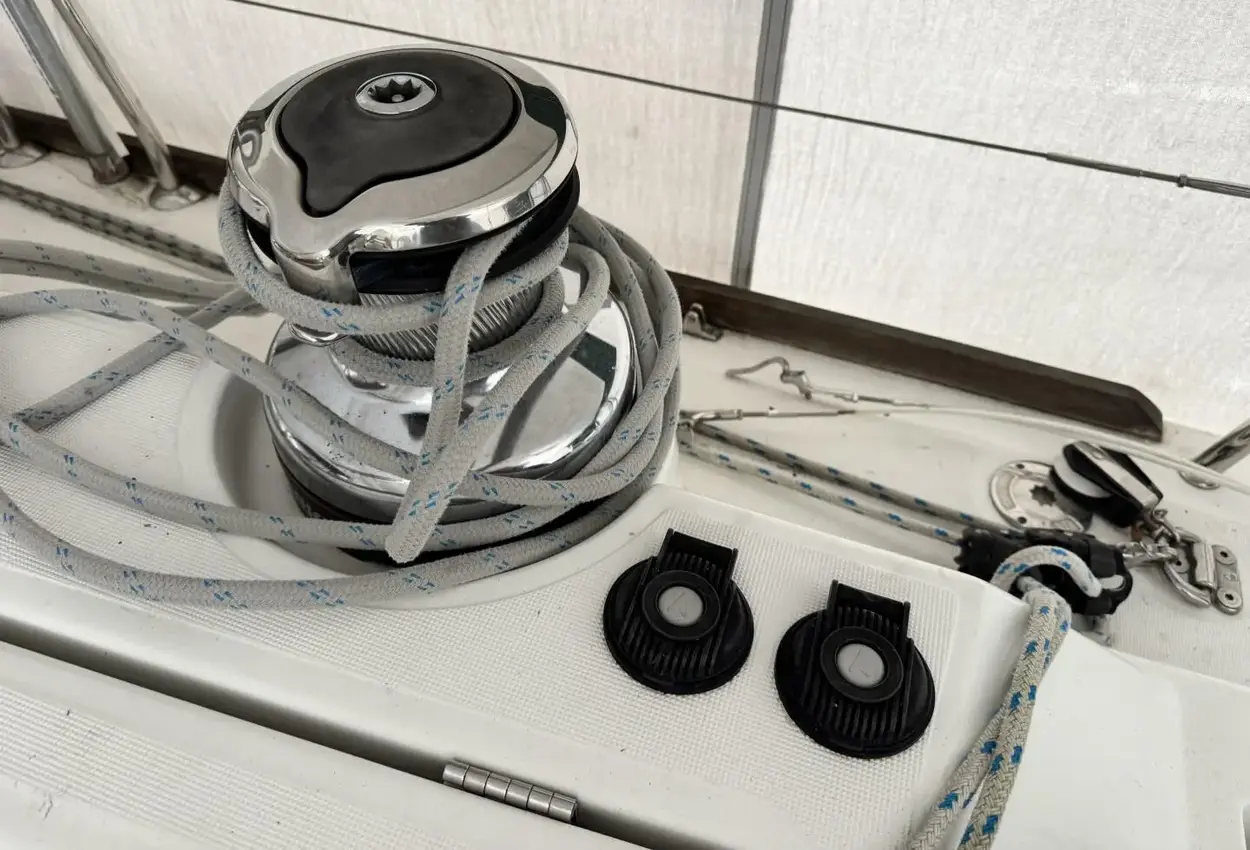

Two Electric Genoa Sheet Winches H60-2STCE in lieu standard

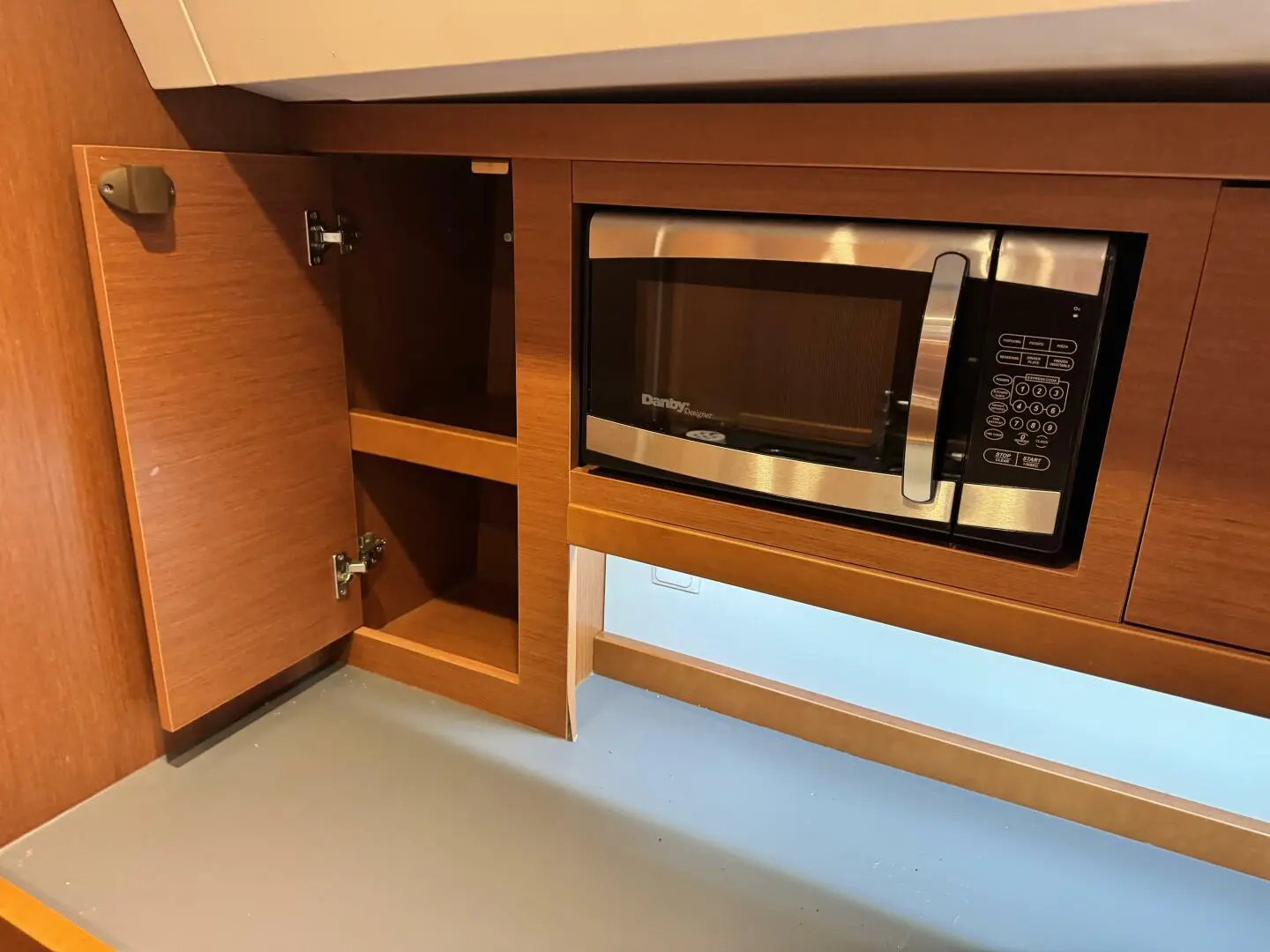

Microwave Oven

Air Conditioning & Reverse Cycle Heat

Double Berth in Salon

Quiet Flush Electric Toilet Forward

Quiet Flush Electric Toilet Aft

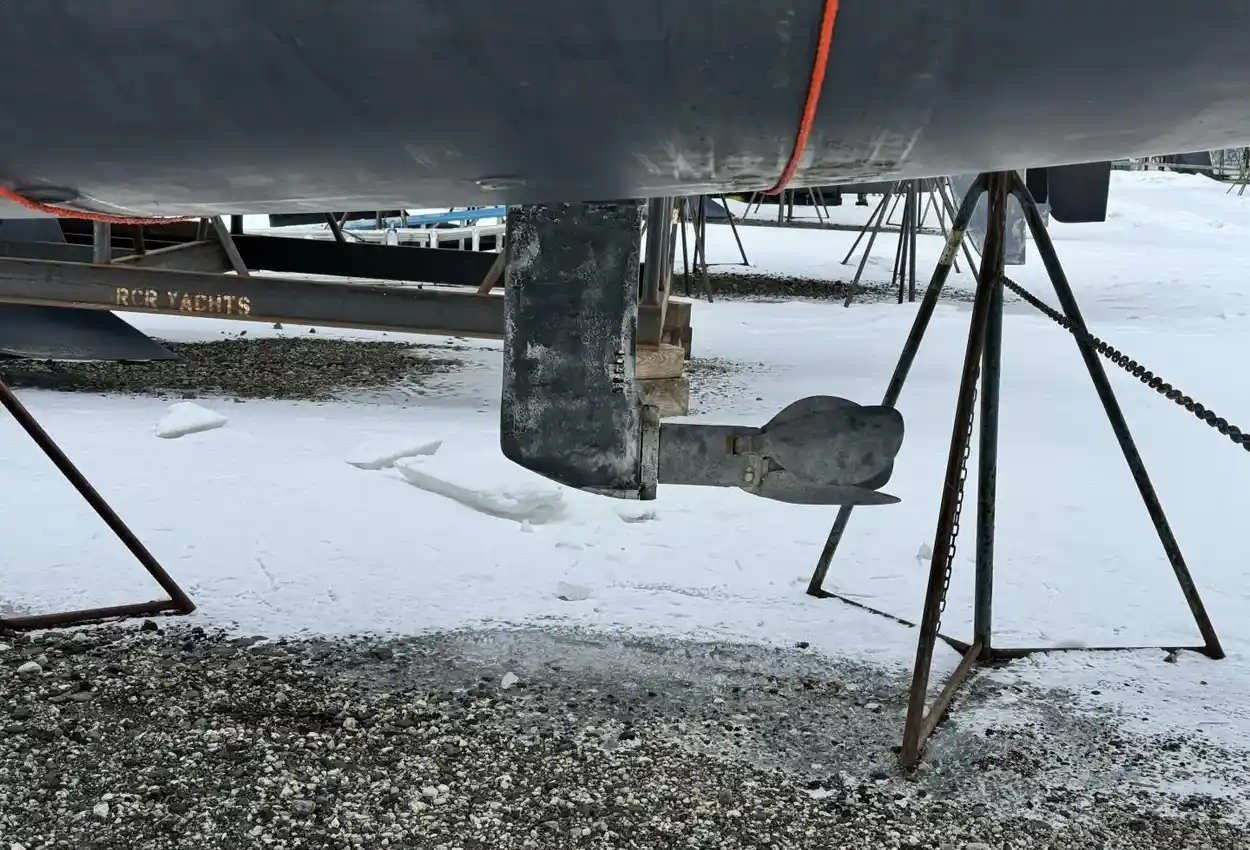

Three Blade Geared Folding Propeller

B&G Autopilot

B&G RS35 VHF with Masthead Antenna

B&G Remote VHF at Helm

Additional:

Windex on Masthead

Docking Package

Anchor Package

Safety Package

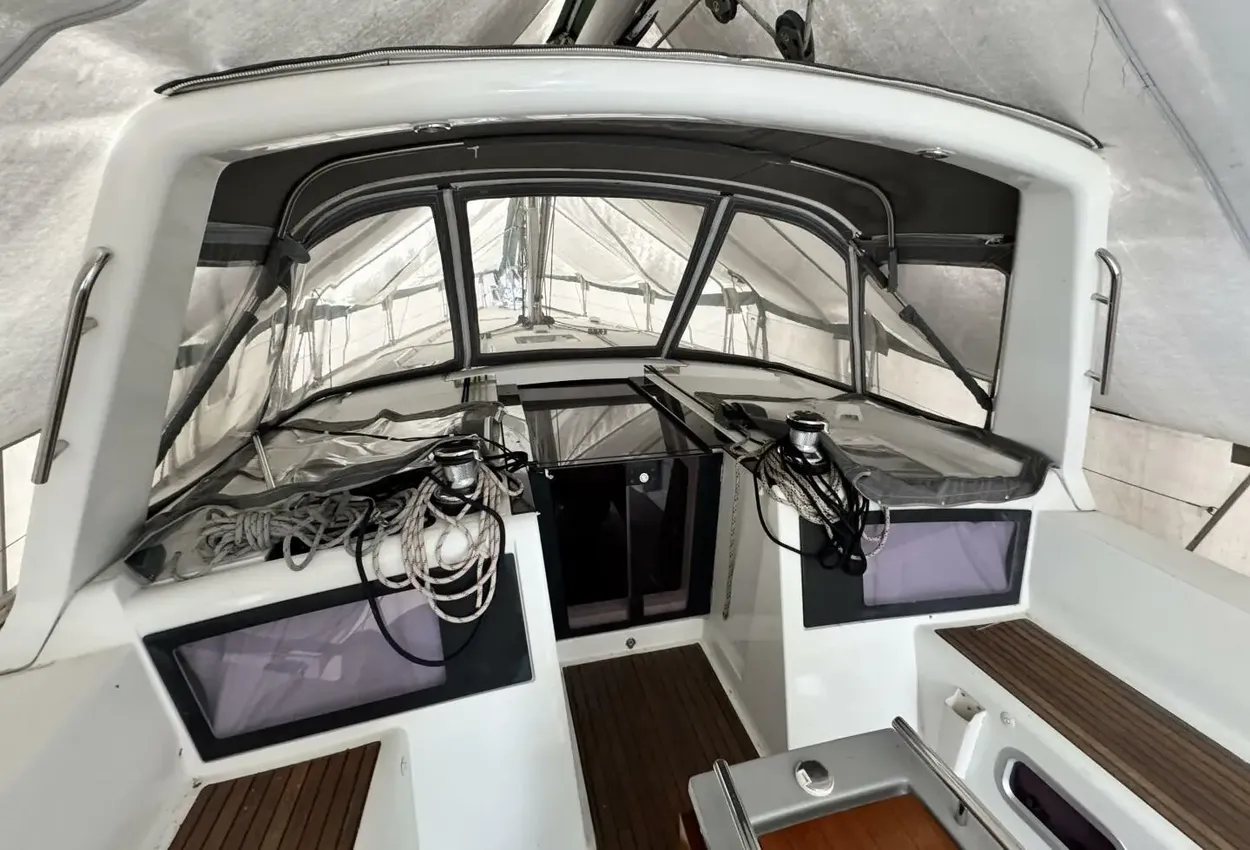

Custom Dodger, Bimini, Connector

Custom Wheel Covers

Custom Cockpit Bench Cushions

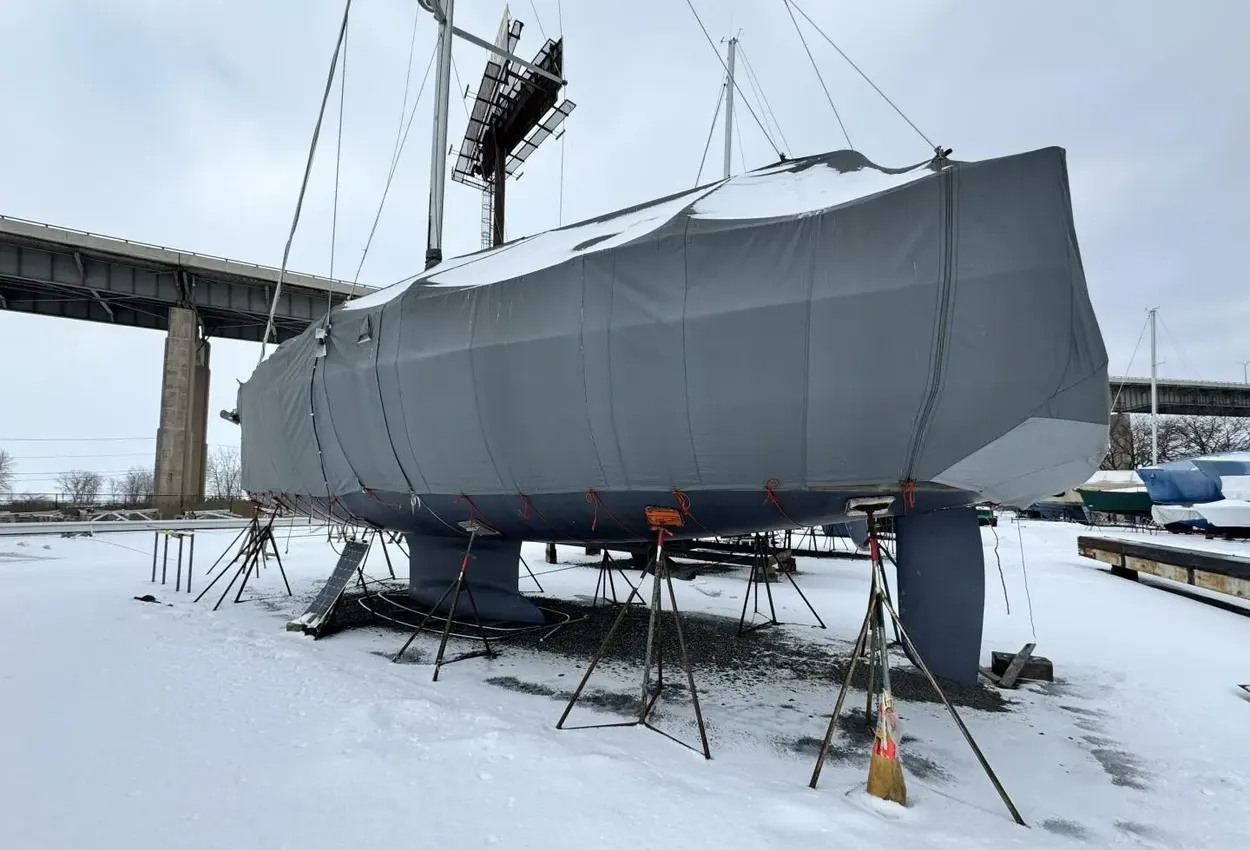

Custom Winter Cover and Frame

VC 17 Antifouling Bottom Paint

Complete Set of Jack Stands

Upgraded AGM Batteries

Salon Cushions Ultraleather SNOW

Reacher on Furler with Hardware

TV Antenna

Porthole screens

7.5KW Generator

B&G VHF Package with AIS Receiver & Remote RAM

B&G 4G Radar

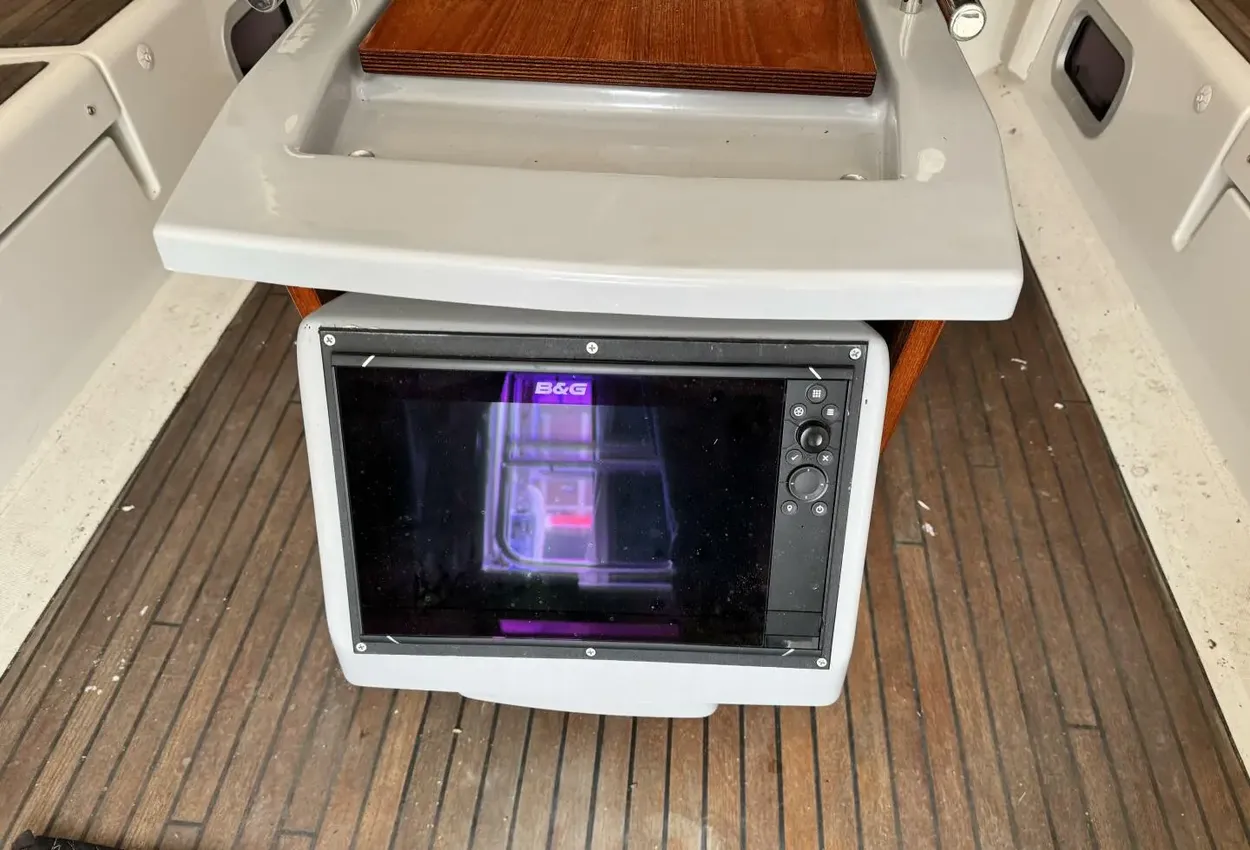

Multifunction color touchscreen B&G Zeus 12" on swivel base aft of cockpit table

New Ullman Sails, Main and Furling Jib
