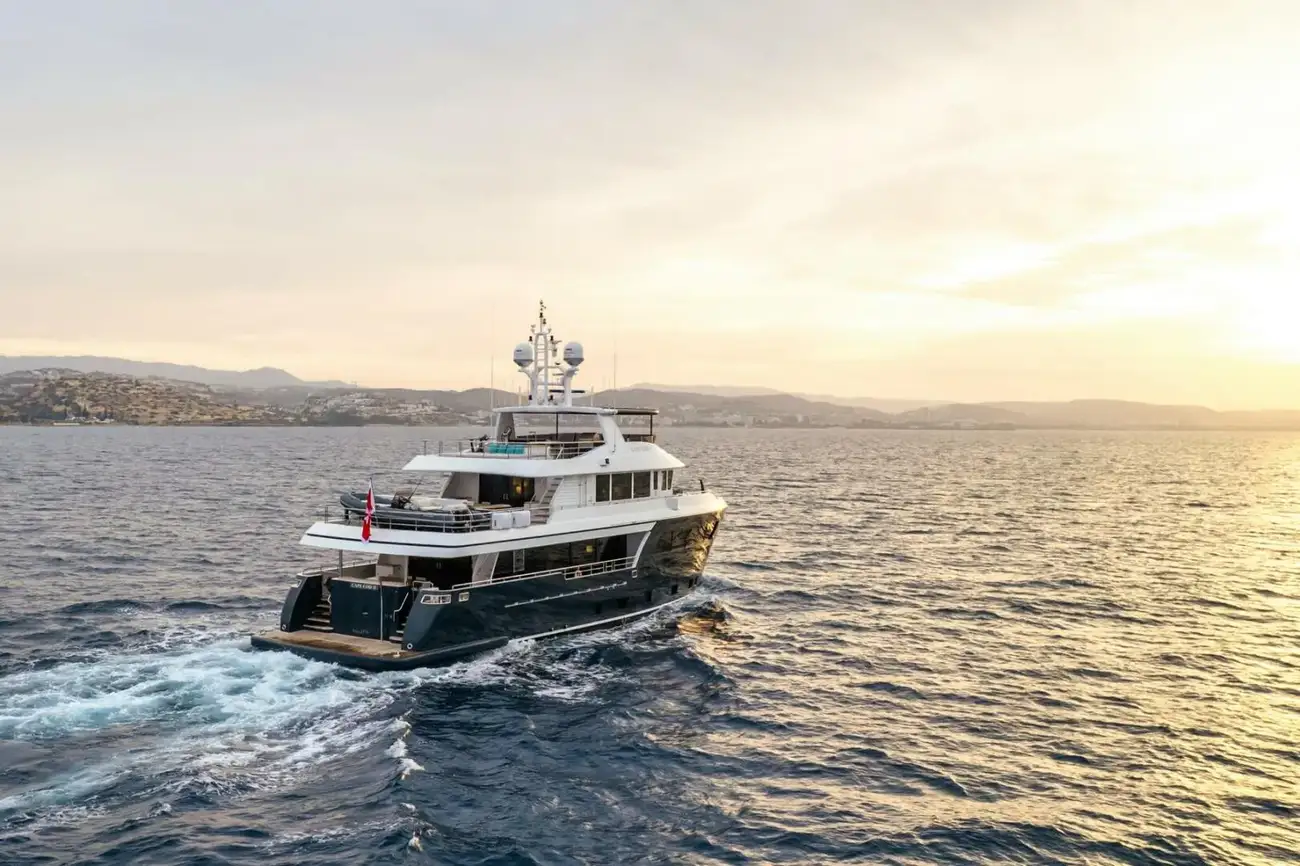

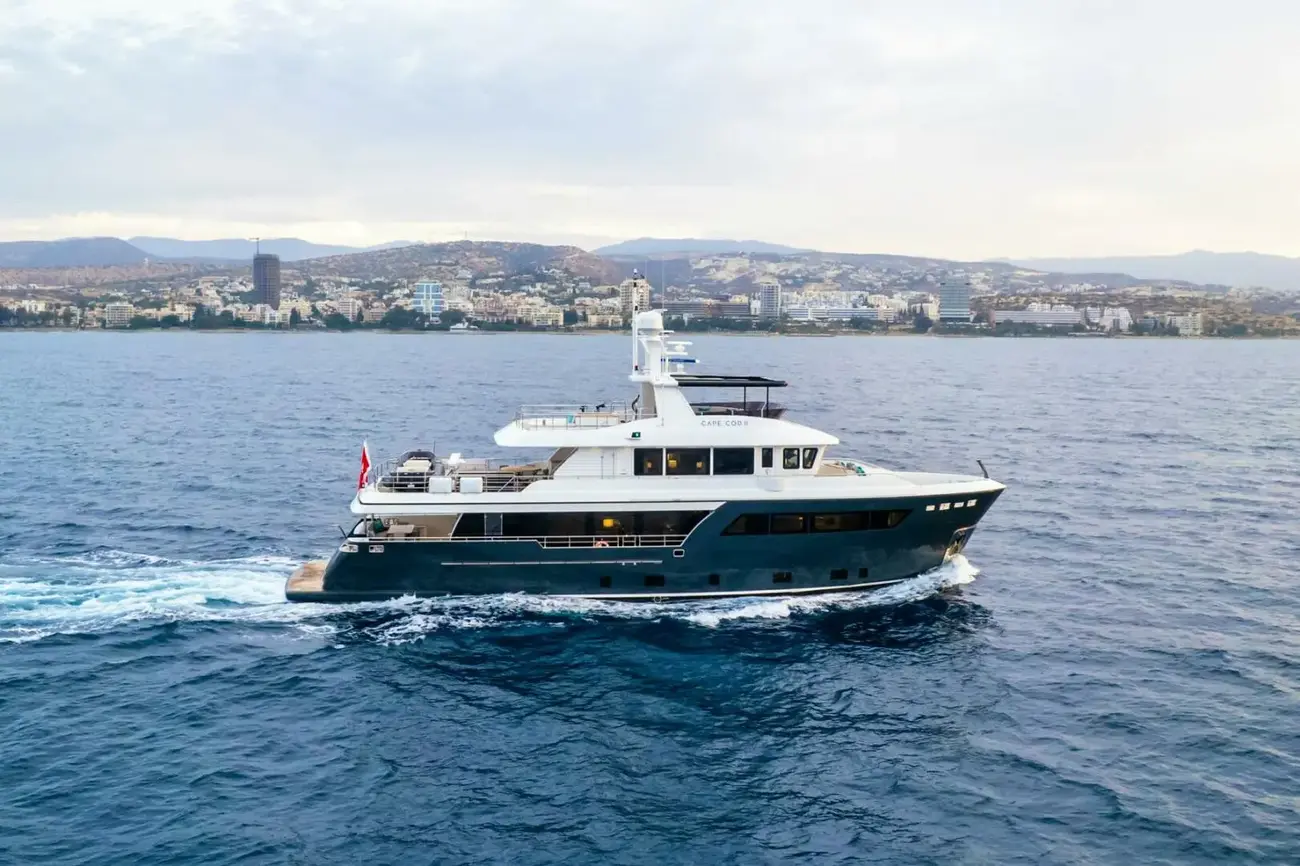

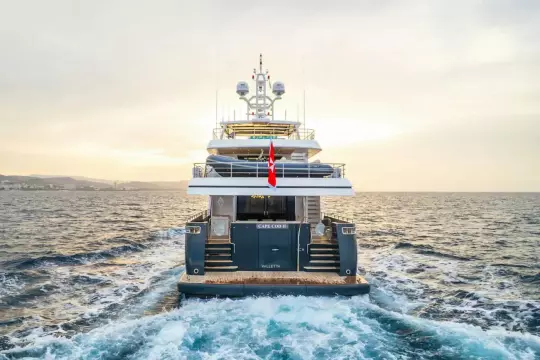

Cantiere Delle Marche Darwin 102 CAPE COD II

Main characteristics

LOA: 31.00m / 102’8”

Beam: 7.34m / 24’4”

Draft: 2.45m / 8’1”

Builder: Cantiere Delle Marche (Italy)

Year: 2019

Construction: Steel / Aluminium

Type: Full displacement

Naval Architect: Hydro Tec SRL

Exterior Design: Hydro Tec SRL

Interior Design: Francesco Guida

Classification: RINA, built to LY3 compliance

Crew: 6

Flag: Malta

Engines: 2 x CAT C18 Acert

GRT: 246

Net Tonnage: 73 T

Introduction

Introduction

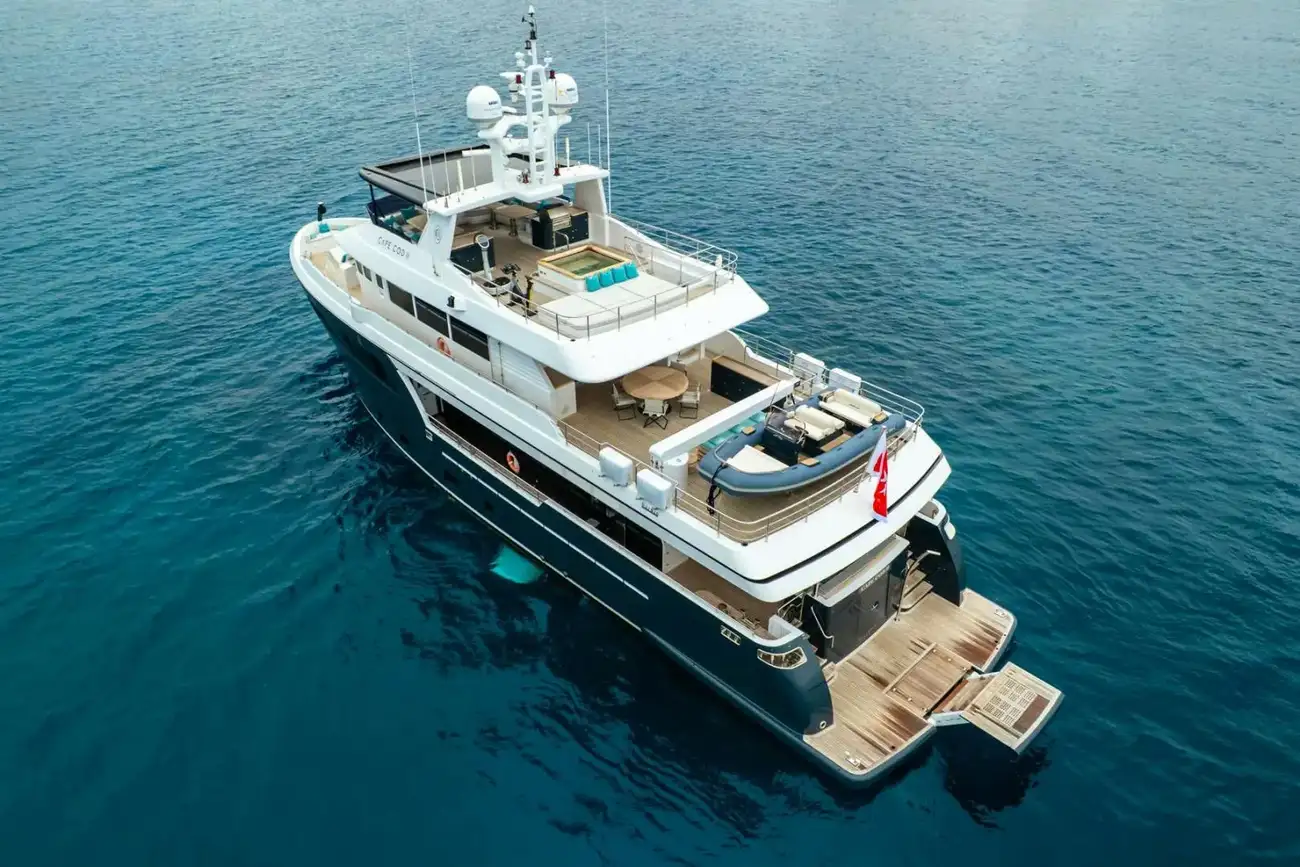

Cape Cod II is an exceptional example of the Cantiere Delle Marche 102 Darwin Class delivered in 2019. The Darwin Class is an icon in the Explorer Yacht’s world. She demonstrates the cruising evidence of how true to reality is CdM’s reputation for sturdy, reliable, seaworthy and low fuel consuming vessels.

The interior design has been masterfully penned by Francesco Guida, who has years of knowledge and experience in the luxury yacht sector, both in design and engineering, having collaborated for the last twenty-five years with many of the best industry brands. The result is a contemporary and stylish interior in which a neutral and pale oak veneered wood is embellished with materials of different shape and brightness: deco-metal panels, stainless steel rods, white glossy ceiling and textured fabrics.

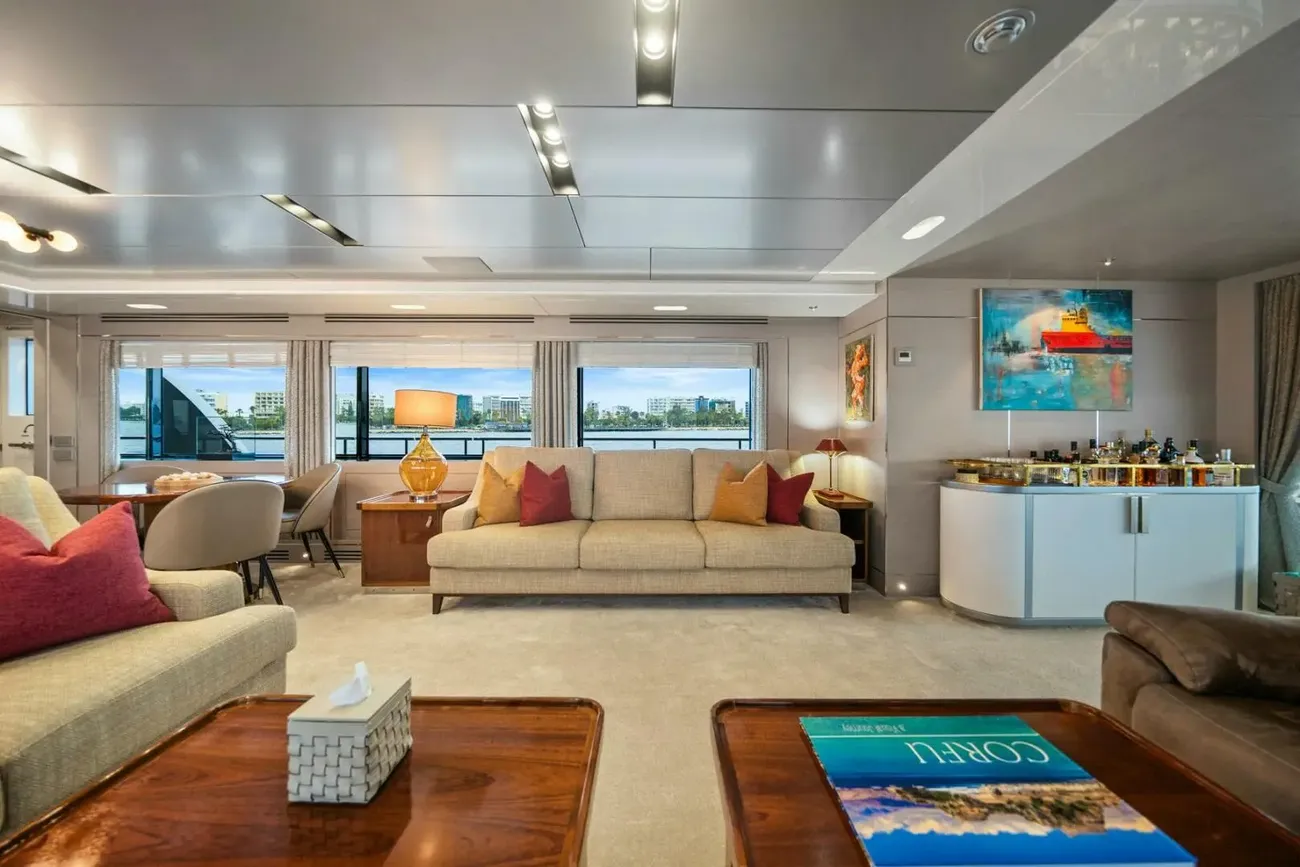

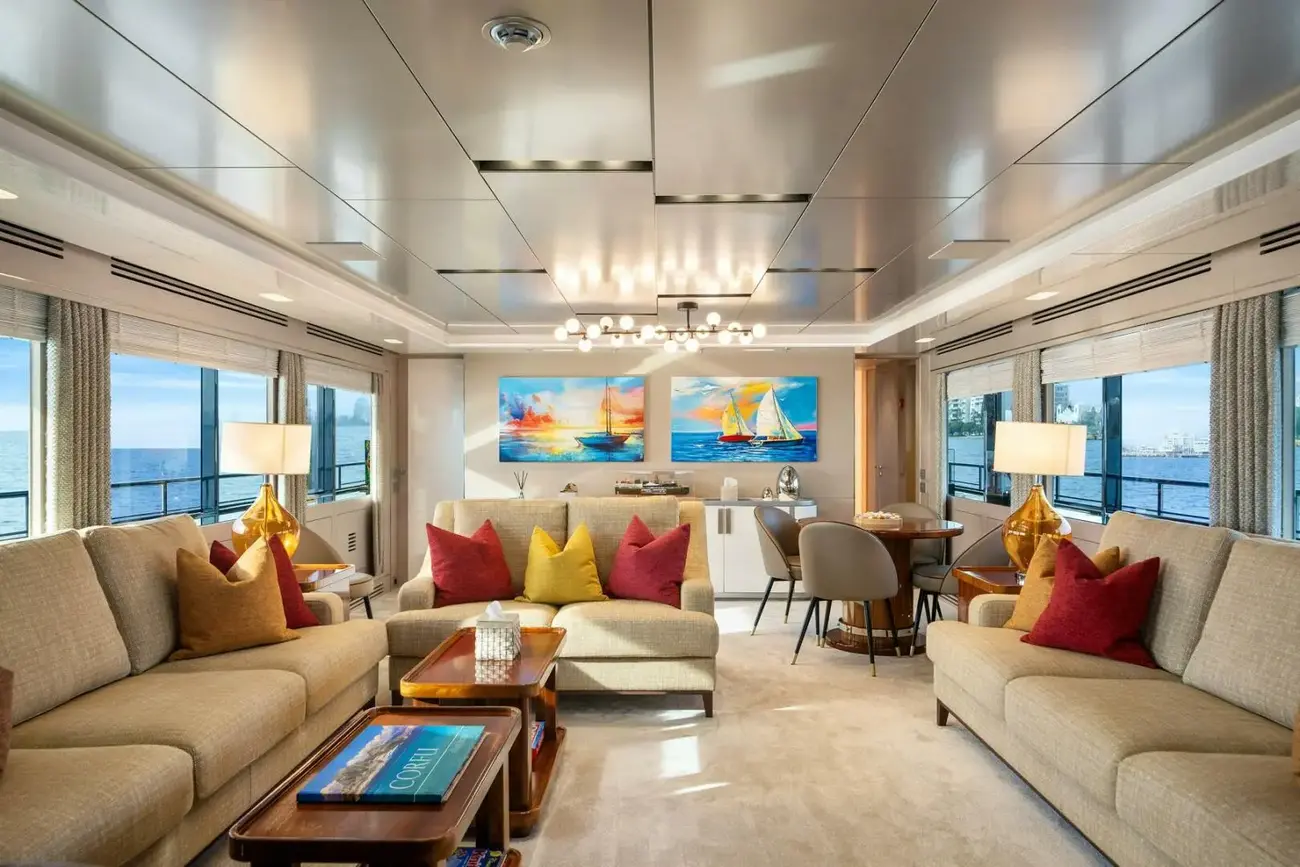

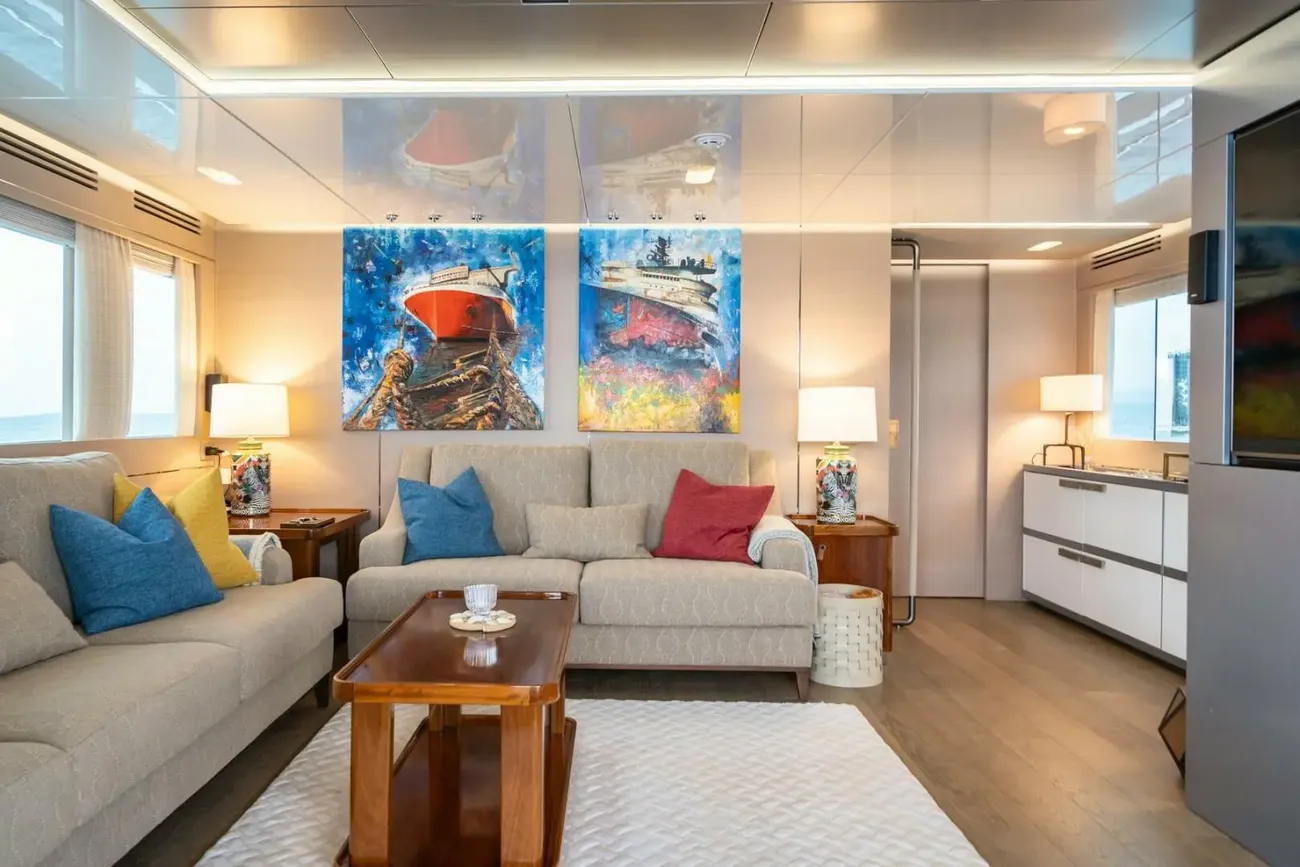

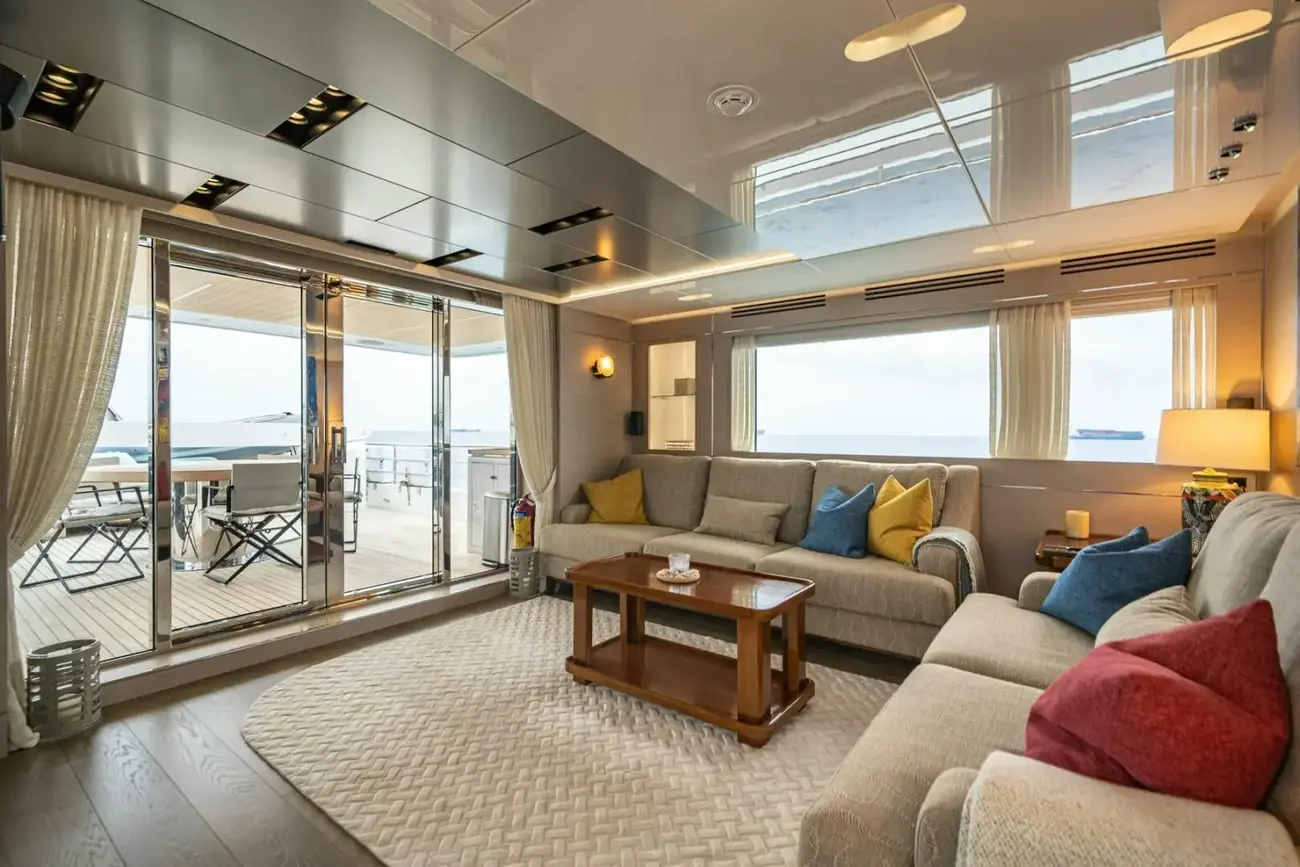

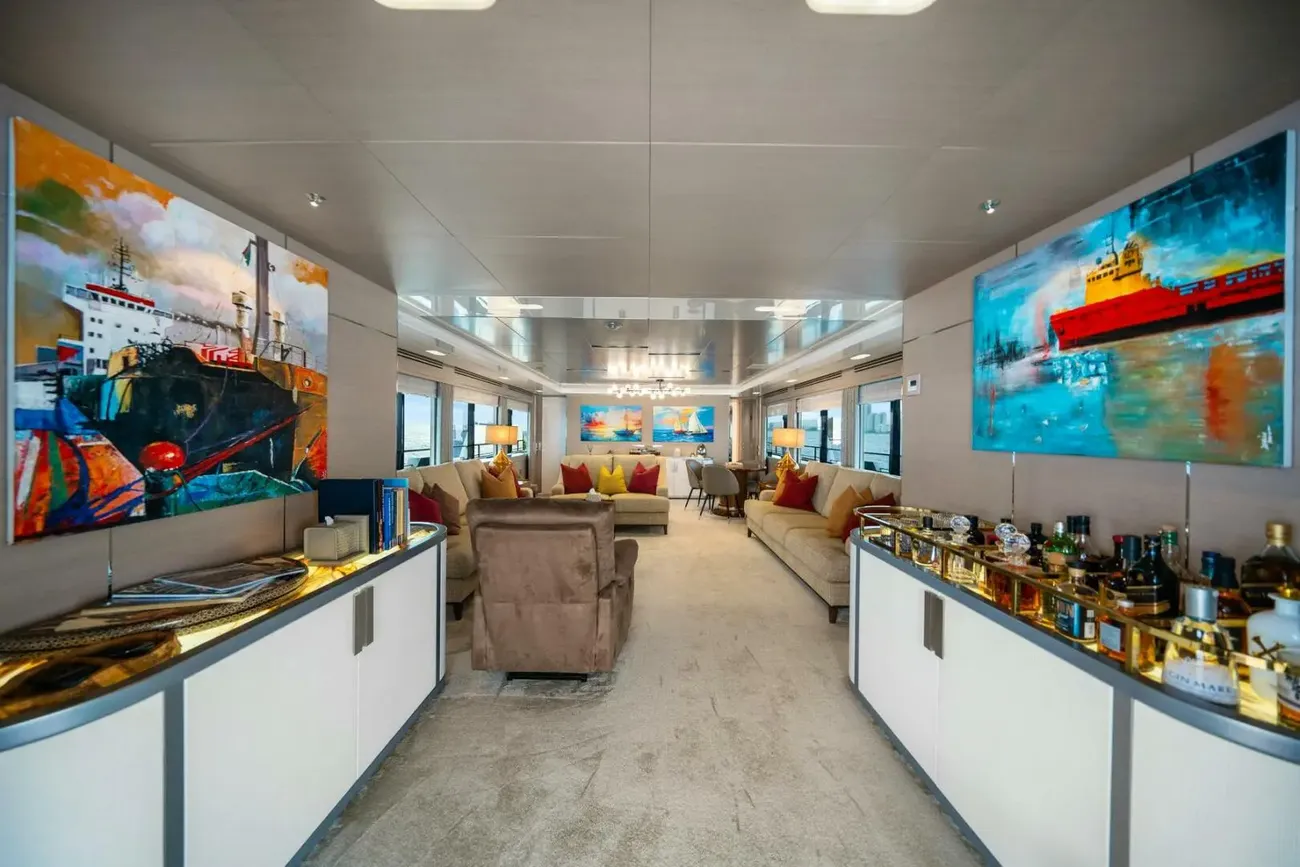

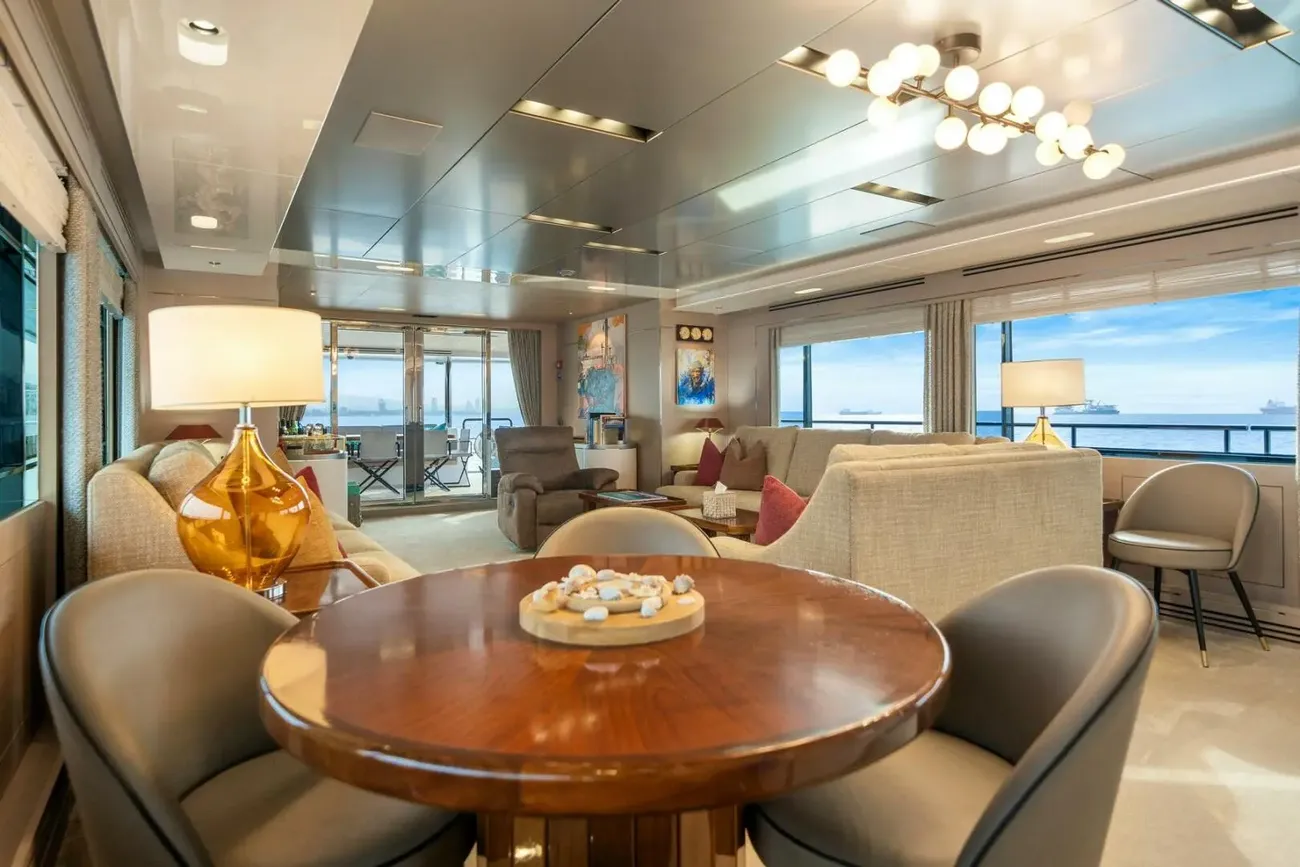

Cape Cod II features five staterooms, with the Owner’s cabin in a privileged position forward on the main deck, one of few CdM 102’s to offer this. All guest spaces, including two wide saloons, have a minimum floor-to-ceiling height of 2.10m.

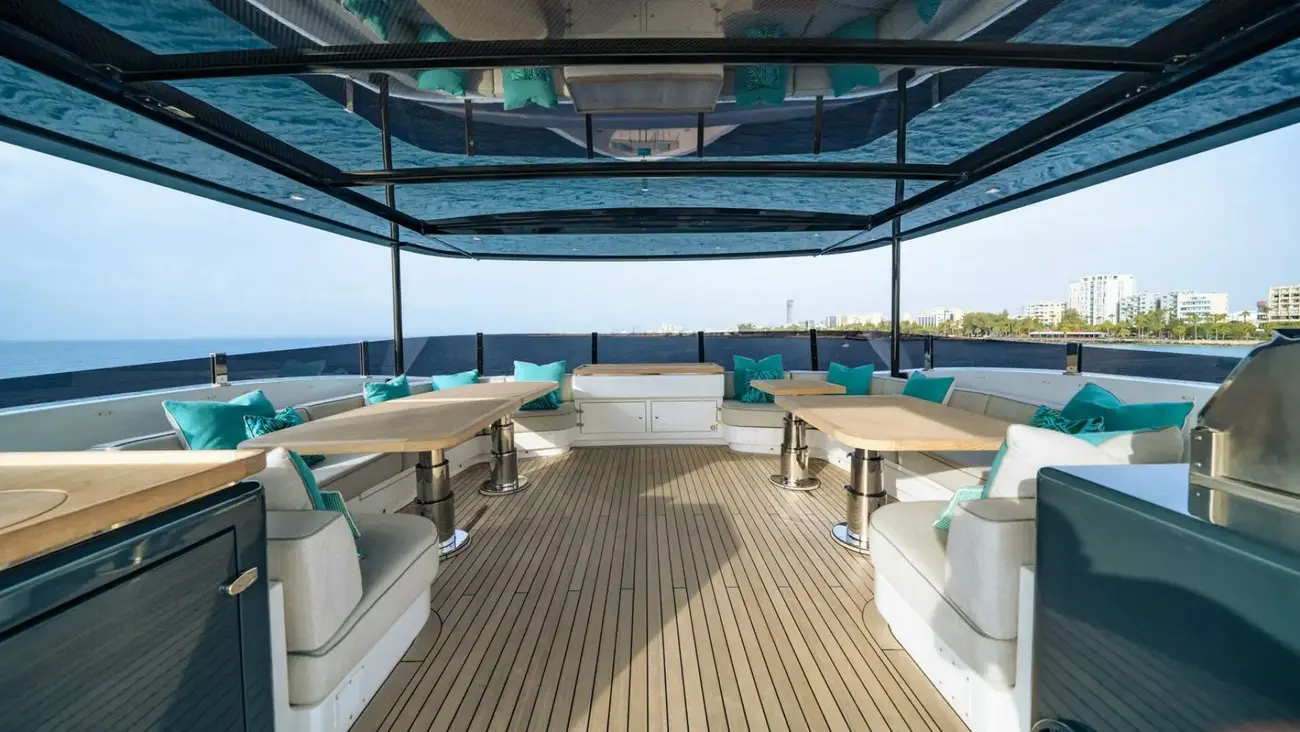

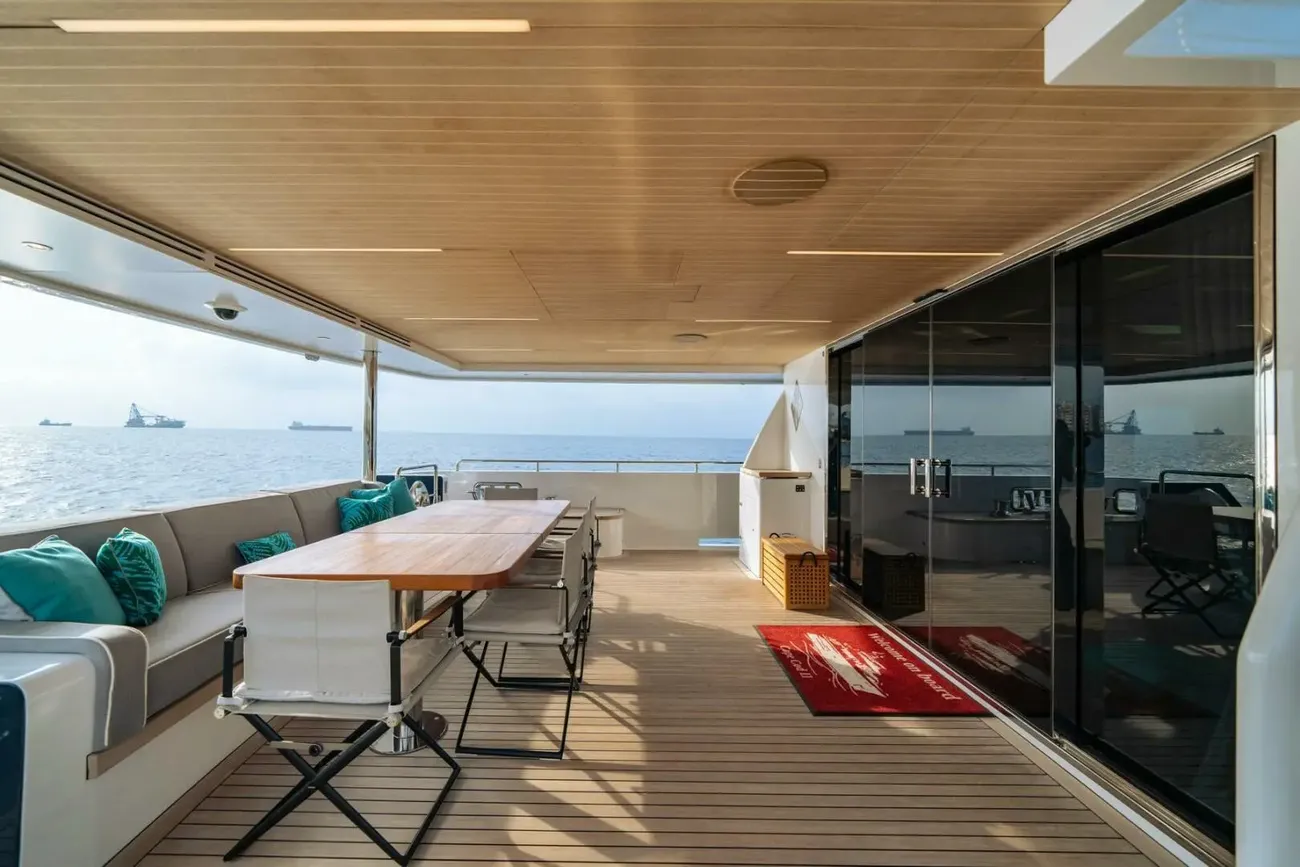

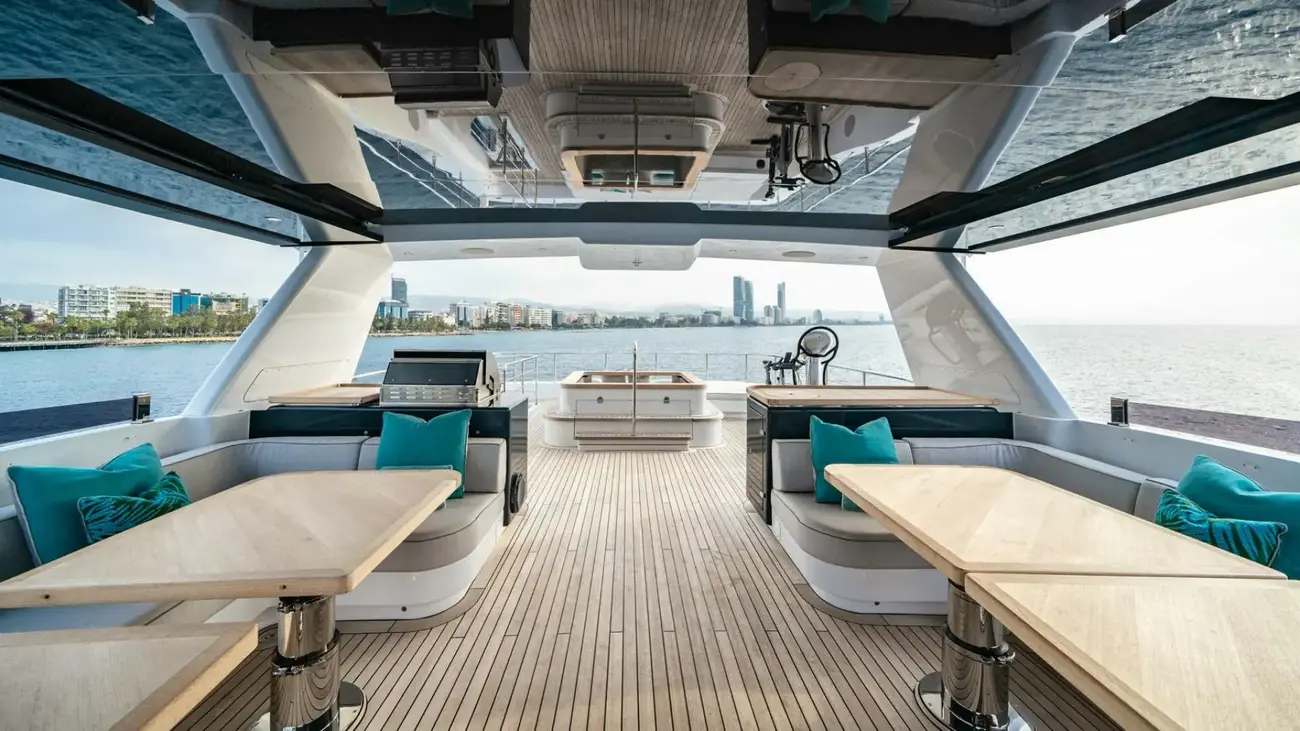

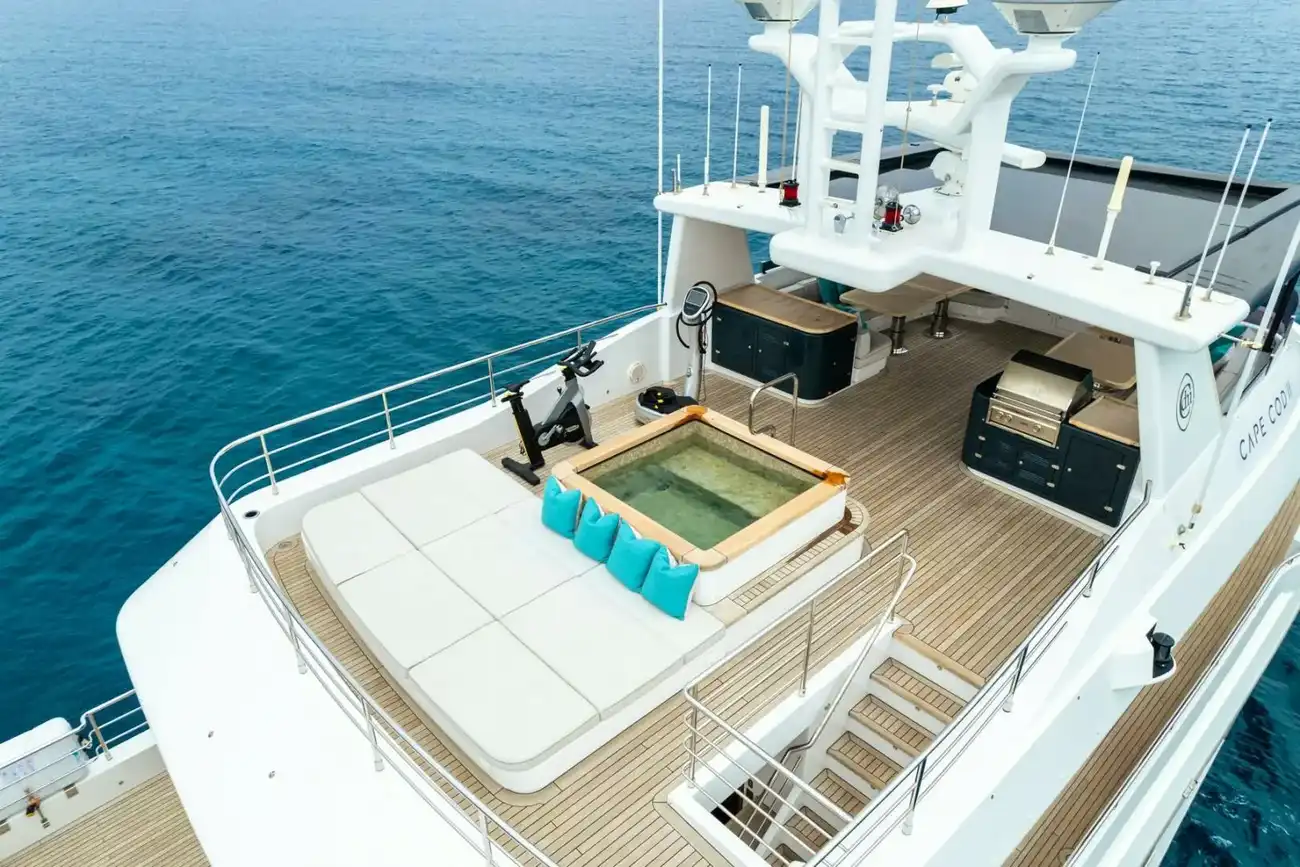

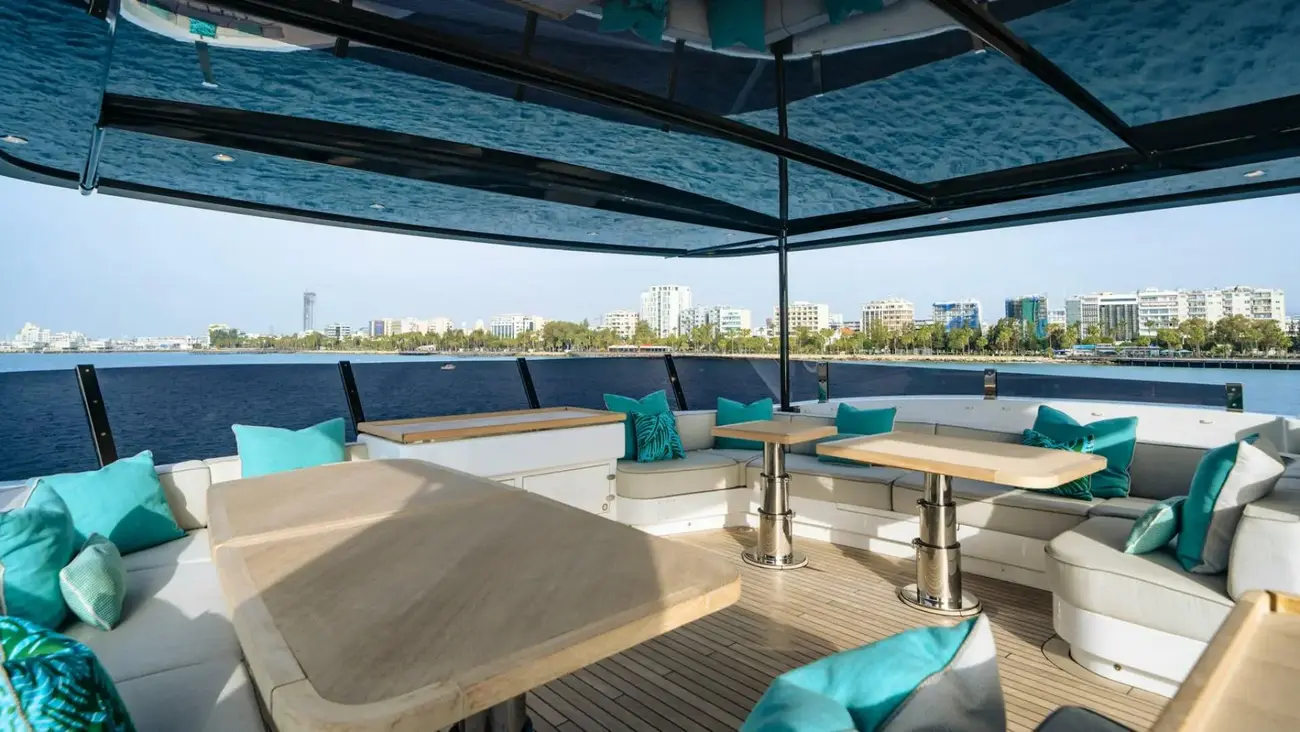

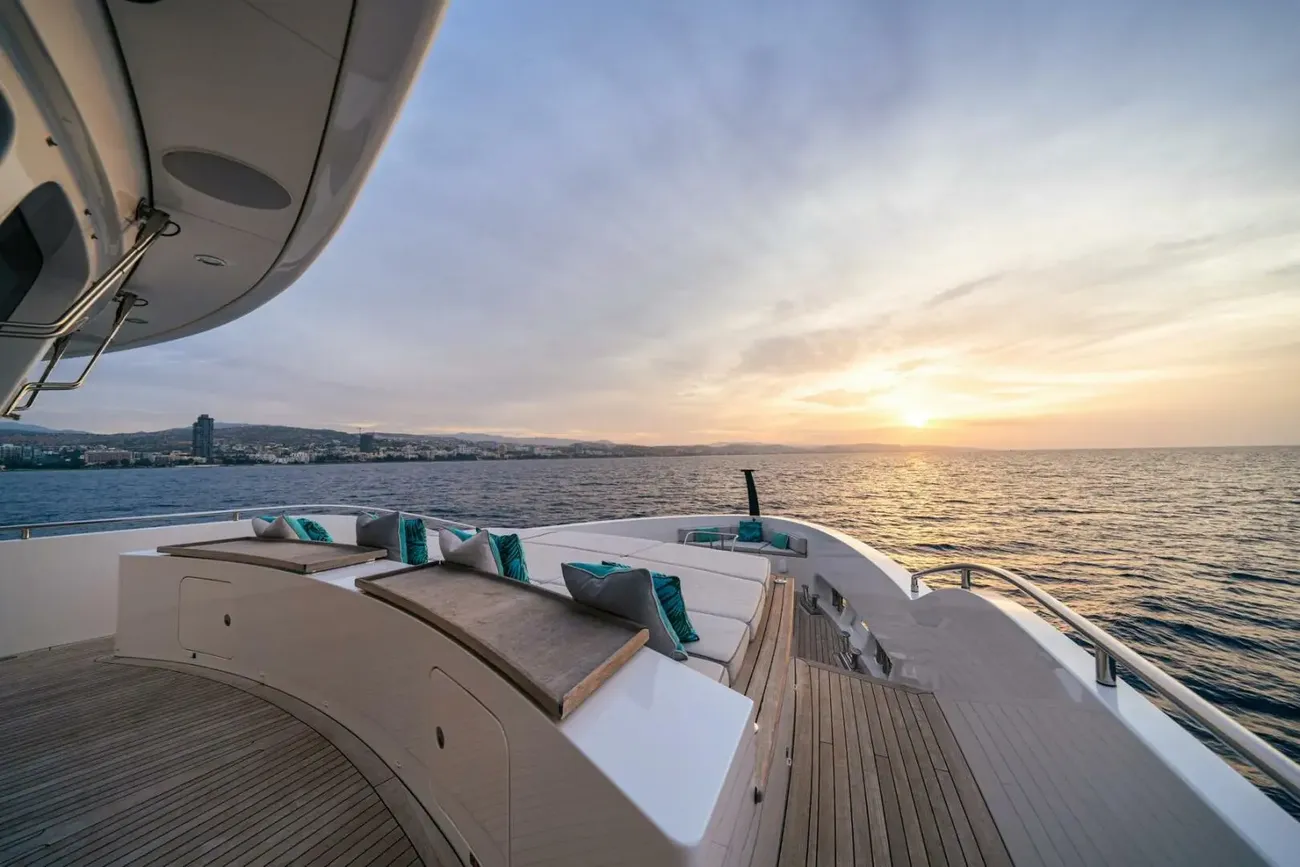

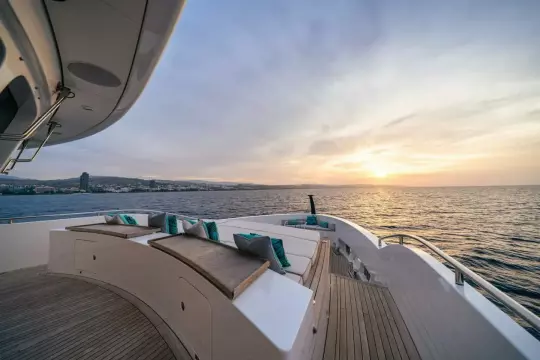

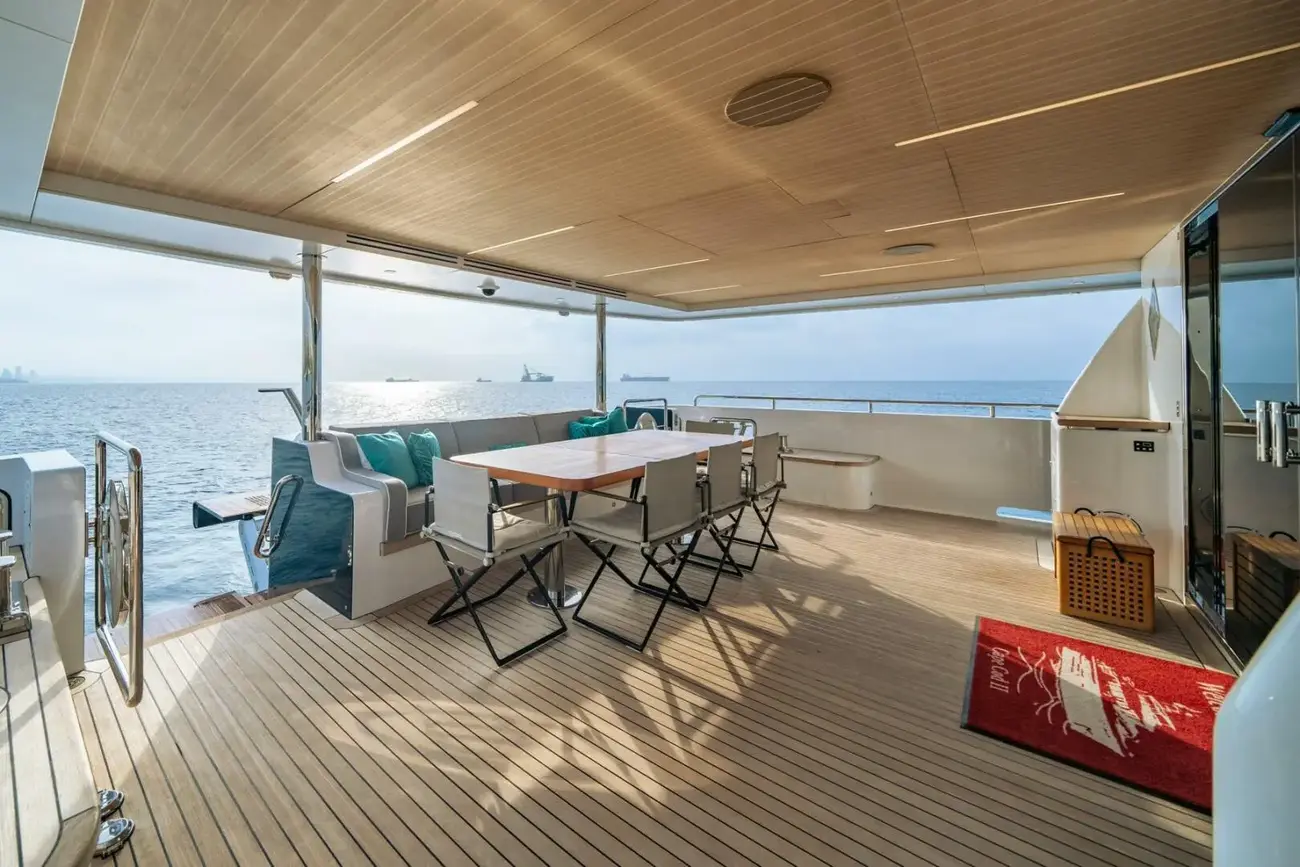

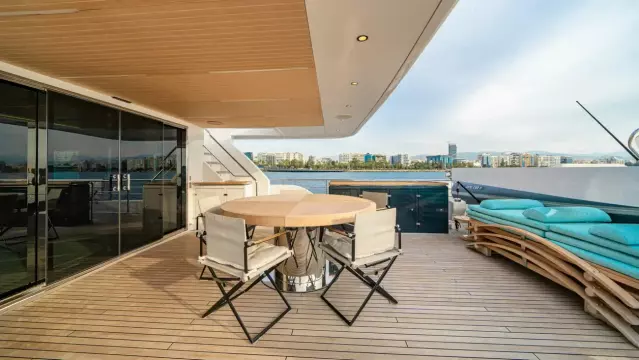

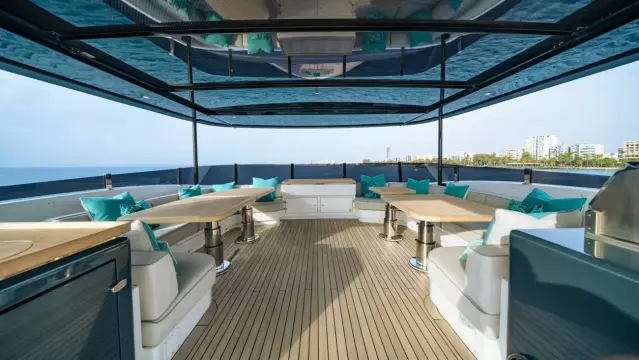

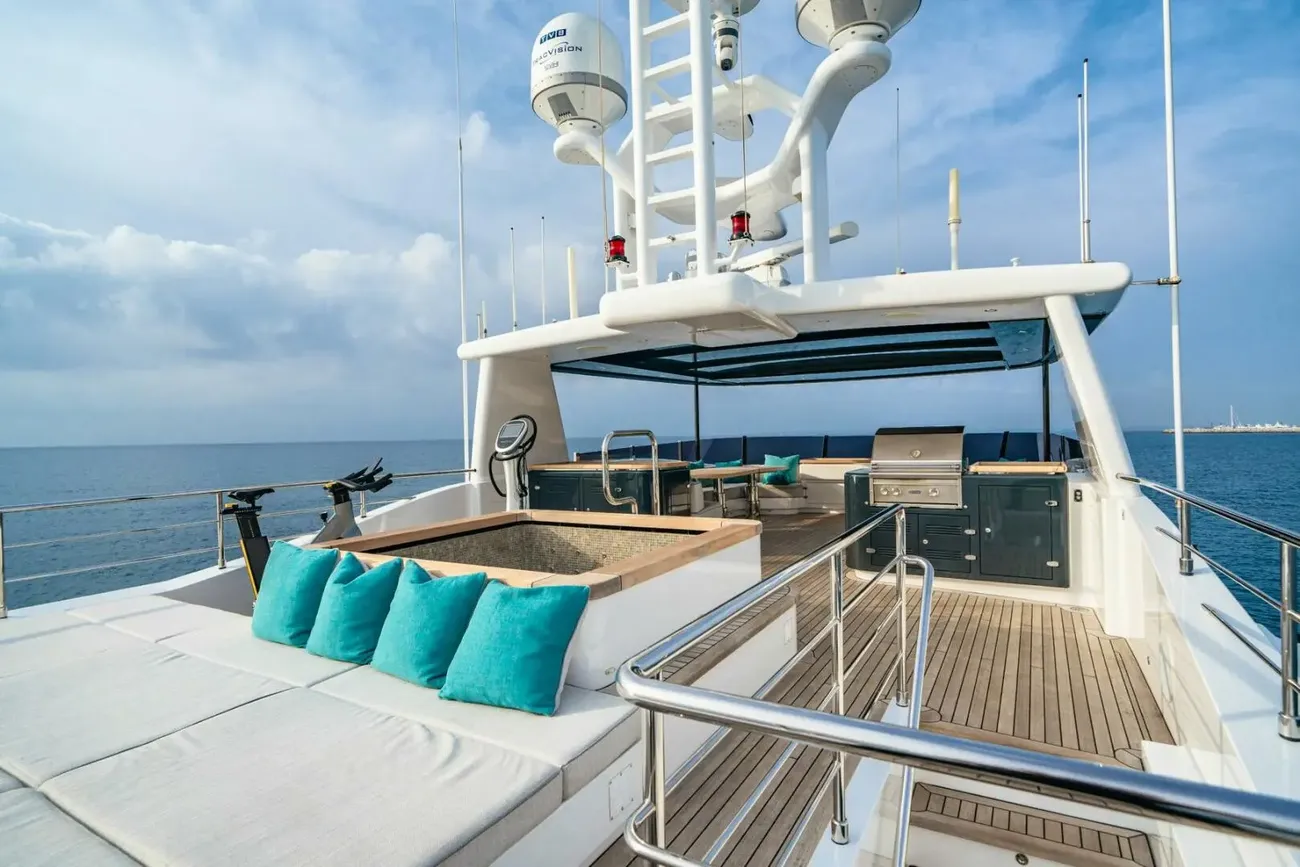

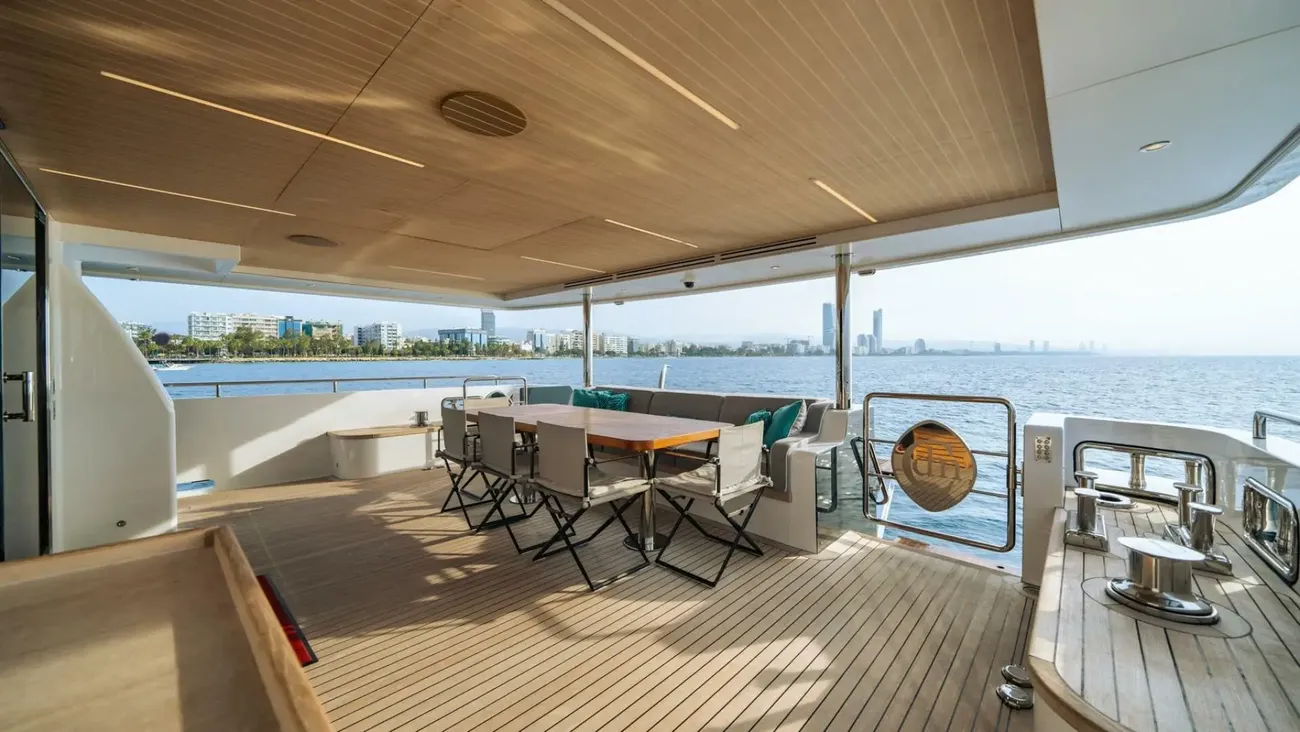

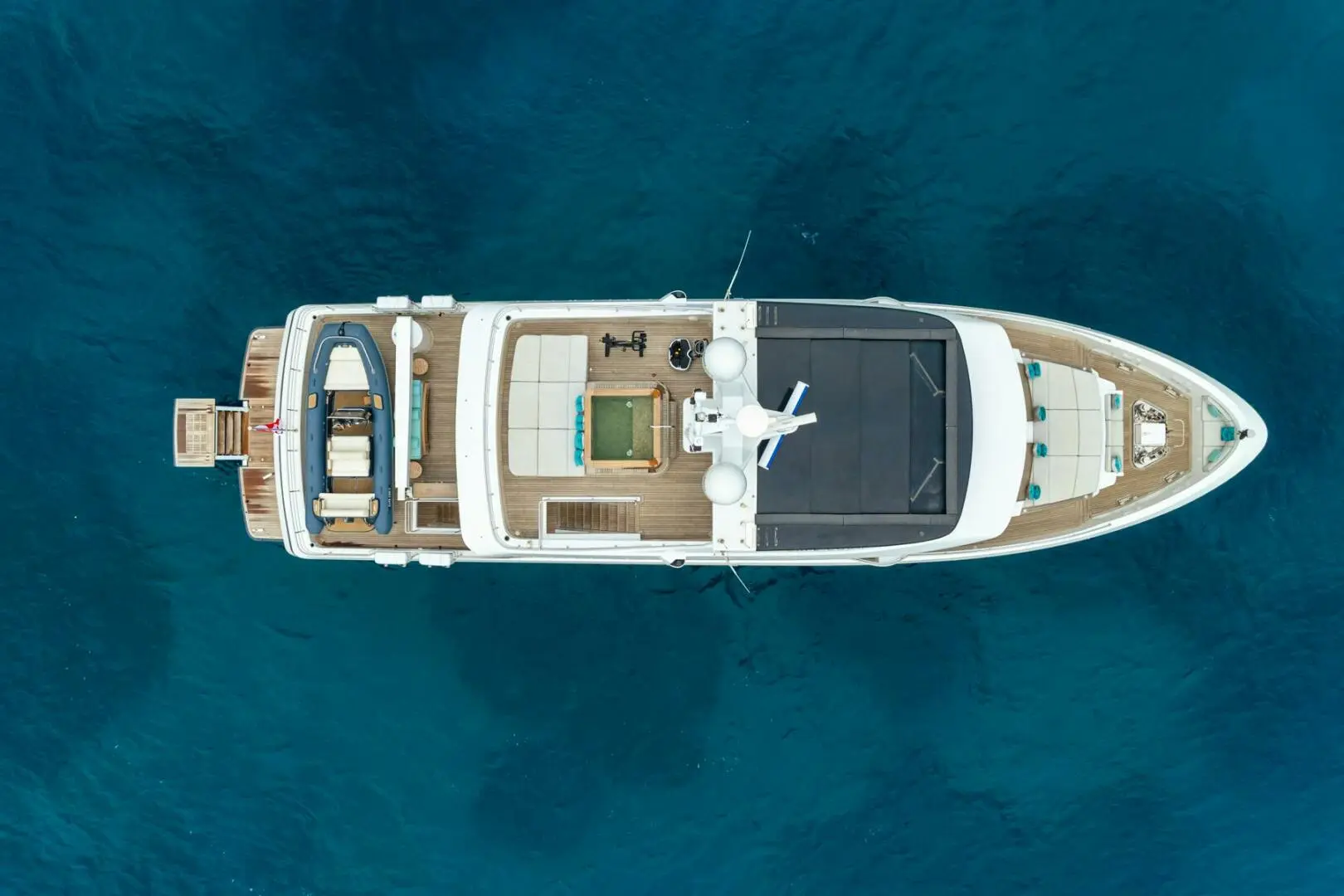

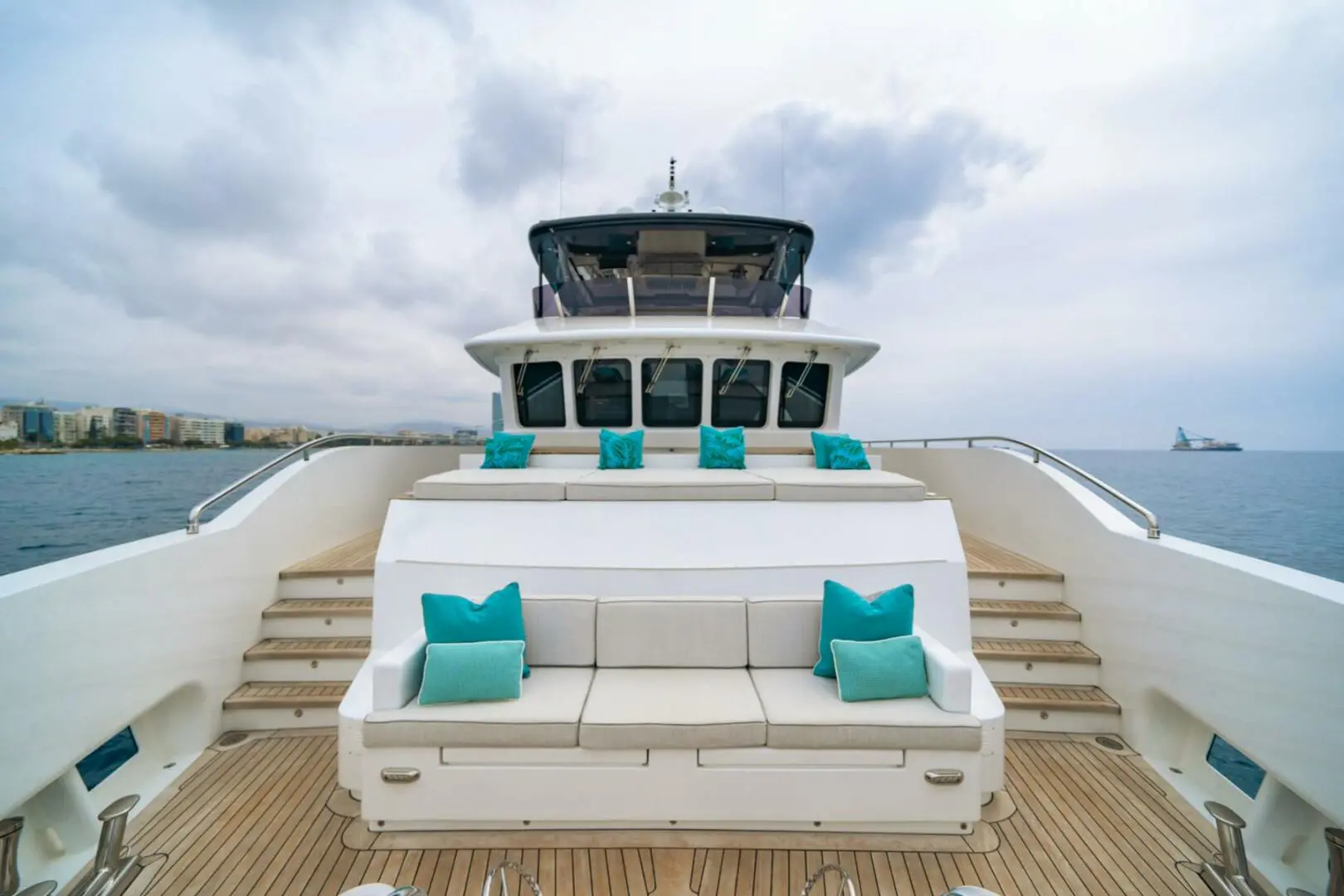

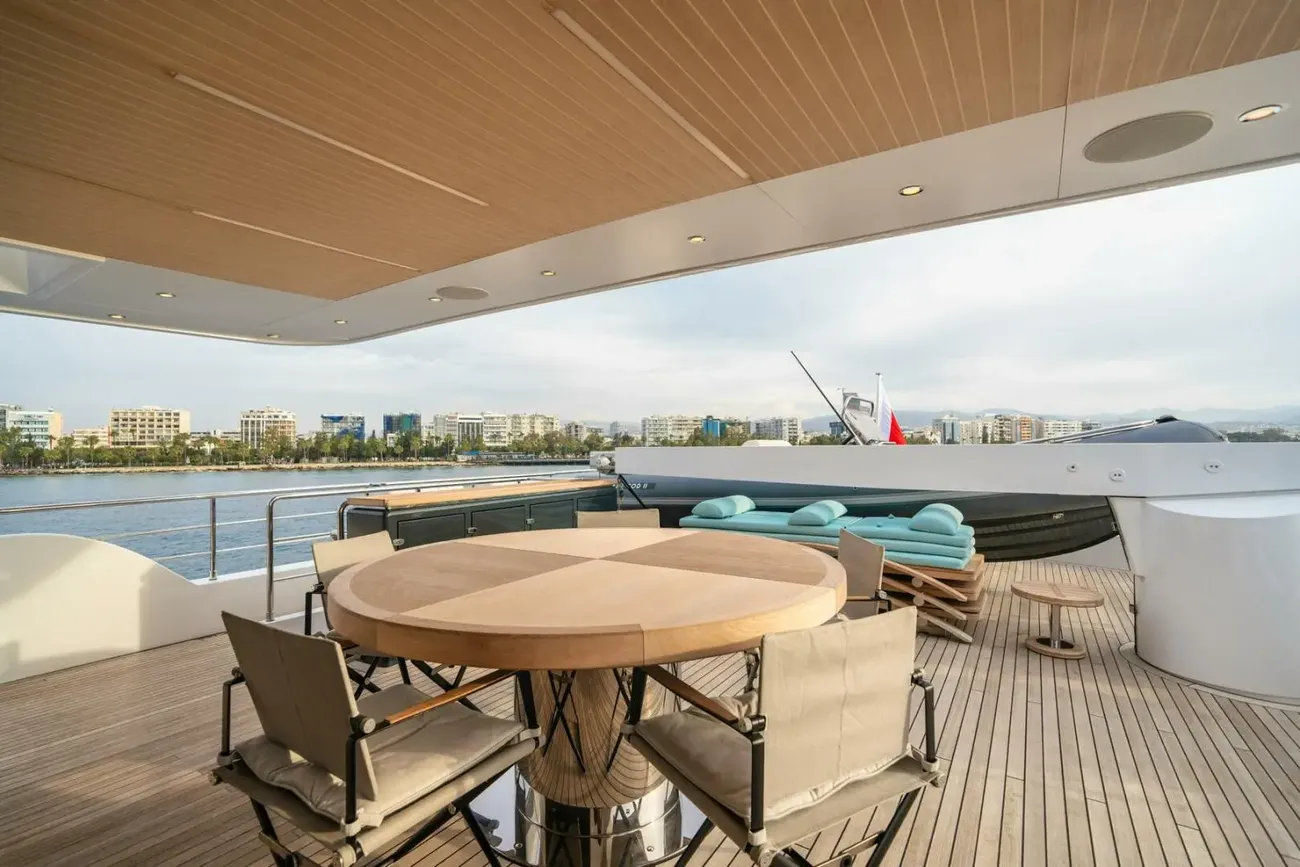

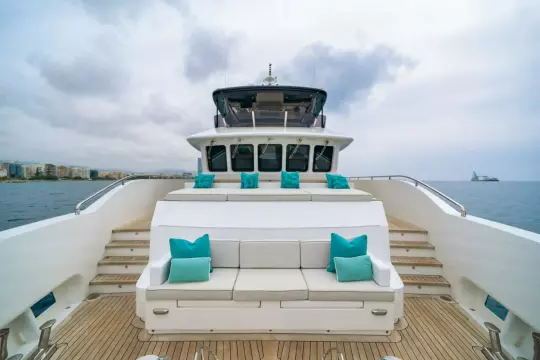

With 102’ in LOA and 246 GT, Cape Cod II offers plenty of volume for the comfort of both guest and crew. Likewise, the exterior areas are generous and flexible in their use. The main deck cockpit can be fully enclosed and air conditioned, so that food can be served either in cold climates or in warm ones. A second and more formal dining possibility is offered on the upper deck where a big round table can seat up to 10 people. Those who love to sunbathe and lazily relax can choose to lie in the sunbed area on the foredeck or join family and friends on the lovely sundeck. Here they can find a second sunbed area, a custom-built pool with bar, an open galley with BBQ, not to mention two tables and seating for all: the perfect set up to gather a large group of people, chatting and cheering while the Owner can captain his boat from the forward helm station.

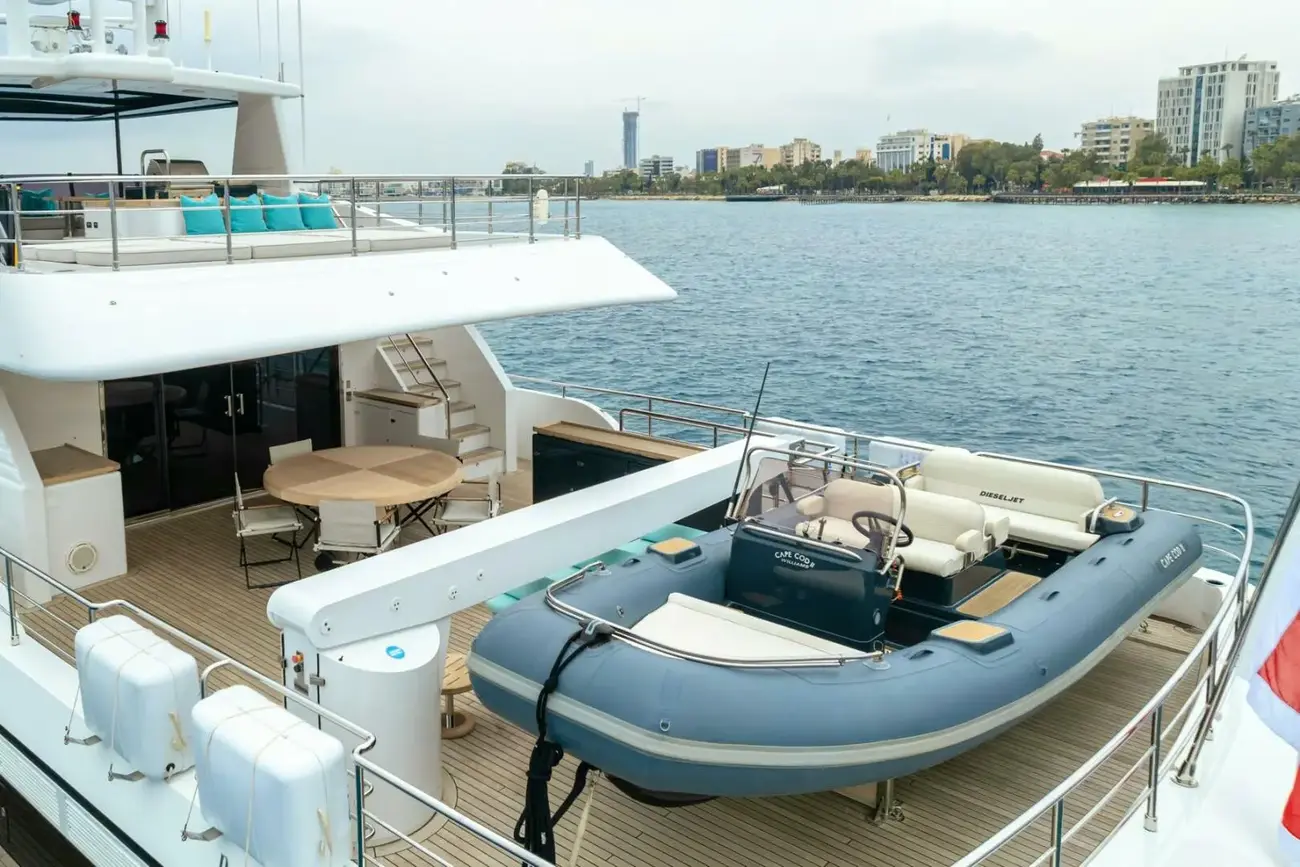

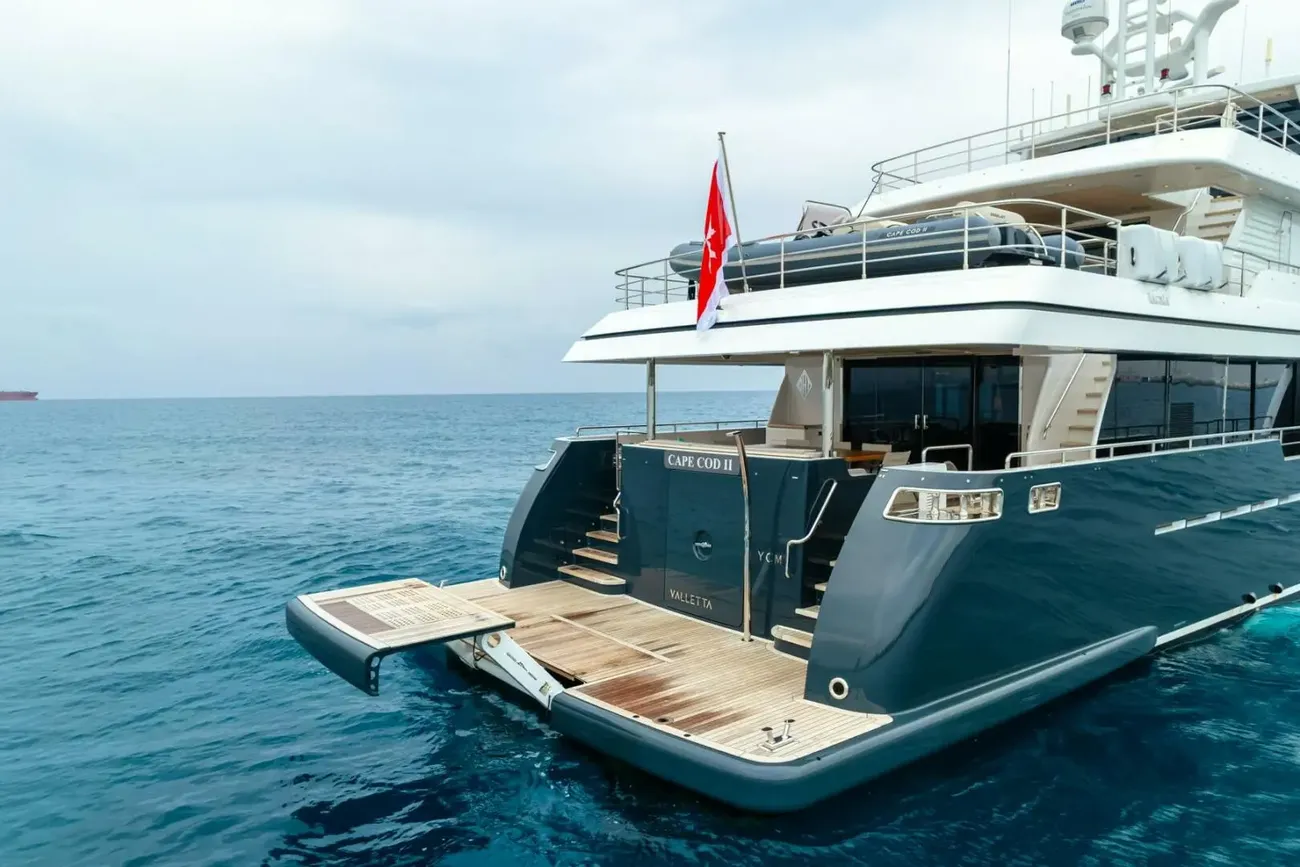

Active Owners and intrepid guests can benefit from the large lazarette which has been fitted to accommodate water toys, diving and fishing gear. Drawing on the Shipyard’s experience of customising all kinds of spaces, the 26’sq area has been wisely engineered to safely store all sorts of equipment. Preferred cruising spots can be reached quickly and in comfort thanks to a Williams 565 tender that can be launched through a 2-ton crane.

The Darwin Class 102 offers exceptional cruising capabilities, with consumption of just 60 litres per hour at 10 knots cruising speed and deliver at this pace a range of 4,500 nautical miles. Cape Cod II has only been used privately, despite being built to LY3 commercial compliance. Most recently, she completed her 5-year class survey in 2024 along with a thorough technical overhaul.

Top Features

• RINA 5-year survey completed 2024


• Range of 4,500nm


• First 102 Darwin with main deck master cabin


• Exceptional build quality and cruising capabilities


• Only private use since delivery


• Built to LY3

Speed & Range

Maximum Speed: 13 knots

Cruising Speed: 11 knots

Fuel consumption: 60 L/H @ 10 knots

Range: 4,500nm @ 10 knots

Capacities

Fuel: 40,000 litres / 10,600 US gallons

Fresh Water: 6,000 litres / 1,585 US gallons

Grey Water: 2,100 litres / 550 US gallons

Black Water: 1,100 litres / 290 US gallons

Bilge: 1,100 litres / 290 US gallons

Dirty Lube Oil: 300 litres / 80 US gallons

Accommodations

Accommodation: 11 guests in 5 cabins

Crew: 6 crew in 3 cabins

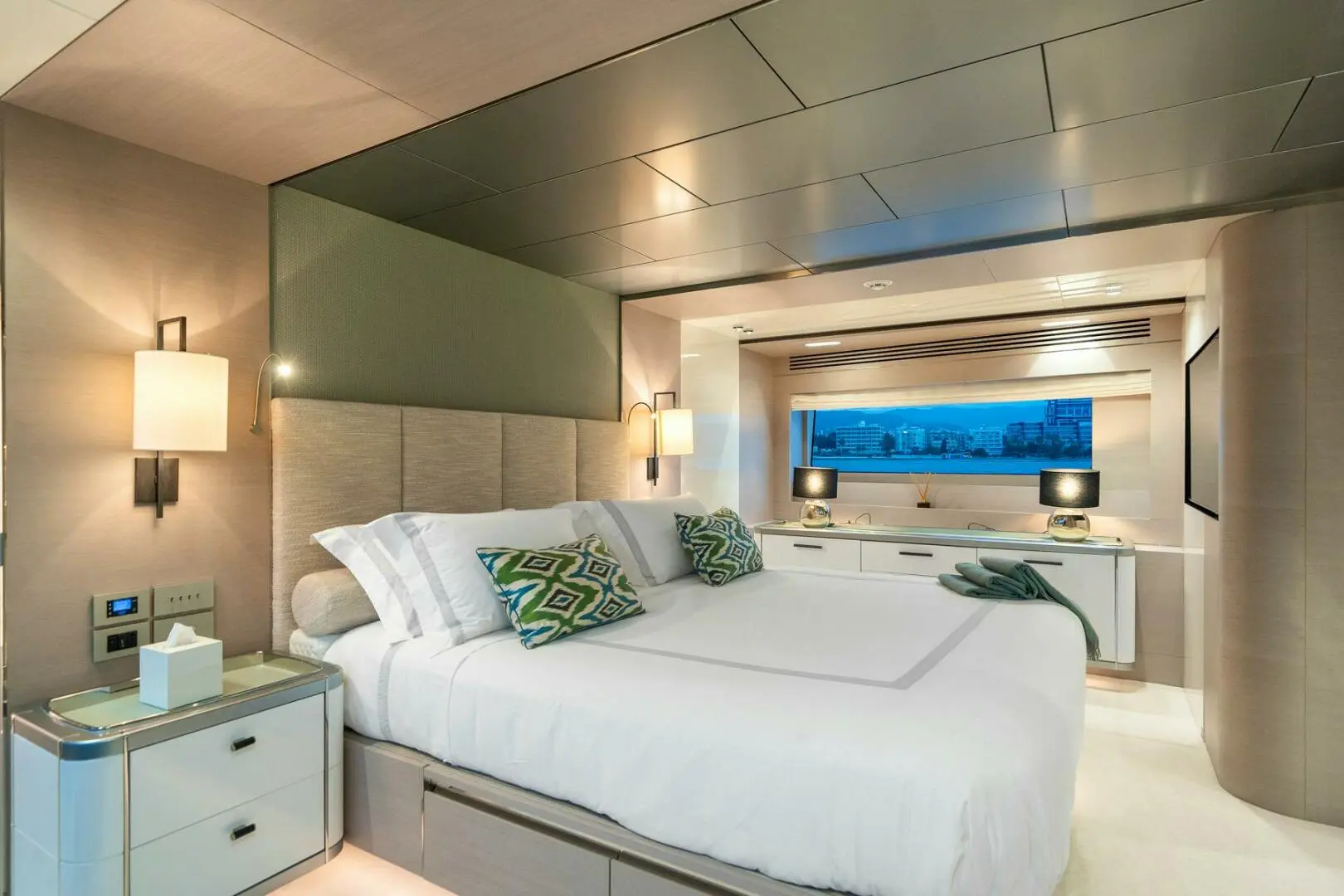

1 x Master cabin (main deck)

2 x Double cabins (lower deck)

2 x Twin cabins (lower deck, one with pullman)

1 x Captain cabin (bridge deck)

2 x Crew cabins (lower deck)

Mechanical Equipment

Engines: 2 x CAT C18 Acert 500kW 680hP

Port Engine Hours: 3,098

Starboard Engine Hours: 3,097

Bow Thruster: Electric 52kW

Stabilizers: CMC electrical (zero speed & underway)

Generators: 2 x 55kW Kohler

Electrical Output: 50 Hz 400V

Port Generator Hours: 6,780

Starboard Generator Hours: 6,760

Shore Power: Asea 50/60 Hz 100v / 400v

Drive: Shafts, both replaced 2024

Gearboxes: ZF

Steering: CMC rudders

Auxiliary Equipment

Underwater Lighting: 6

Water Maker: Idromar IDM 9 Duplex 7,200 L/Day

Water Treatment: Idromar Sterilize UV SH 8000

Water Pressure: 2 x Feit

Desalinisation: Idromar Combe

Sewage: Selmar black water treatment

Fuel Filters: Separds

Fuel Oil Separator: Alfa Laval

Tender Fuel Pump: Located in lazarette

Bilge Water Separator: Poseidon

Dirty Oil Pump: Indemar GP 707 24 Reverso

Firefighting & Bilge Pump: 2 x Electric Feit Pompe

Emergency Pump: 1 x Diesel pump in lazarette

Black Water Treatment: Selma Blue Sea 2500 Plus

WC: Tecma

Discharge Pumps: 2 x Feit

Airconditioning: 2 x Tropical chiller Condaria

Boiler: 4 x 8kw

Air Compressor: EAC MLR 40 10 Tri DD + Dryer MSR 6

Garbage Locker: 2 x Frigoboat SL46/121

ER Ventilation: Feit

Deck Equipment

Anchor Windlasses: 2 x Muir VRC 6000

Docking Capstan: 2 Muir VC 4000

Anchors: 2 x 230 Kg

Anchor Chains: 2 x Poseidon 16mm (140m new 2024)

Crane: Sanguinettti 2T

Passarelle: Bitecnomare Electro-hydraulic “Magnum Due” 5.3m

Stern Boarding Transformer: Opacmare

Exterior Paint: Alexseal

Bottom Paint: Hempel

Jacuzzi: Sundeck

Navigation Equipment

Monitors: 4 x Hatteland 19”

X Band Radar: ARPA FAR 2117BB 12kW IMO

S Band Radar: Furuno NAVNET 3D

Depth Echo Sounder: Furuno DFF1 / Wassap

Magnetic Compass: Furuno PG500

SAT Compass: Furuno SSSC50

Autopilot: Furuno Nav 70

Rudder Angle: Kobelt

GPS: Furuno GP170

DGPS: Furuno GP33

AISL Furuno AIS Class A FA 170

NAVTEX: Furuno NX700

Wind Instruments: Furuno

Horn: Kahlenberg

Search Light: Sanshing

Night Vision Camera: FLIR

Navigation Watch Alarm: Furuno BR510

Internet: Star Link / Peplink 5G

Inmarsat C: Furuno Felcom18

Electronic Charts: Timezero & Navnet 3D

VHF: Furuno DSC Class A GMDSS

Telephone System: Panasonic KXTS500

SART: ACR Pathfinder Pro

SSB: Furuno FS 55475C

Antennas: Tracvision TV8 KVH

Safety & Security

CCTV: Dahua 5 x Camera

Fixed Firefighting: 4 x Aerosol

Firefighting Tanks: 2 x Draeger

EEBD: 4

Masks: 6 x smoke

Extinguishers: 25 (Lithium, Foam, CO2, ABC Powder)

Fireman Suits: 2

Gas Detector: Consilium

Burglar Alarm: Bentel

Life rafts: 4 x Arimar A Pack 10 Person

Lifejackets: 20 x Valerna Giorgio 150nt. 4 x Infant

Immersion Suits: 2 x Adult, 2 x Children

Life Rings: 5

EPIRBS: Jotron Tron 60S

Flares: 12 (Smoke, Hand & Rocket)

Line thrower: 2 x PainWessex 250

Entertainment Equipment

Owner’s Cabin

TV 50” Samsung HD Smart

Lifestyle 235 Bose system

DVD Denon

Apple TV

Jacob Jensen Telephone

Main Salon

Russound multi-channel amp

Subwoofer 300W

2 x Bose 130W speakers

Apple Airport Express

Sonos Sound System

Jacob Jensen Telephone

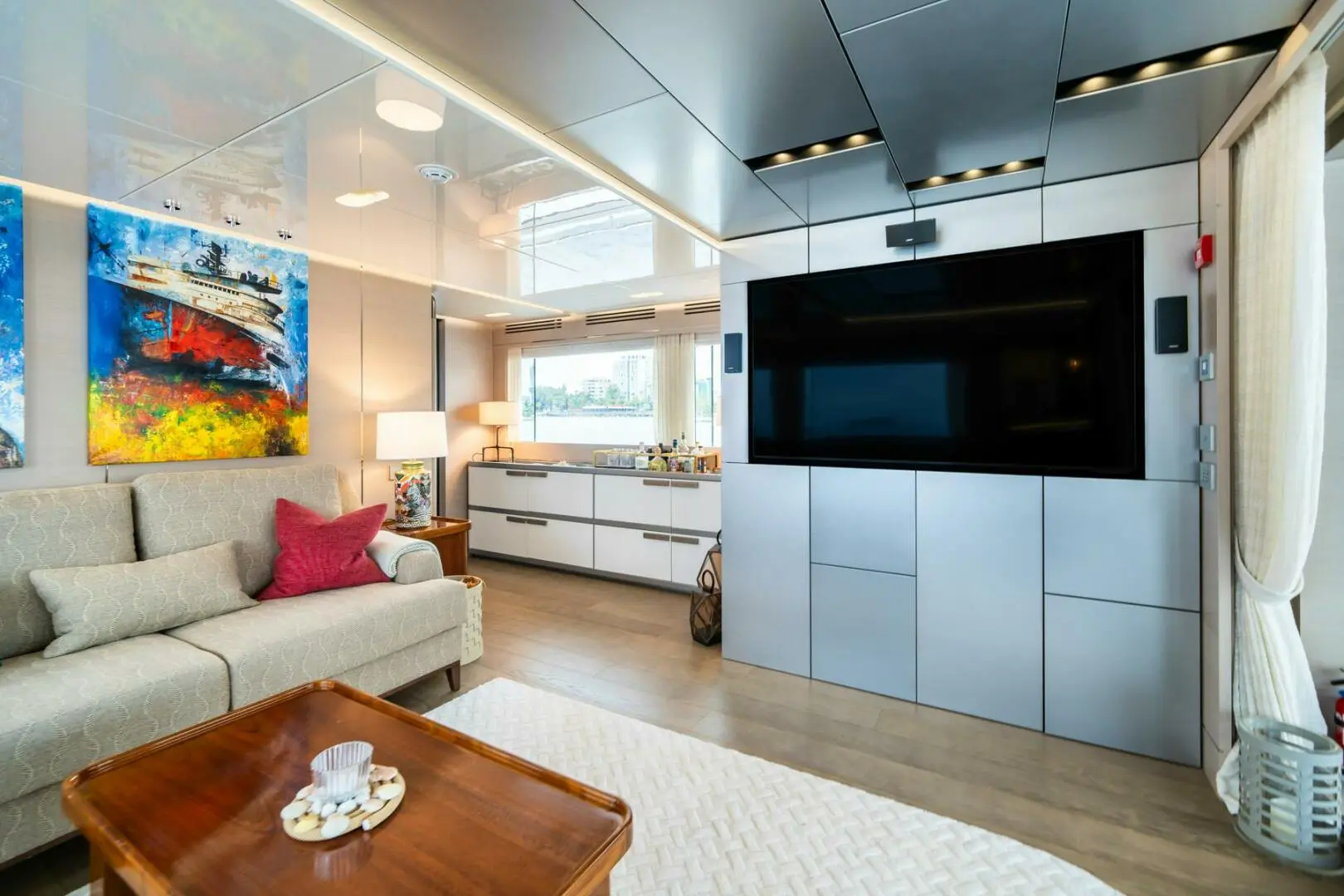

Sky Lounge

TV 65’’ Samsung full-HD Smart TV

Lifestyle 525 BOSE system

DVD Bluray Denon

Apple TV

Telephone Jacob Jensen

5 x B&W Speakers

Sonos Sound System

VIP Cabins

TV 40’’ Samsung full-HD smart TV LED

Russound multi-channel amp

Apple TV

2 x Bose 50 W speakers

Jacob Jensen Telephone

Guest Cabins

TV 22’’ Samsung

Russound multi-channel amp

Apple TV

2 x Speakers Bose 50 W

Jacob Jensen Telephone

Bridge

Russound multi-channel amplifier

Airport Express Apple

2 x Speakers 80 W

Panasonic / display LCD Telephone

Dinette

TV 22’’ Samsung

Russound multi-channel amplifier

2 x Speakers Bose 50 W

Apple TV

Lazarette

Russound multi-channel amplifier

2 x Speakers JL Audio 80 W

Apple Airport Express

Galley

Russound multi-channel amplifier

2 x Speakers 80 W

Apple Airport Express

Telephone Jacob Jensen

Main Deck Aft

TV 50’’ Samsung full-HD smart TV led + pop down system • Apple TV

Apple Airport Express

Amplifier multi-channel Bose 4x250 W

2 x Speakers 130 W

Bridge Deck Aft

Apple Airport Express

Amplifier multi-channel Bose 4 x 250 W

2 x Speakers 130 W

Sundeck

Apple Airport Express

Amplifier multi-channel bose 4x205 W • Subwoofer Jl-Audio Marine 250 W

2 x Speakers 130 W

Galley & Laundry

Galley

Miele hob KM 6381 – 90cm –

Miele cooker hood DA

Miele dishwasher PG 8133 MAR SCVI –

Miele fridge/freezer KFN 37432 iDE –

Miele fridge K 37673 iD –

Miele freezer FNS 37402 I –

Miele oven + microwave H 6600 BM –

Miele oven H 6890 BP –

Miele wine cellar KWT 6321 UG

Dinette

Fridge FR 80 RC

Lazarette

Miele washing machine WMH 121 WLW - 11MH1213

Miele tumble drier TKR 650 WP chrome 9kg. - 12KR6502

Miele combo washing- drier WTZH130 WPM

Freezer

Sundeck

Lynx BBQ LP 0-0C27

Isotherm icemaker Ice Drink Clear

Frigonautica fridge FR 50 RC

Frigonautica fridge FR 80 RC

Bridge Deck Aft

Isotherm fridge drawer box DR 105 L Inox

Barline icemaker B3015

Main Deck Aft

Isotherm freezer Cruise 90 Inox

Isotherm fridge drawer box DR 105 L Inox

Tender & Toys

Tender: Williams 565 Diesel

Toys: 2 x Seabob

Dive Equipment: 1 Set + Compressor
