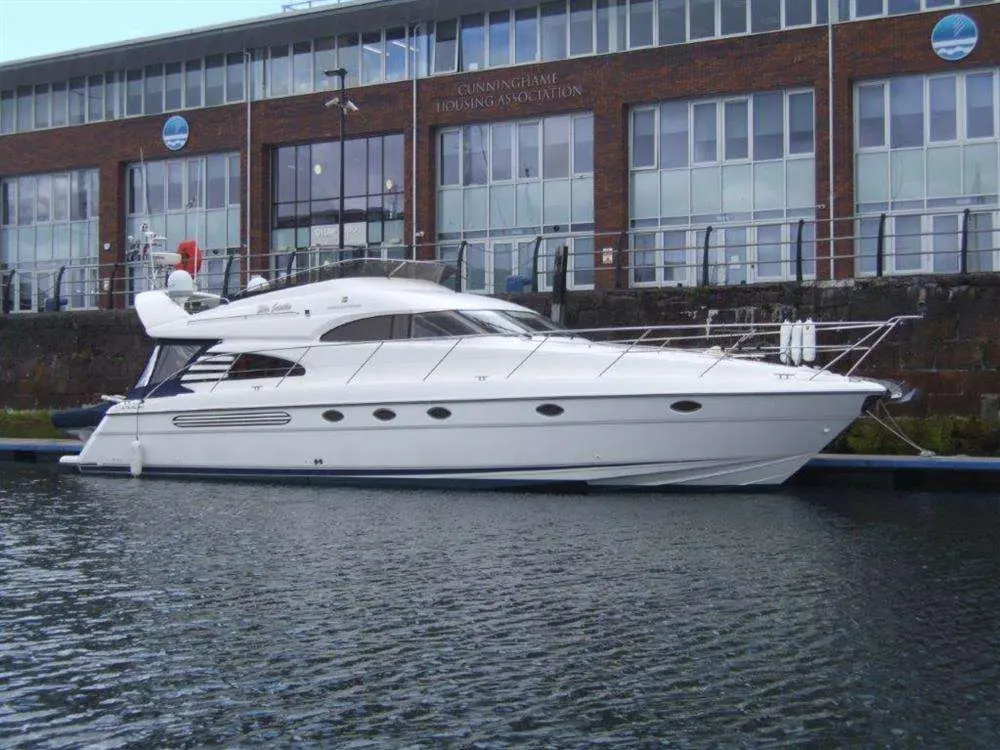

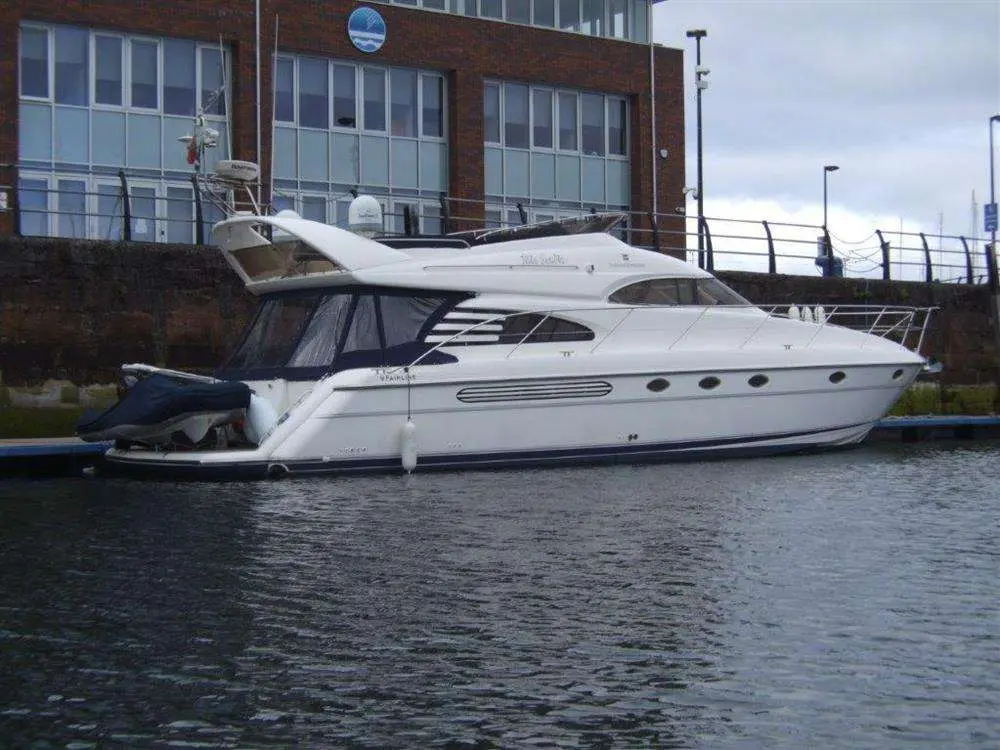

Fairline Squadron 55 Mia Sandi

Summary

'Mia Sandie' is an excellent example of this popular Fairline motor yacht. She is equipped with a pair of Volvo D12's (700hp each) and comes with an accomplished specification.

Very low hours for her age and very well looked after.

This low hours Squadron 55 is a must-see if you are in the market for a powerful flybridge motoryacht. Fitted with Onan Generator, Eberspacher heating to all cabins, and a full Electronics package.

Viewing highly recommended.

Specification

'Mia Sandie' is an excellent example of this popular Fairline motor yacht. She is equipped with a pair of Volvo D12's (700hp each) and comes with an accomplished specification.

Very low hours for her age and very well looked after.

This low hours Squadron 55 is a must-see if you are in the market for a powerful flybridge motoryacht. Fitted with Onan Generator, Eberspacher heating to all cabins, and a full Electronics package.

Viewing highly recommended.

DESCRIPTION

This low hours Squadron 55 is a must see if you are in the market for a powerful flybridge motoryacht. Fitted with the twin Volvo Penta D12 700 HP engines. Fitted with Eberspacher heating to all cabins and heads cabins. Her elegant poise and purposeful lines owe much to her illustrious sisters, but the Fairline Squadron 55 has some distinguishing features of her own. Note the curved aft doors and the unique, scooped shape of the side windows. Moving about the Squadron 55 is safe and easy. There's an internal staircase from the flybridge to the bridgedeck, and wide side decks forward or to the saloon and cockpit area. The extra-long flybridge provides a spacious, open-air deck saloon which includes a semi-circular dining area with a bar, fridge, sink and barbecue griddle. There is also a full-width aft sunbed and double and single helm seats. With direct access by way of the internal stairway, or from the cockpit up the teak-tread ladder, this is a favorite part of the boat for owners and guests alike. At the stern, comprehensive amenities for aft boarding and swimming have been made possible by the design of the large, extended bathing platform. A hydraulic telescopic passerelle with built-in dinghy-handling facilities; plenty of rope, fender and stowage; and a hot and cold transom shower are also found here. The spacious and relaxing aft saloon includes a large and sociable semi-circular seating area, an elegant sideboard with TV and VCR, and a comprehensive bar with an icemaker. The separate dining area is on the bridgedeck, with excellent visibility through the main screen and side windows. The central, low-level galley, equipped to the highest standard, also has easy access to the well-fitted utility room complete with an ironing board. There is also a very convenient internal access door to the engine room from the utility room. Guest accommodation is extensive as well as beautifully appointed. There's a master suite forward and two twin-bedded guest cabins, plus two large washrooms with separate circular shower enclosures. An optional double aft crew cabin can also be chosen.

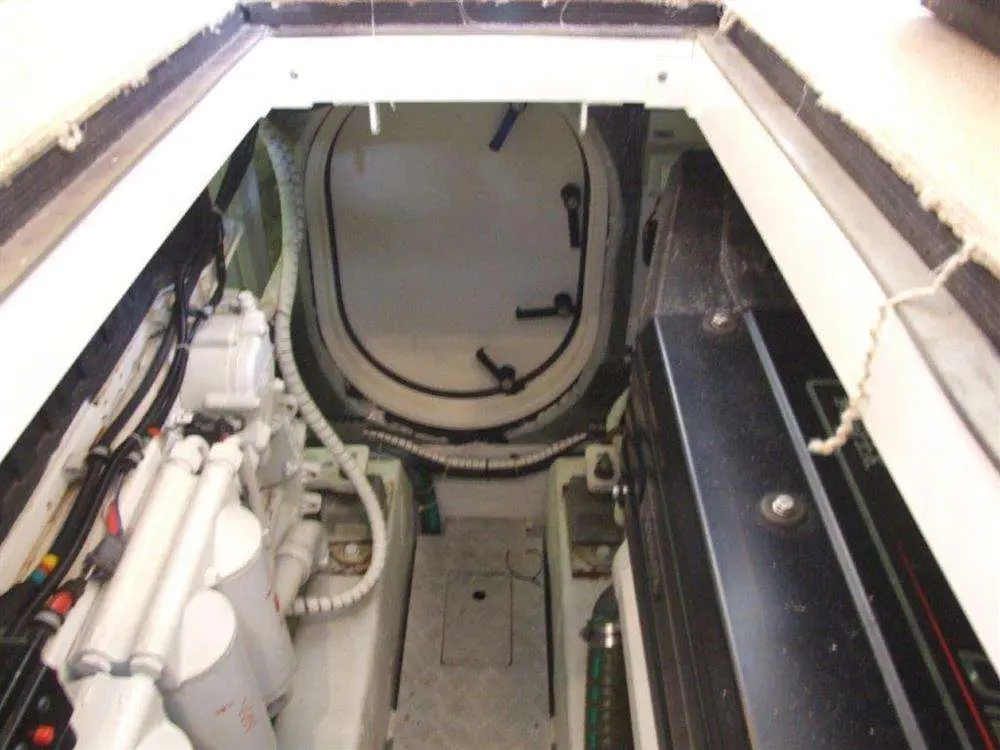

MECHANICALS

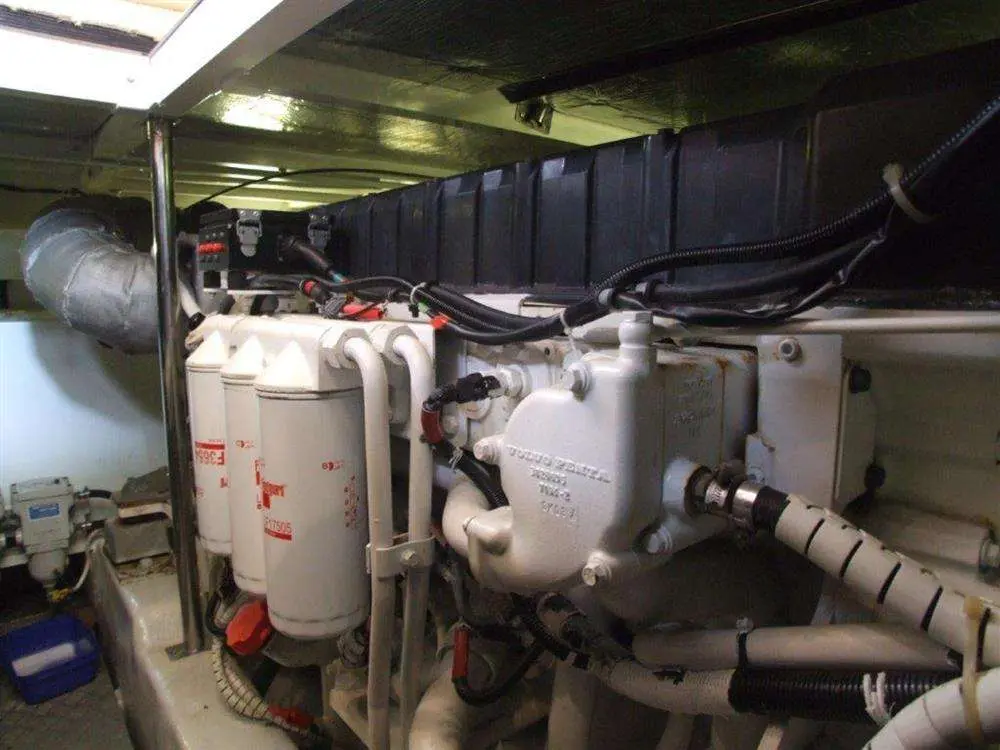

ENGINES

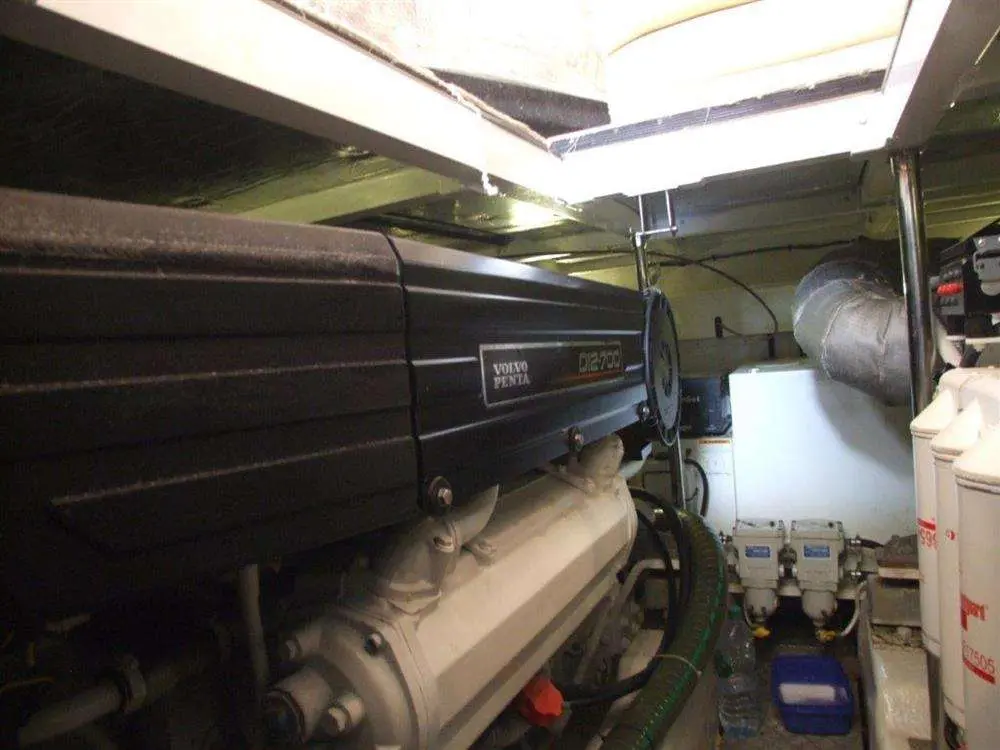

Twin Volvo Penta D12 700 HP engines

Access through utility Room

Engine/Generator Room Soundproofed

Water Cooled Engine Exhausts with silencers and side outlets

Aerodynamically designed engine air intakes

Automatic Engine Room Fire Extinguishers

Stainless Steel TEMET Shafts

Contra-rotating Manganese Bronze Propeller

Manganese Bronze 'P' Brackets

Balanced Manganese Bronze Rudders

Cathodic Protection

Automatic Bilge Pumps for Engine and Rudder Bays and Forward Area (Manual 'on' override for all pumps)

High Capacity Emergency Manual Bilge Pump System with Changeover Valves

Electric Engine Room Ventilation Fans

Engine Room Lights

Exhaust Overheat Warning System for both Engines

Dripless Shaft Seals

Seacocks on all inlets/outlets below waterline

FUEL SYSTEM

Twin 240 Gallon (1091L) marine grade alloy fuel tanks give 480 gallons fuel capacity in total.

Changeover valve system to permit each engine to draw fuel from and return fuel to either tank

Individual Fillers and Vents

Aircraft grade fuel filler and vent pipes

High capacity water separators and fuel filters

Audio/Visual 'water present in fuel filters.

All 12V, 24V and 240V circuits protected by circuit breakers on main electrical load control panel

12V = Voltage dropper from domestic batteries provides power where necessary for navigation and radio equipment only.

24V = 2 pairs of 180 a.h. batteries supply domestic services and port engine starting. These batteries accept charge from both engines. One pair of 180 a.h. batteries exclusively for starboard engine starting. Battery coupling system permits either battery to start either engine.

240V - 7.0 kW 240V Onan Generator plus Shorepower Supply. Socket outlets in aft saloon, dinette, galley, engine bay and cabins. Spare circuit breakers for optional equipment. All sterngear, engines, fuel tanks etc, electrically bonded, 60 amp regulated charger. polarity check and earth leakage trip protection system.

Isolating switches to all batteries

Blue Lights to cockpit and bathing platform - floor level

Blue lights to flybridge floor level x 4

White Lights to flybridge arch x 2

Single power socket to Saloon x 2

Radio/CD player

Matching Aerials to Arch

Twin Dome TV + Matching Dome

WATER SYSTEM

2 x 55 Gallon Water tanks

16 Gallon (73L) Calorifier hot water system

1kW 240v immersion Heater

Automatic Pressurised Supply

Manual override switch at lower helm

CONSTRUCTION

Designed by Bernard Olesinski and the Fairline Design Team. Deep 'V' forward; 18 degree deadrise aft, Isophthalic gelcoat backed by an isophthalic resin-rich power-bound glass mat. All gelcoat and glassfibre is laid up by hand, incorporating chopped strand glass mat and unidirectional and woven rovings.

Transverse and longitudinal strengthening stringers throughout hull. Full length moulded spray deflectors.

The integral bathing platform gives the boat a longer waterline length for improved performance, particularly at reduced power settings.

Engine bearers are moulded into the hull. The propellers are set in semi-tunnels enabling the engines to be located further aft, also reducing draught and improving efficiency by reducing the shaft angle. Hull/deck join bonded and bolted.

The deck incorporates polyurethane foam cores for high strength and excellent thermal insulation.

An 8hp bowthruster is fitted with controls at both helm positions.

White hull and superstructure

Navy Blue and Silver waterline trim

DECK GEAR

• Stainless Steel Stemhead Roller


• Delta Anchor with 25 fathoms calibrated chain


• Twin Stainless Steel Bow and Stern Cleats


• 2 x pairs Stainless Steel Spring Cleats


• Stainless Steel Cleat and Grabrail on each Aft Wing


• Stainless Steel Pulpit, Pushpit and Side Deck Rails with solid second rail and Fender Baskets


• Stainless Steel Flybridge Side Grabrails


• Stainless Steel Rubbing Strake


• Full Set of IMCO Navigation Lights


• Riding Light


• Water and Fuel Fillers


• Deck Light


• Moulded Slip-resistant Deck Surface


• Sunbathing Area on Foredeck Upholstered with Cushions


• Teak-Laid extra large bathing Platform with concealed Transom Ladder and Dinghy Stowage


• Hydraulic Passerelle for access and Dinghy Handling


• Electric Anchor Winch


• Hot and Cold Transom Shower


• Twin Horns

AFT DECK

• Self-draining Cockpit


• Teak-Laid Floor


• Access hatch to optional aft crew cabin


• Self-draining wet locker


• Access hatch to large stowage hold (supported on pneumatic struts)


• Twin transom gates to bathing platform


• Twin warp stowage lockers


• Cockpit Lights


• Manual bilge pump locker


• Stainless Steel access ladder to flybridge


• Boat Hook


• Heavy Duty 12V Socket


• Selection of Fenders and Mooring Warps

UPPER AND LOWER HELMS POSITIONS

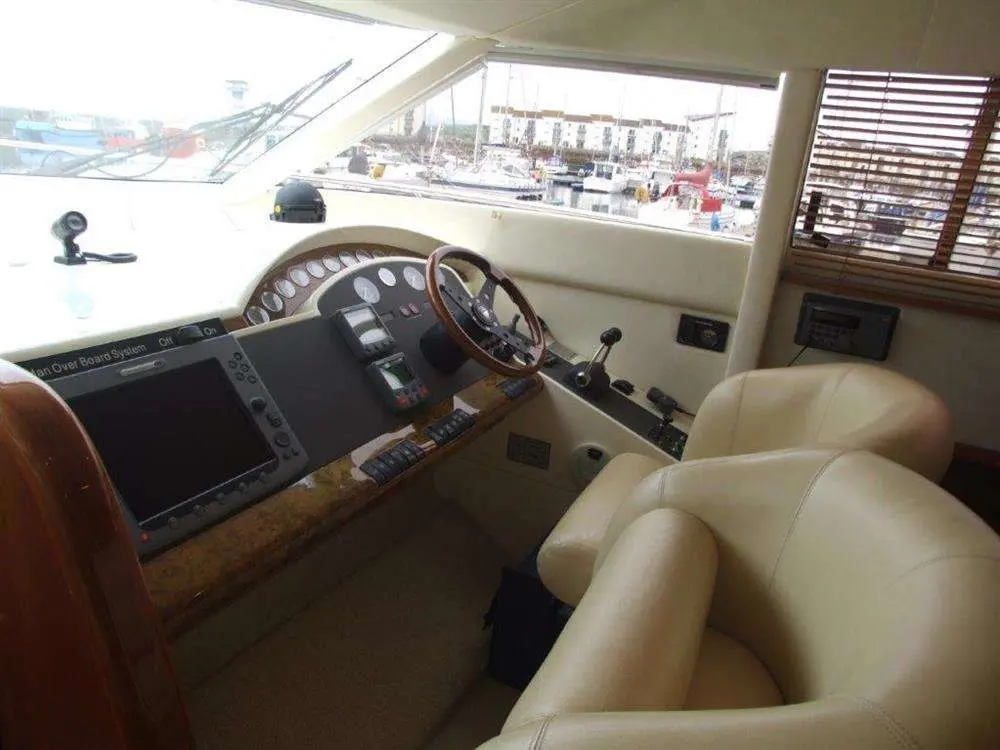

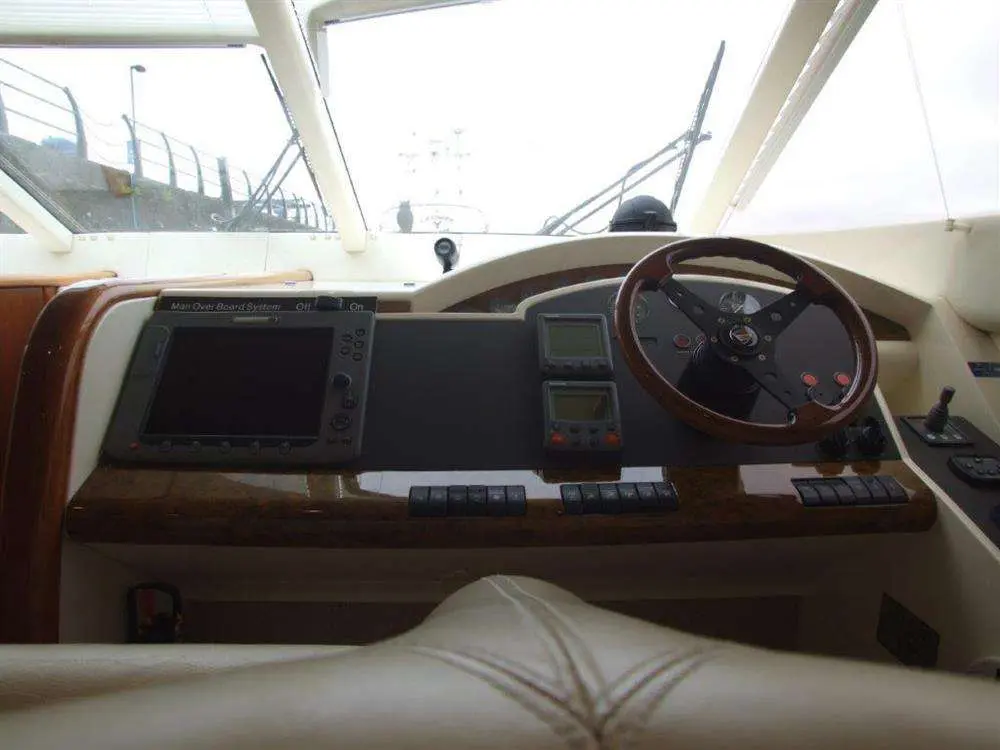

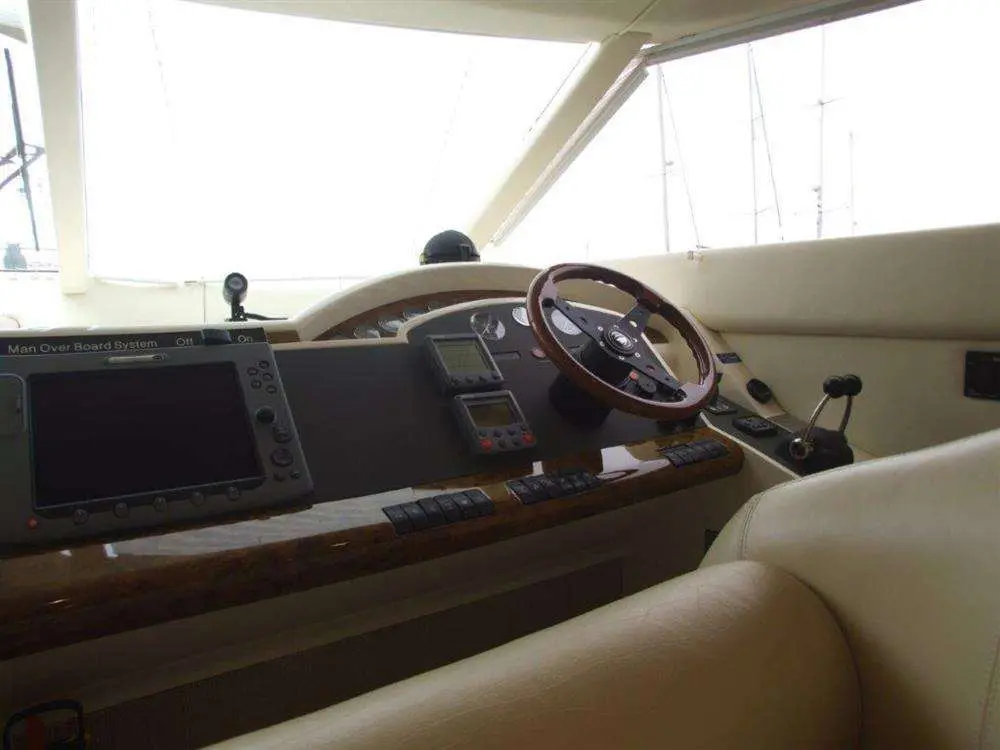

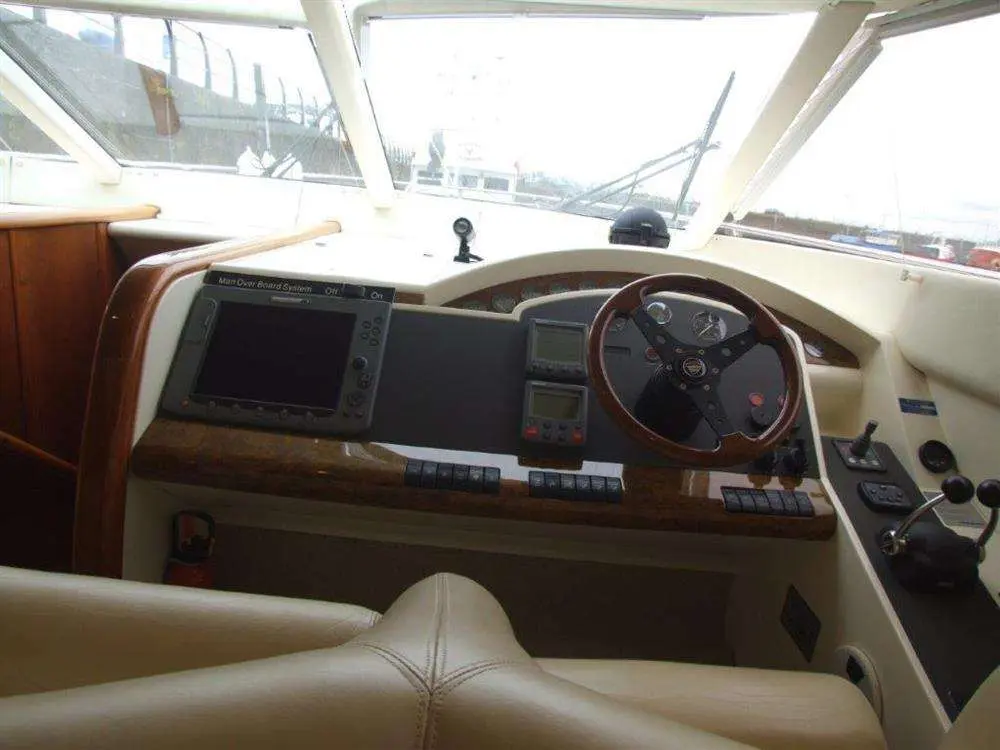

LOWER HELM

• Stainless steel framed windscreen with opening side panels


• Madrona Finish Instrument Panel


• Double Helm Seat


• Raymarine E120 Multifunction Display: Radar/Chart/Sounder


• 1 Camera/MOB System


• Icom M505 DSC VHF


• Hydraulic Power Steering


• Triple Windscreen Wipers


• Electronic Single Lever Controls for Engines and Gearboxes


• Bowthruster Controls


• Raymarine ST60 Tridata System


• Raymarine ST6001 Autopilot Control


• Helm position indicator plus full engine instrumentation + gauges


• Remote Anchor Winch Controls


• Chart table and Light/Stowage


• Control panel for generator


• Switches for Navigation and Riding Lights


• Windscreen Wipers


• Bilge Pumps and Engine bay extractor fans


• External PVC sunblinds to windscreen


• Stereo Radio/CD Player


• 12v point for Mobile phone


• Raymarine RAY 430 Foghorn with siren and Loudhailer facility

UPPER HELM

Access via stairway from Saloon bridge deck and by stainless steel ladder with solid teak steps from cockpit.

• Glazed door to Internal Stairway


• Hydraulic Power Steering


• Electronic Single Lever Controls for Engines and Gearboxes


• Duplicate Engine Instruments


• Bowthruster Controls


• ICOM HM162E DC VHF


• Command Mic


• Remote Anchor Winch Controls


• Raymarine E80 Multifunction Display: Radar/Chart/Sounder/Camera


• Raymarine ST6001 Autopilot Control


• Compass


• Helm Position Indicator


• Trim Tab and Searchlight Controls


• Echo Sounder and Speedometer/log repeaters with Sea temperature read-out


• Double Helm Seat


• Integral Fridge Unit


• Central Griddle


• Sink with Hot and Cold Water


• Single Co-Pilot Seat


• Large J-shaped Upholstered Dining Area


• Stainless Steel Guardrails and Grabrails


• GP Arch Supporting radar Antenna and Nav. Light Mast


• Glove Locker


• Covered Chart Table


• Moulded Slip-Resistant Floor Surface


• Moulded Perspex Wind-Deflecting Screen with Full Grab Rail.


• Twin Dome TV + Matching Dome

ACCOMMODATIONS

Aft Cabin Fit out.

• Ocean Air Blinds to lower helm windows together with blind to side access door.


• Additional curtain to starboard cabin and port


• Additional port hole to Galley


• Part Overlay Carpets


• Carpet Sections to floor and steps to upper helm


• Soap Dispensers and Towel holders fitted to bathroom.


• Sockets were fitted to bathing platform to accommodate Dinghy Chocks.


• Various Bedlinen available from Heirlooms (by separate negotiation)


• Additional Handrails to Flybridge

INTERIOR FURNISHINGS

Fully co-ordinating carpets, upholstery and curtains

Highly crafted joinery and wall panels in Satin Lacquered American Cherry and Eucalyptus.

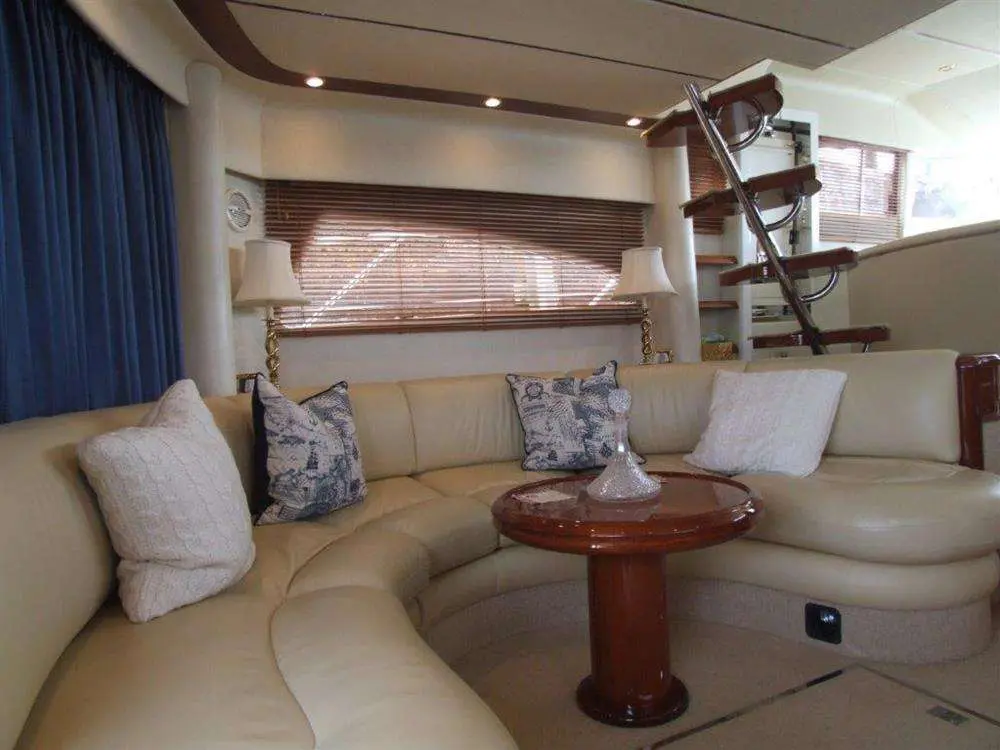

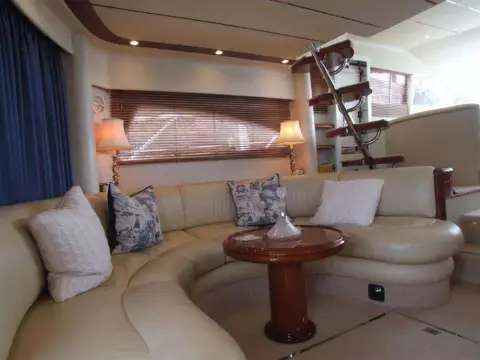

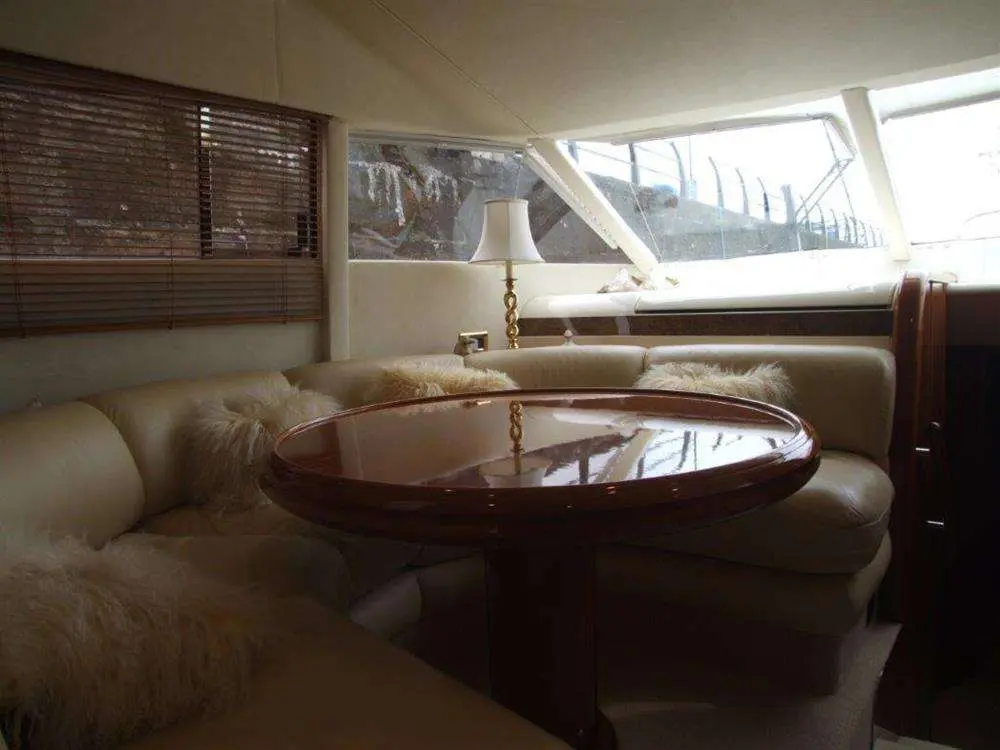

MAIN SALOON

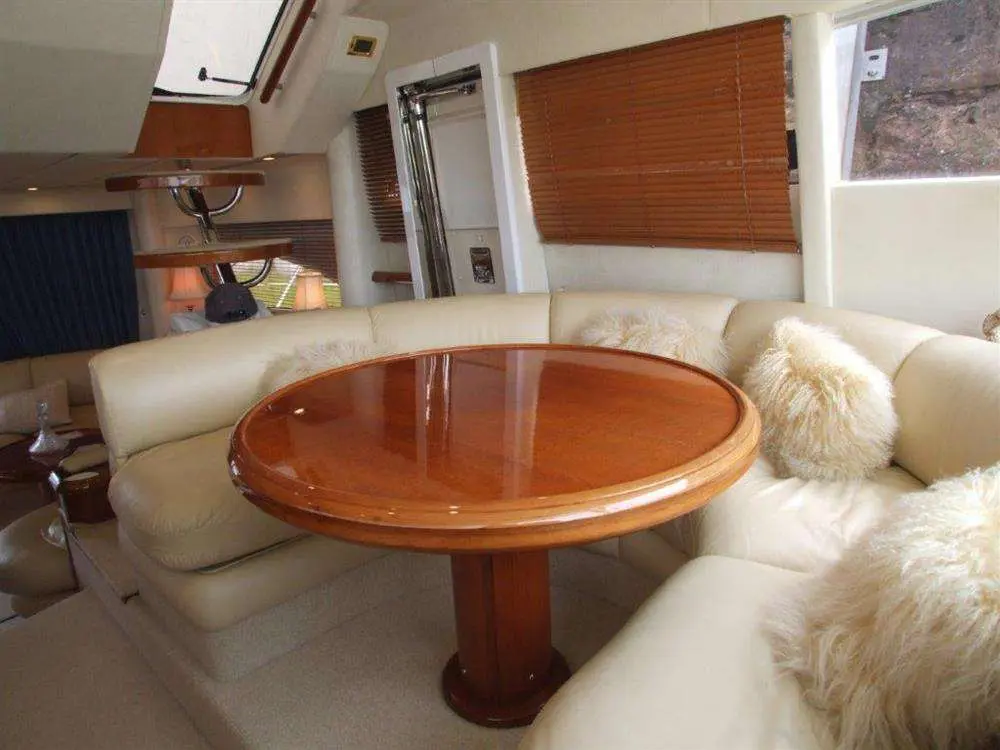

• Semi circular upholstered settee with storage under


• Low Table

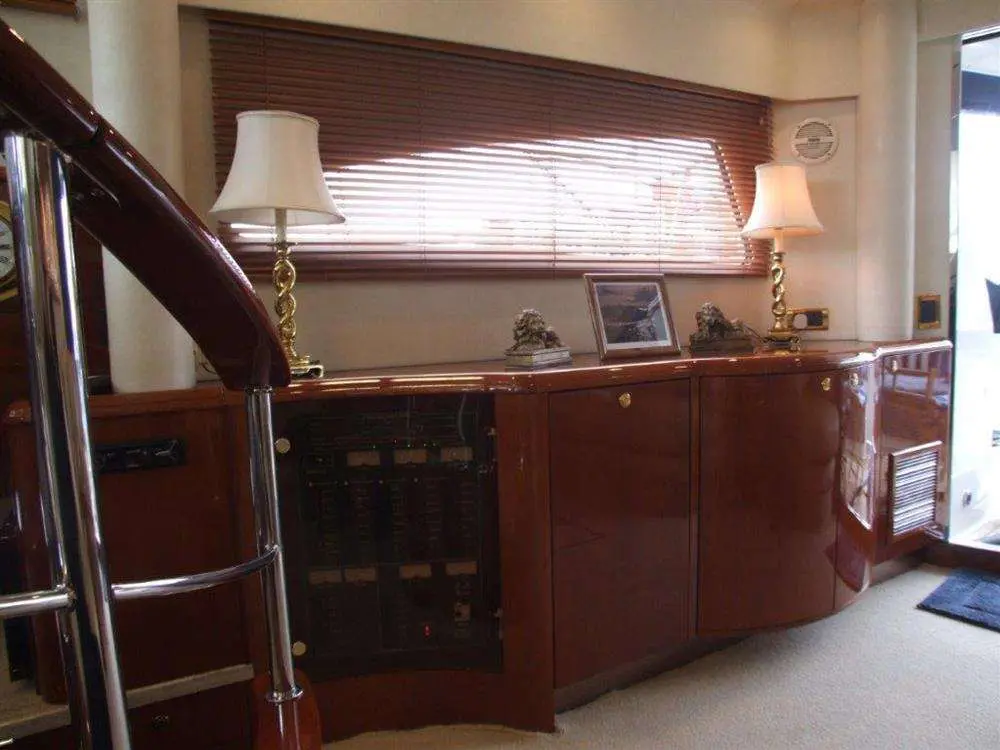

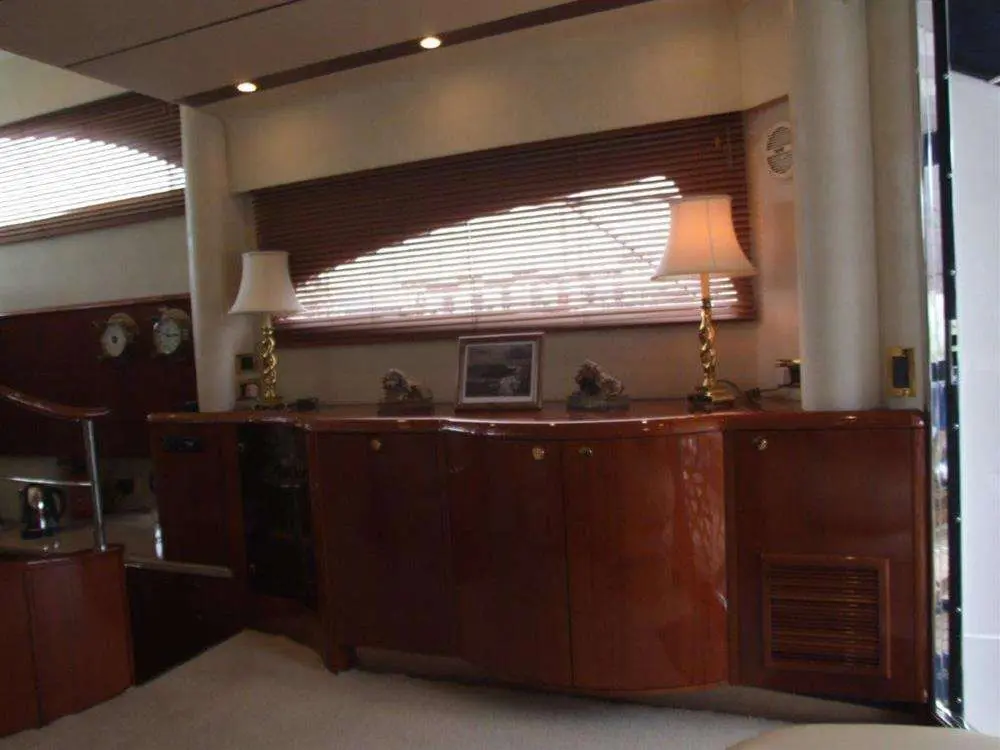

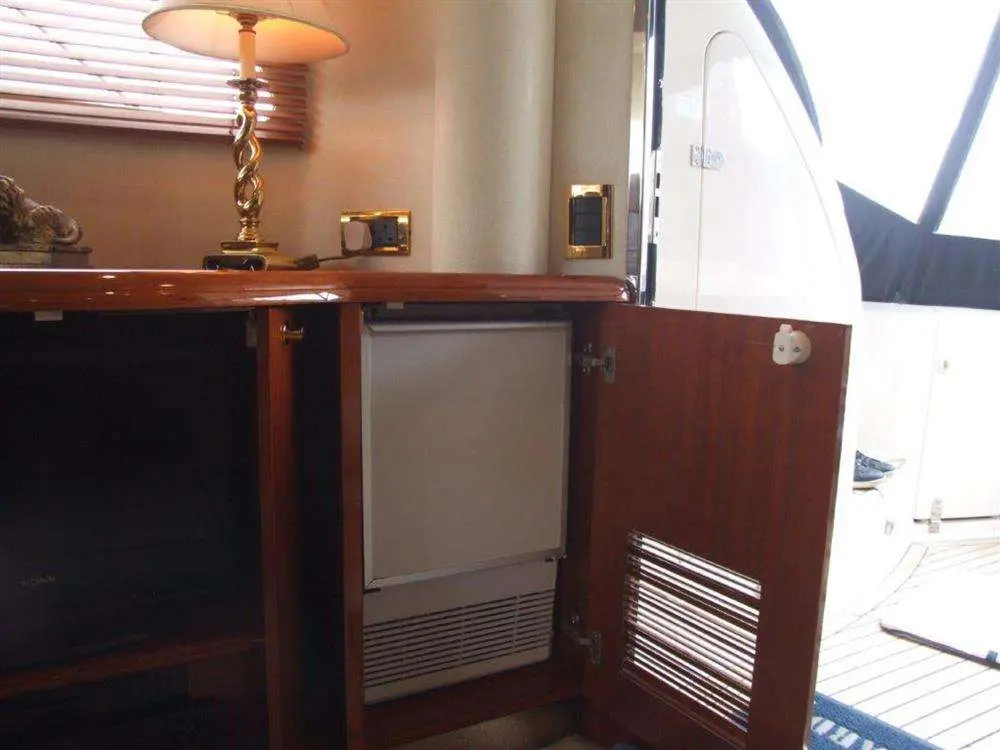

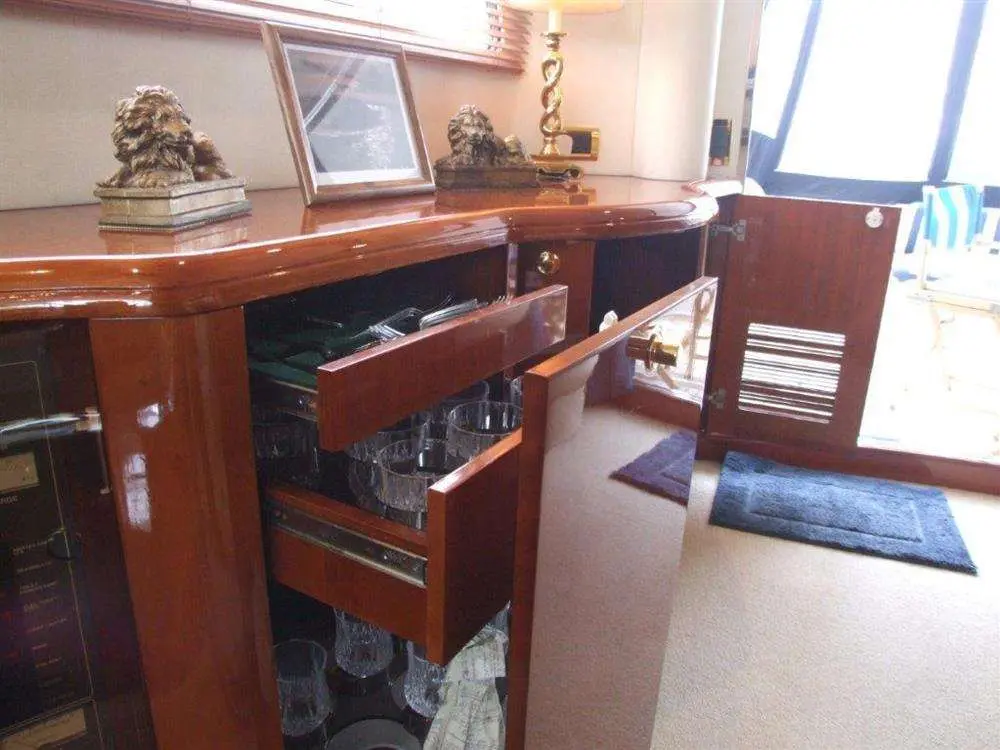

• Sideboard (incorporating Bar Unit; Cutlery Unit; Ice-maker and control panel for 12/24/240v domestic electrical circuits)

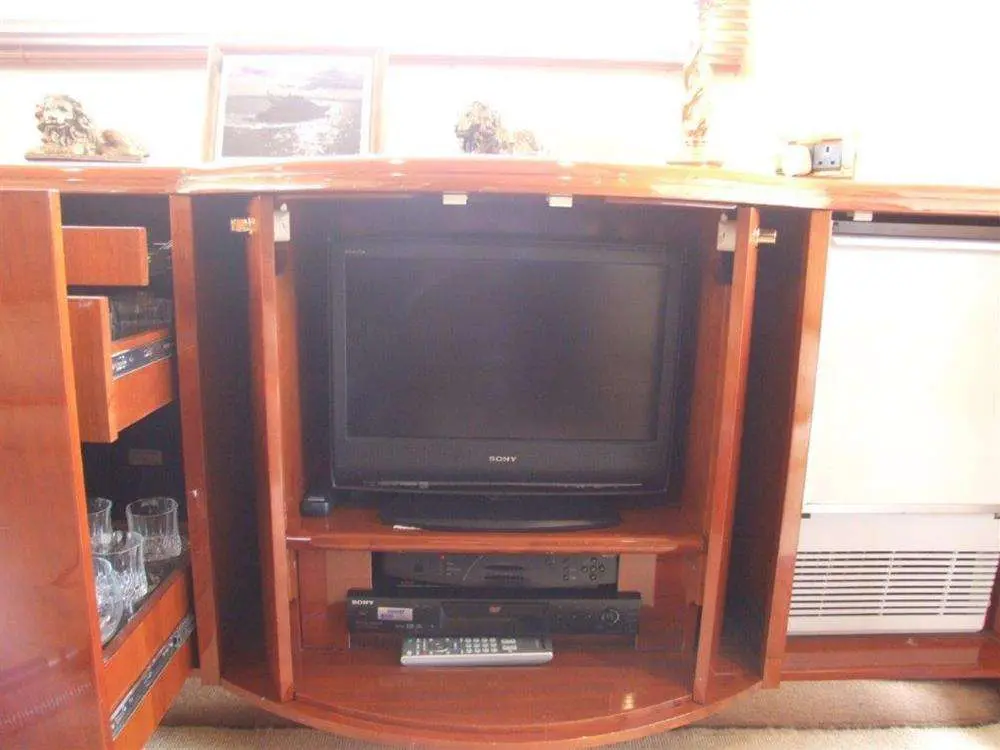

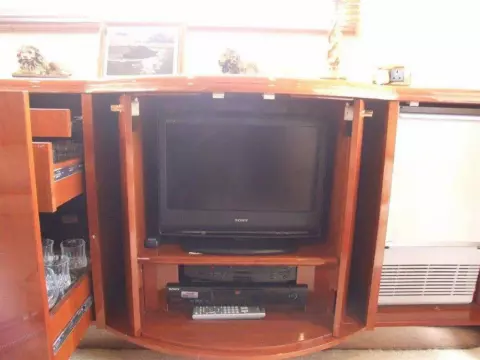

• Sony Flat Screen TV & DVD Player


• Stainless Steel curved framed patio door to aft cockpit


• Stereo Radio/CD Player


• Tinted Glass to side windows


• Additional 240V Power Points


• Halogen Lighting


• Access hatch to engines

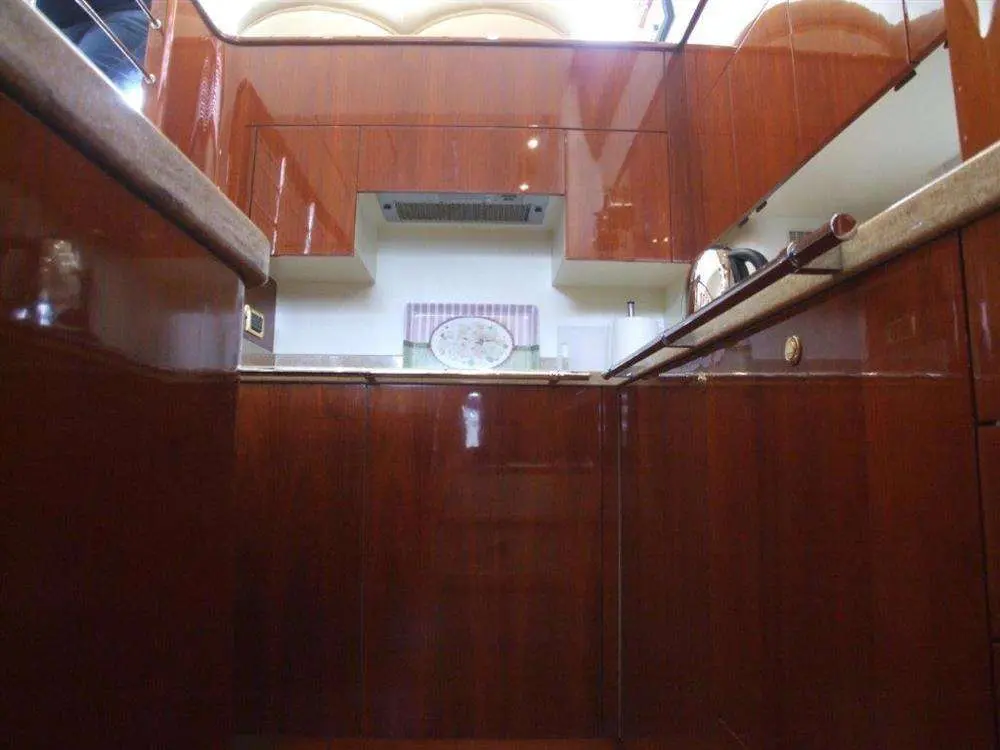

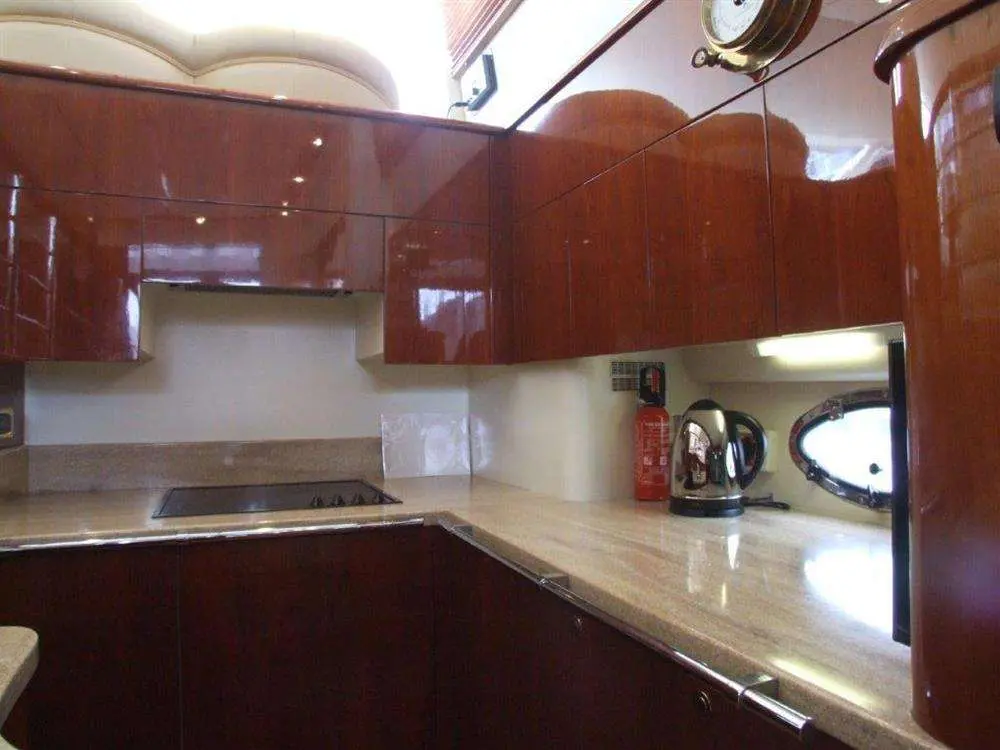

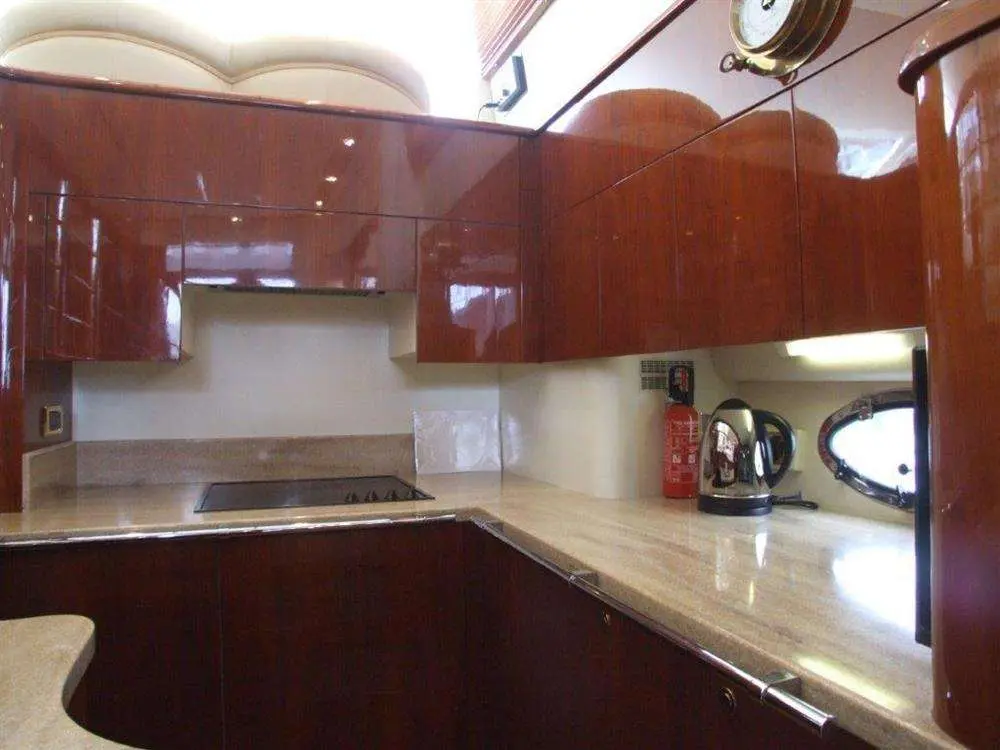

GALLEY

• 4 Burner Electric Ceramic/Halogen Hob


• Microwave/Conventional Grill Oven Unit


• Refrigerator/Freezer


• Twin Sinks with hot and cold mixer tap


• Avonite Worktop with Grabrail


• Concealed Lighting


• 240V Power Points


• Fire Extinguisher


• Storage Cupboards and Drawers


• Extractor Fan


• Extra Galley Port Hole


• Squadron Crockery

UTILITY ROOM (ACCESS FROM GALLEY)

• Work Top with Stowage


• Clothes Washer/Drier


• Refrigerator/Freezer


• Pull-out Ironing Board


• Storage Cupboards


• 240V Power Point


• Access to Engine Room

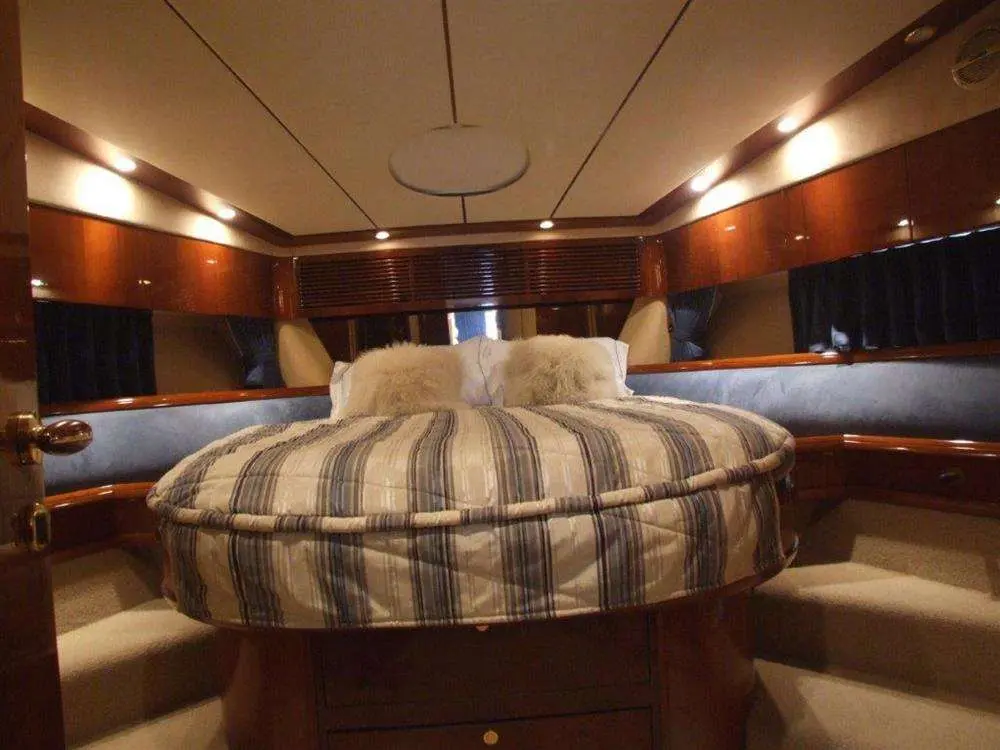

MASTER STATEROOM

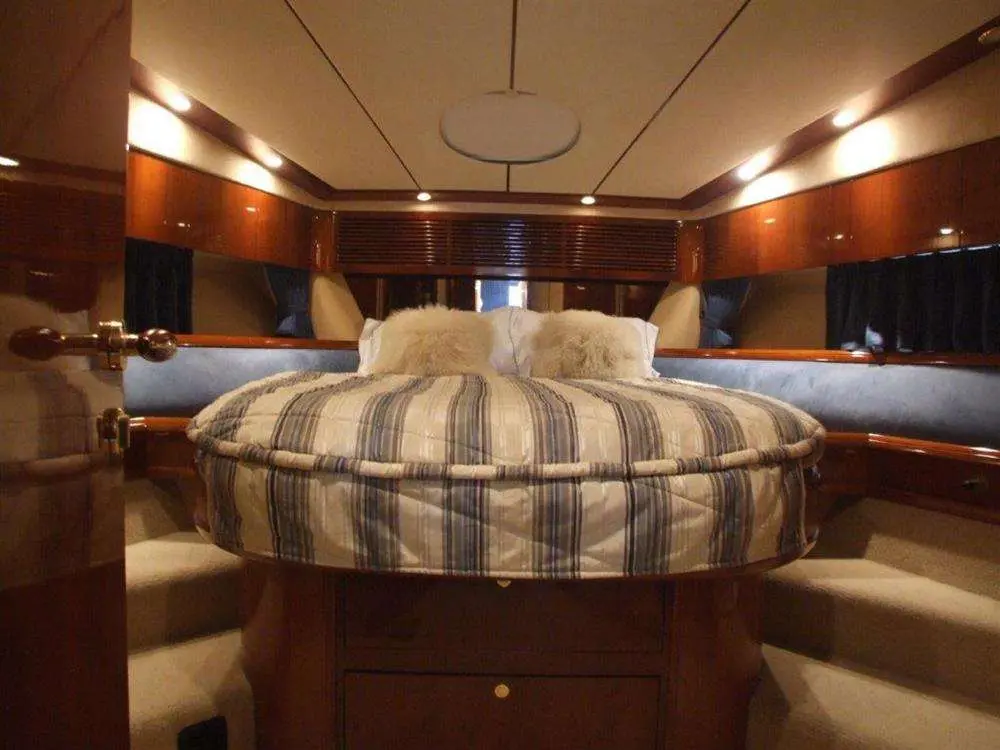

• King Size (6'6" x 5'4") double bed with interior sprung mattress


• Upholstered Bedhead


• Twin Wardrobes with Interior Lights


• Drawers under the bed


• Halogen ceiling and reading lights


• Hatch with flyscreen to foredeck


• Twin opening portholes with flyscreens


• Full length Mirror


• Access to En Suite Shower/Toilet


• Stereo radio/CD Player


• 2 x twin 240V Power Points


• (Selection of designer tailor made fitted bedding (never used) available if required)

PORT AND STARBOARD GUEST CABINS

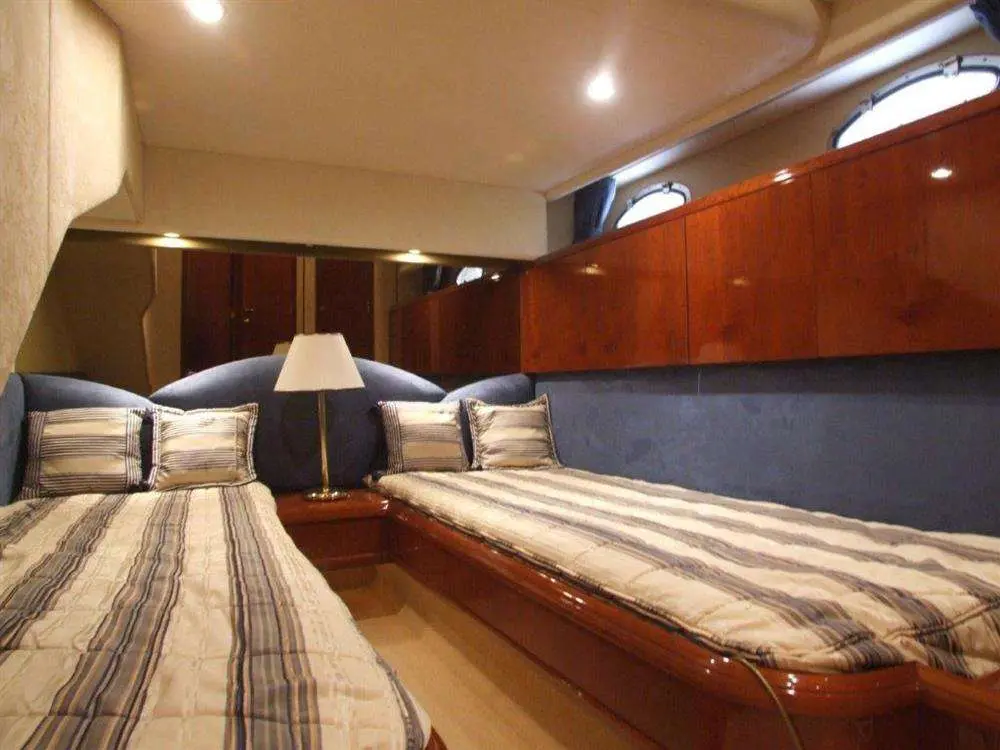

• Twin 6'8" Single Beds with Interior sprung mattresses


• Bedside table & Lamp


• Wardrobe with Interior Light


• Twin opening portholes with flyscreens


• Halogen ceiling and reading lights


• 2 x single 240v power points

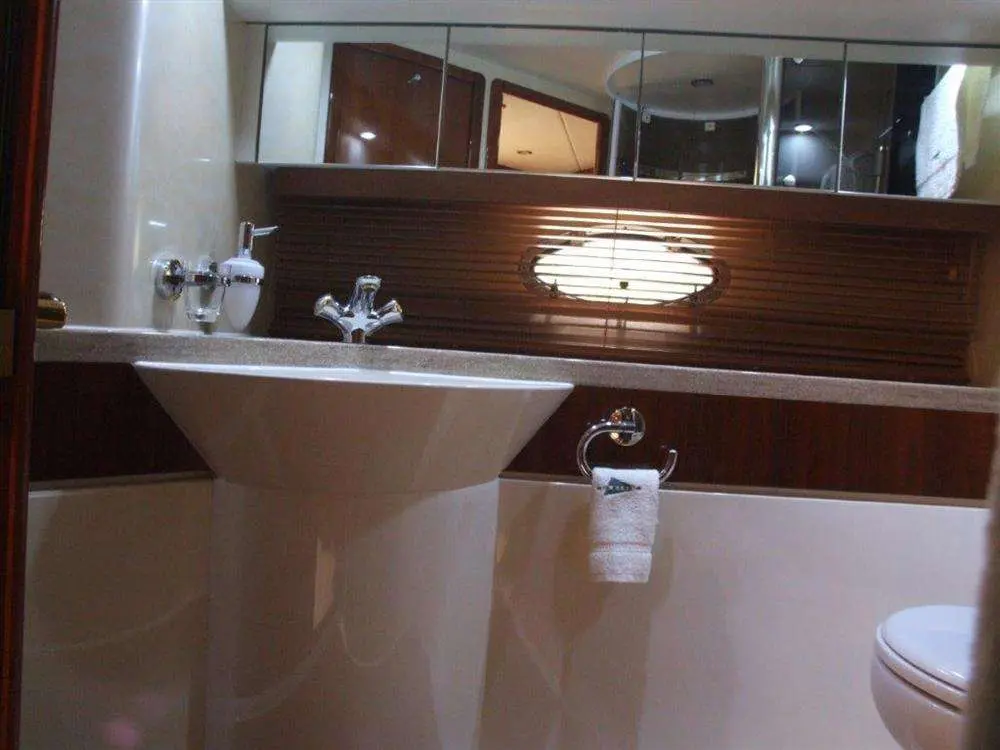

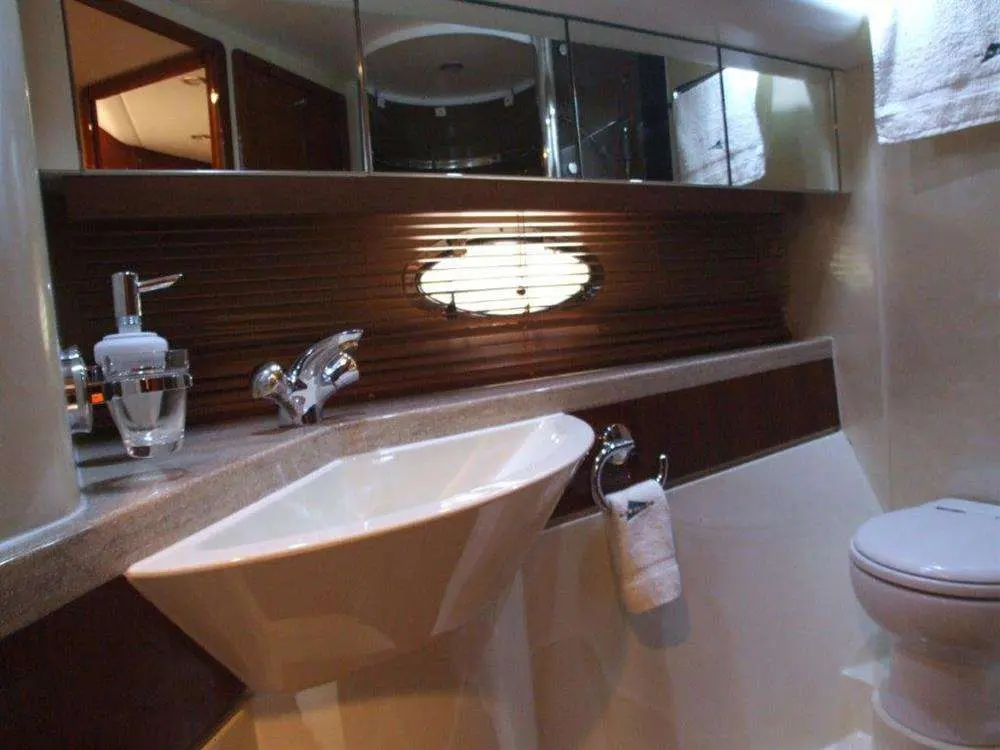

EN SUITE AND GUEST TOILET/SHOWERS

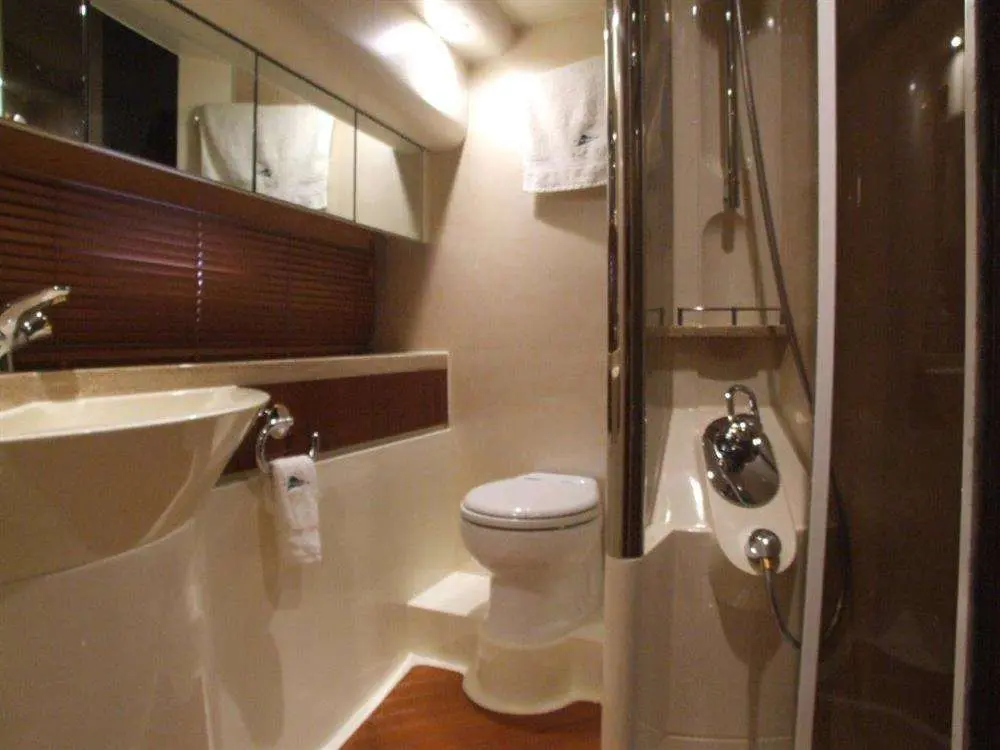

• Circular separate shower unit


• Automatic shower tray pumpout system


• Freshwater vacuum flush toilet with seacocks to outlet

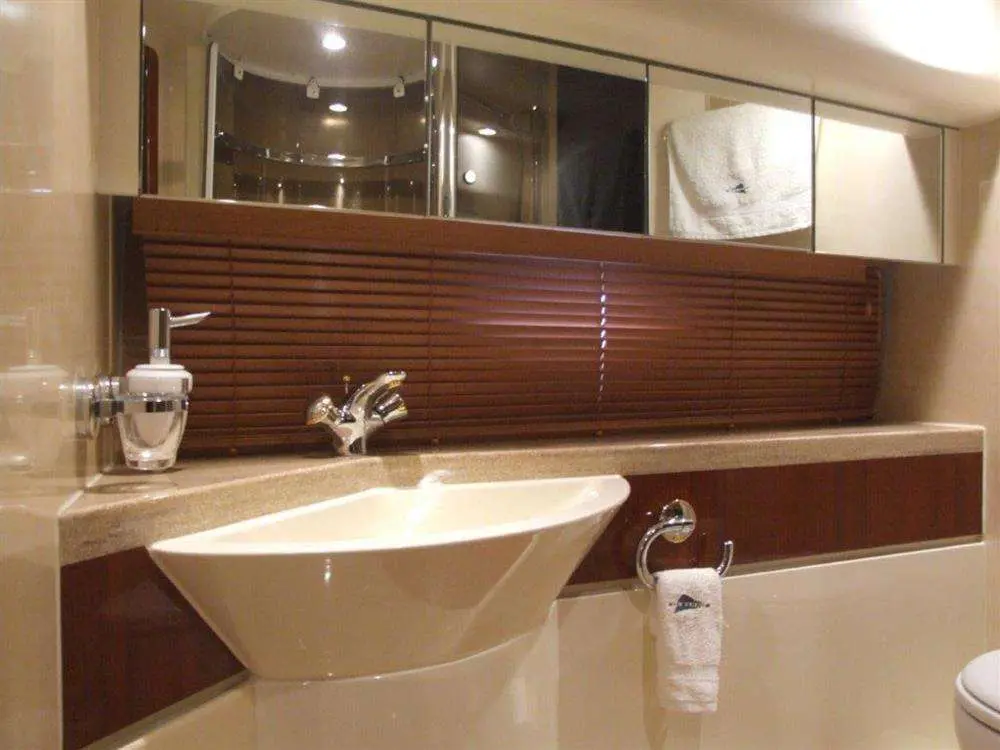

• Avonite Vanity unit with wash basin and hot and cold pressurised water


• Opening Stainless Steel porthole with flyscreen


• Mirrored high level lockers


• Halogen Lighting


• 240V Shaving Point


• Complete set of Bathroom Fittings

AFT CABIN

• Twin single berths


• Wash room with toilet and handbasin


• Stowage Space


• Twin Opening Portholes with Flyscreens


• Fire Extinguisher


• Halogen Lighting

NAVIGATION EQUIPMENT

• Raymarine E02013 E120 12.1" Colour Display


• Raymarine E02011 E80 8.4" Colour Display


• Raymarine E32042 RAY125 GPS Sensor


• Raymarine 4KW 24" Radome


• Navionics Chart


• 2 x Raymarine E03006 CCTV PAl Camera


• Raymarine E15016 S3G Autopilot with 2 off ST6001 Displays


• 2 x Colour 10M IR Camera


• KUH Track Vision 4 Satellite TV System with Matching Dome


• Raymarine Lifetag MOB System with 2 Lifetags


• DM300G FishFinder


• Raymarine RAY430 Loudhailer System


• ICOM M505 DSC VHF with Command Mic on Flybridge
