Absolute Navetta 70

ABSOLUTE NAVETTA 70
THE ABSOLUTE ALLURE
The perfect combination of Italian style, functionality and safety.

Approved Boats are the official Distributor for Absolute Yachts in the UK, Ireland & Channel Islands

Contact us for the latest price and availability

Absolute Navetta 70

Engines
Volvo Penta Engines: 2×D13-IPS1350 (2×735 Kw)

Standard Equipment

Deck
Stainless steel stempost protection.
Stainless steel deck apparel.
Pair of mooring bollards and fairleads at the stern and bow with cleats
(four) in the middle length of the side.
Bollards at the stern for crossing lines.
Protective raised gunwale.
Side walkways handrail in white colour fiberglass.
Solid teak-covered floor.
White colour deck and deckhouse.
Windscreen and side windows screens.
Synchronised retractable windscreen wipers (three) with washer.
Shaped ship hull in white colour with glass windows.
Fuel loading from both sides with protective cover and fuel sump pit with anti backflow system.
Mooring lines (four).

Bow
Stainless steel railing.
Wide bow area for mooring with solid teak-covered floor.
Sunpad in sky in quick drainage foam with adjustable backrests (four), glassholders and glove compartments.
U-shaped sofa with quick drainage foam cushions in sky.
Storage compartments under the sofa.
Loudspeakers with remote control and local volume adjustment for sound system connected with the radio on the Flybridge.
Storage compartments for fenders with fenders and their Absolute customized covers (eight).
Anchor winch with thermal protection at local restoration, with 80kg (176lbs) galvanised anchor and 100m (328ft) zinc-plated chain.
Local anchor winch control with chain counter.
Bow anchor roller in stainless steel with support plate for safety cable.
Self-draining anchor chain locker with hatches (two) for inspection and round fenders (two) in housing with Absolute customized covers.
Stainless steel protections for the mooring lines.
Side walkways with solid teak floor.
Safety mooring kit.
Life ring in housing under the sunpad.

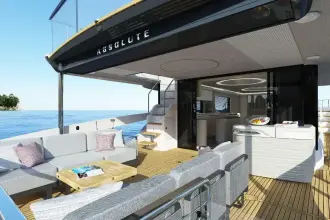

Cockpit
Wide terrace that can be furnished with TF terrace atmosphere modules (option).
Rear railing in impact-resistant laminated glass with stainless steel handrail and chassis.
Ceiling made of sky coated panels.
Dimmable ceiling lights.
Loudspeakers with remote control and local volume adjustment for sound system connected with the radio in the salon.
Aft mooring winches (two) with foot switch.
Storage compartments for mooring lines.
Storage compartment under the flybridge access stairway.
Solid teak floor.
Courtesy lights.
Boat hook in housing.
Direct access to the engine room.
Side access doors in fiberglass.
Cockpit access doors in stainless steel and glass with logo.
Ladders (two) for descent and ascend the platform in solid teak.
Direct water connection to shore line in compartment with door.
Shore power sockets (two) and cables in compartment with door.
Handshower in compartment with door.
Crew cabin access.
Crew cabin aft window.

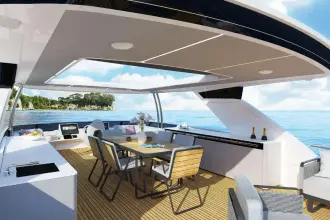

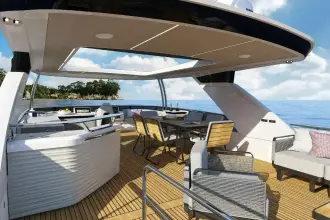

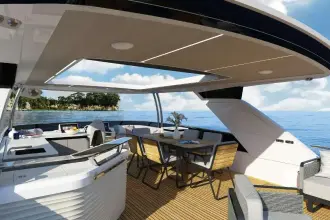

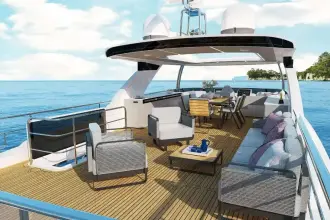

Flybridge
Flybridge access stairs from the cockpit with solid teak steps, stainless steel handrails and courtesy lights.
Flybridge access with hatchway railing.
Sofas (two) in sky in quick drainage foam at the sides of the instrument panel.
Storage compartments under the sofas.
Dining area with teak table with metal structure for six people and chairs (six) with covers.
Piece of furniture on port side with LED strips lighting, sink with folding mixer tap, waste bin, stainless steel fridge, BBQ, Corian® countertop, compartments with doors, stainless steel handrail, watertight socket (230V - 50Hz) and cover.
Floor on a single level, no steps.
Solid teak-covered floor for the bow area.
Side wall storage compartments (two, one to port and one to starboard).
Loudspeakers for radio.
Aft area that can be equipped with TF terrace atmosphere modules or sunbathing loungers (option).
Certified impact-resistant laminated rear glass balustrade with stainless steel handrail.
Courtesy lights.
Storage compartments for life-raft (two).

Technical Equipment
Mediterranean inverter air conditioning (50Hz) for upper and lower deck, equipped with fan coil with selector valve and soundproofed chiller.
Couple of 19kW+19kW ca. generators (230V-50Hz), each equipped with fume and water separators and prefilters for engines fuel with cartridge and water separator.
Soundproofing base for genset.
Dedicated automatic chargers for service, engine, generators and thrusters (if present) batteries.
Service batteries chargers 100A - 50Hz (two).
Inverter (two) 3.000W (230V - 50Hz).
Galvanic isolators.
Volvo ACP anti-corrosion kit.
Aluminium sacrificial anodes for salt water.
Automatic smoke damper shutters for air intakes closure in the engine room.
Fire-fighting system with ecological gas NOVEC1230 with automatic engine and generator stop.
Air intakes in the engine room with air/water separating grids.
Smoke detection system in main deck, lowerdeck, engine room and crew cabin with alarm siren.
Portable fire extinguishers distributed in every room.
No. 2 interconnected stainless steel fuel tanks with double fuel filler neck for high-pressure refuelling, with level indicator.
Double pre-filters for engines fuel with water presence sensor and acoustic signaling on dashboard.
Stainless steel fresh water tank externally painted on the outside with insulating material.
Electric bilge pump for fluid suction.
Sea water plumbing made of materials that prevent the spread of flames.
Sea dumping collected in wall manifold.
Double hot and cold domestic water distribution system with individual centralised shut-off valves.
Water heaters (two), one of them dedicated to the bow master cabin.
Volvo Interceptor Active trim tabs.
Clear wake exhaust bypass.
Propeller rope cutters.
Blackwater tanks (three).
Soundproofing engines room covering made of materials that prevent the spread of flames.
Inspectionable integrated deck and hull structure.
Engine room with wide passages.
Black self-polishing antifouling (propellers not included).
Electrical set-up at stern for installation of illuminated yacht name.
Italian flag.
Boat operation (services + air conditioning) with a single dockside cable.

Instrument Panels

Main deck Instrument Panel
Black dashboard with integrated 24” GPS touchscreen display with monitoring system, flush-mounted devices and decorative blue lights.
Touch screen Volvo EVC.
Volvo diagnostic socket.
Manoeuvring Joystick.
Volvo Software Package (cruise control, trip computer, low speed, single lever).
Compass on the wall.
Electronic adjustable wheelhouse.
Autopilot.
VHF with DSC function with emergency power supply.
Anchor windlass control with chain counter.
Manually adjustable driving seats (two) made of anthracite grey colour leather, with footrest.
Storage cabinet underneath the driving seats.
Windscreen wiper control display.
Seating area next to the dashboard.
Double USB socket (connector type A+C).
Leather steering wheel with stainless steel spokes.
Electrical window on port side.
Starboard side walkway access via manual door.

Flybridge Instrument Panel
Manually height-adjustable plexiglass wind deflector.
Ergonomic dashboard with anti-glare viewing angle.
22” GPS display integrated with monitoring system.
Touch screen display Volvo EVC.
Manoeuvring Joystick.
Package Software Volvo (cruise control, trip computer, low speed, single lever).
Compass.
Electronic adjustable wheelhouse.
Autopilot.
VHF with DSC function with emergency power supply.
Anchor windlass control with chain counter.
Sliding driving seat with fixed leg, flip-up bolster and cover.
Dashboard cover.
Glove compartment with lid.
Glassholders (two).
Double USB socket (connector type A+C).
Water-resistant leather steering wheel with stainless steel spokes.

Electronic Equipment
Basic electronic instruments and monitoring system.
Radar with solid state technology.

Sound - Video
Digital terrestrial TV antenna with TV antenna connection cables, satellite wiring and HDMI connection cables.
Electrical TV lift mechanism in the salon.
In the salon, Radio Stereo with optical digital input for connecting the radio to the TV, with USB socket and
Bluetooth connection, connected to two loudspeakers in the salon and two loudspeakers in the cockpit, with independent volume control and party mode function.
In the flybridge dashboard, Radio Stereo with USB socket and Bluetooth connection, with independent volume control in the flybridge and in the bow area, with party mode.

Galley and electrical household appliances
Salon access door with two sliding doors in smoked crystal.
Manual fabric curtains for sliding door.
Countertop made in Atlas material with Calacatta marble nuances.
Drawer with cutlery for eight people in dedicated housing.
Pantry, pots and pans housing with glossy creme-coloured lacquered doors.
Set of crockery, personalised with Absolute logo for 8 people, in dedicated housing.
Piece of furniture with housing for plates and cups for eight people.
Piece of furniture with glassware for eight people.
Steel sink and faucet with pull out sprayer.
Stainless steel waste bins (two) with Atlas material lid, flush-mounted in the countertop.
Miele electrical household appliances: combined microwave/traditional oven, induction cooktop with four hobs, dishwasher, fridge column and freezer (powered by inverter) with safety closure handles and hempcoloured glossy lacquered doors.
Miele exhaust hood.
Countertop with lights.
Window with manual venetian blind.
Fixed glass for division between galley and sofa area.
Natural woven oak floor.
Washing machine - tumble dryer and fridge in crew cabin.

Main Deck
Light oak furniture with matt finishing.
Three seater and two seater sofas in “Chalk” colour fabric.
Piece of furniture with dark leatherette top and light matt varnished top frame, with doors with matt finishing.
Dining area on starboard side equipped with table with laminate surface with a dark matte finish and steel legs with electric sliding to starboard, no. 6 dining table chairs in “Chalk” colour fabric.
Side windows without in-between pillars.
Manual aluminium venetian blinds in the salon.
Natural woven oak floor on a single level.
Side walls covered in light oak.
Division from the main deck helm with light reed-finish separator.
Light colour switch plates and switches.
Stairs to the lower deck with stainless steel handrails covered by anthracite colour leather.
Ceiling with circular patterns.
Dimmable ceiling lights and spots.
“Welcome on board” lighting scenario with dedicated control.

Lower Deck

Lower deck companionway
Courtesy lights and decorative ceiling lights.
Staircase access from salon to lower deck with anthracite colour leather-covered stainless steel handrails.
Piece of furniture with light leatherette top and matte varnished light top frame, for wine cooler (option) housing, with mirror and lighting.
Easily inspectable main switchboard.
Natural woven oak floor.
Walls coated in light fabric.
Spacious walk-in wardrobe located underneath the master cabin with large cabinet w
